Efitment E005 User Manual

Magnetic elliptical bike
Hide thumbs

Advertisement

Quick Links

Download this manual

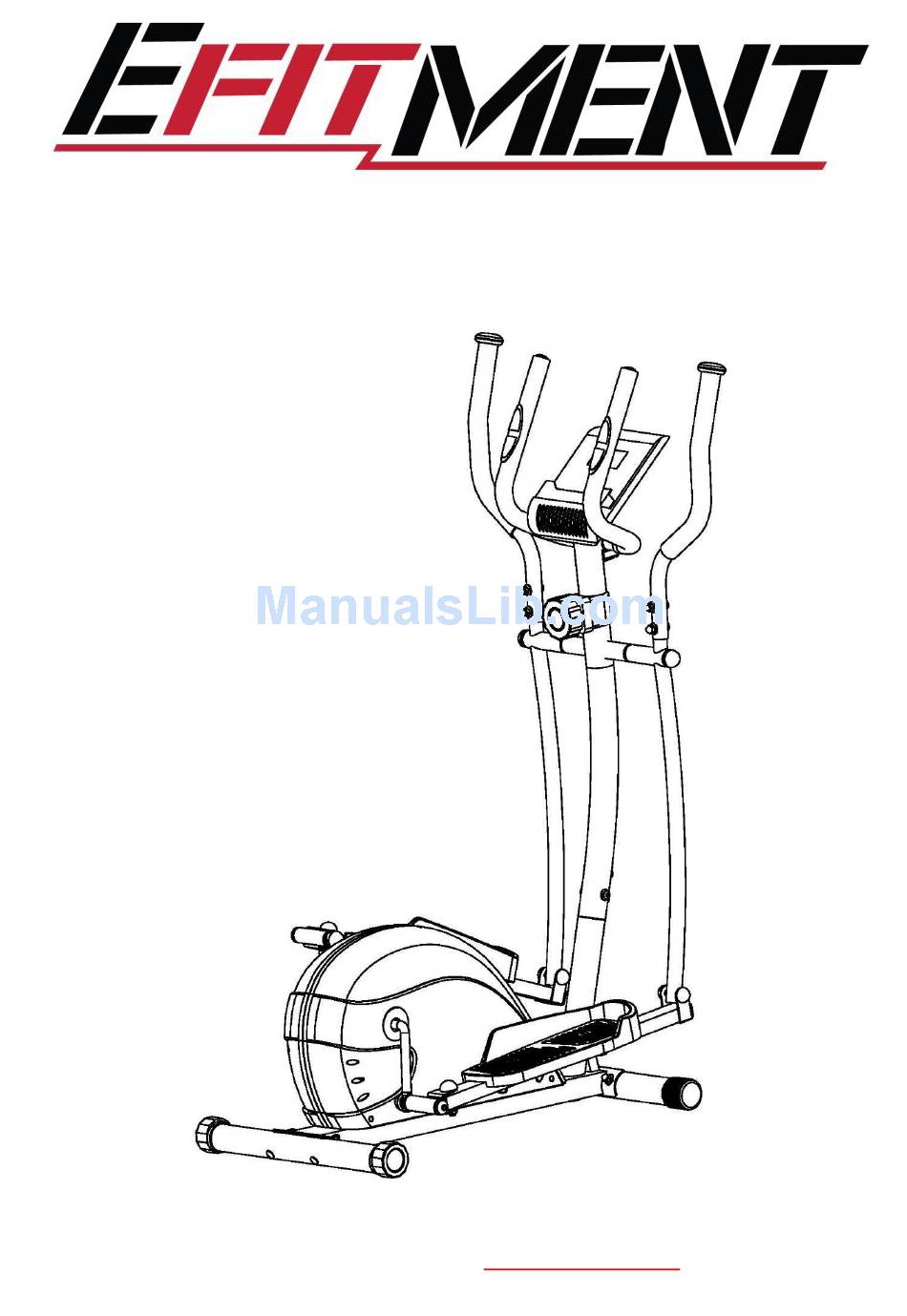

E005 MAGNETIC ELLIPTICAL BIKE

USER MANUAL

IMPORTANT! Read all instructions carefully before using this product. Save this user manual
for future reference. For customer service, contact:
service@efitment.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the E005 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Efitment E005

Summary of Contents for Efitment E005

  • Page 1: User Manual

    E005 MAGNETIC ELLIPTICAL BIKE USER MANUAL IMPORTANT! Read all instructions carefully before using this product. Save this user manual for future reference. For customer service, contact: service@efitment.com...
  • Page 2 IMPORTANT SAFETY NOTICE Note the following precautions before assembling and using the machine. 1. Assemble the machine exactly as described in the instruction manual. 2. Check all the bolts, nuts and other connections before using the machine for the first time to ensure the machine is in the safe condition.
  • Page 3 EXPLODED DIAGRAM...

  • Page 4: Table Of Contents

    PARTS LIST DESCRIPTION DESCRIPTION Main frame Hex bolt Handlebar post Flat washer Front stabilizer Nylon nut Rear stabilizer Cap S17 5L/R Pedal tube Hex bolt Handrail arm 38L/R Pedal bolt 6L/R Powder metal bushing 2 7L/R Handlebar Stationary Handlebar 40L/R Pedal tube link Computer Spring washer 10L/R Pedal...
  • Page 5 HARDWARE PACKAGE...

  • Page 6: Main Frame

    ASSEMBLY INSTRUCTIONS STEP 1. Attach the Front and Rear Stabilizers (3, 4) onto the curve plates of Main Frame (1) with the Carriage Bolts (12), Curve Washers (13), and Cap Nuts (14).

  • Page 7: Connection Wire

    STEP 2. Check the Tension Controller (17) is at Level 1 (lowest resistance) to ensure the cable is the longest. Put the cable end of resistance cable of Tension Controller (17) into the spring hook of Tension Cable (19). Pull the resistance cable of Tension Controller (17) up and force it into the gap of metal bracket of Tension Cable (19) as shown in the drawing of figure.

  • Page 8: Crank

    STEP 3. NOTE: The Right and Left Pedal Bolts (38R/L) are marked with “R” & “L”. The Right Pedal Bolt (38R) should be turned clockwise to tighten. The Left Pedal Bolt (38L) has reverse threading and should be turned counterclockwise to tighten. In order to install the Right and Left pedal bolts (38R/L) easily, you can move the Crank (22) in order to choose a good location for inserting the Right and Left Pedal Bolts (38R/L) 1.

  • Page 9: Stationary Handlebar

    STEP 4. Attach the Pedal (10L/R) to the Pedal Tube (5L/R) with Hex Bolt (33), Flat Washer (34) and Nylon Nut (35). STEP 5. Thread the Pulse Wire (50) from the hole of handlebar clamp and guide it out of the computer bracket.

  • Page 10: Flat Washer

    STEP 6. Insert the Right Handlebar (7R) onto the Right Handrail Arm (6R). Secure with the Carriage Bolts (45), Curve Washers (44) and Cap Nuts (14). Then attach the Left Handlebar (7L) to the Left Handrail Arm (6L) in the same way. STEP 7.
  • Page 11 Moving the Bike To move the elliptical, hold by the handles of the Stationary Handlebar (8). Tilt the elliptical until the wheels of the Front Stabilizer (3) touch the floor. Then you can wheel the elliptical to the desired location.
  • Page 12 EXERCISE COMPUTER INSTRUCTIONS SPECIFICATIONS: TIME……………………………………………………….00:00-99:59 SPEED(SPD)..………………………………………… 0.0-99.9ML/H DISTANCE(DIST)………………………………………0.00-999.9ML CALORIE(CAL)…………………………………………0.00-9999KCAL ODOMETER(ODO)…………………………..………0.0-9999ML PULSE (PUL) ……...........0，40~240BPM KEY FUNCTIONS: MODE: Press to select a function SET: Press to preset value for “TIME”, “DISTANCE”, “CALORIES”, or “PULSE”. CLEAR(RESET): Press to clear the value OPERATION PROCEDURES: 1.
