Big Dipper LP002 User Manual

R
LED PAR Light User's Manual
Big Dipper
Attention
1.Please read these operating instructions carefully to familiarize you with basic operations
of this unit BEFORE USE.
2.Without permitted, it is prohibited to spread the contents of this manual to others.
3.This manual is only to provide related information, and the contents of this manual will
be changed at any time without notice.
4.Unless the instructions have already stated, please do not freely modified the unit.
Safety Tips
1. Before installation and maintenance, please confirm the power is OFF. make sure that the
ventilation around the unit is good.
2.The lighting is designed for indoor demonstration, please do not use this product in a wet
environment for long-term.
3.The use and maintenance of this unit should avoid contact with water. when using it outdoor,
please take waterproofing measures.
4.Personnel, who to take the installation, operation and maintenance, must be familiar with
the lighting performance. Most of the damage is resulted from unfamiliar with its performance.
5.Please do not face up to the luminous unit for a long time, so as not to cause discomfort to
your eyes.
6.Please often wipe the unit with a clean cloth.
Operation Instructions
MANU Numerical
Description
CC
Colors transition, change speed by UP and Down
1-99
CP Colors shade, change speed by UP and Down
DEOO Auto-play mode
1-99
BEBE
Sound control mode
R001-255
Red color brightness setting, change brightness by UP and Down
G001-255 Green color brightness setting, change brightness by UP and Down
B001-255 Blue color brightness setting, change brightness by UP and Down
D001-D512
DMX mode, change numerical value by UP and Down
Note: "MENU" is the Function Transforming Button, "UP & Down" is the No. Transforming
Button, "ENTER" is the Confirming Button.

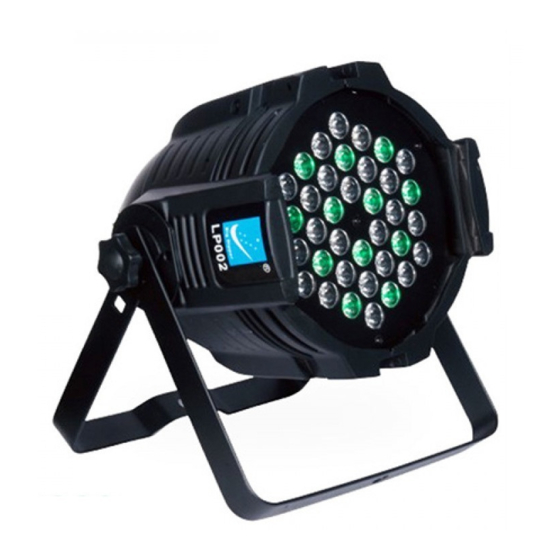

Model:LP002
3X36W/12R 12G 12B
Light source
Rated 100,000 hours
Source lifetime
100-240V/50-60HZ
Power supply
120W
Rating power
Auto/Sound/DMX/Master-slave
Play mode
7
DMX channel
Color change, Strobe
Effect
255×255×365mm
Dimensions
2.7KG
N.W.
Safety guide DMX Control
（Last radix point flickers on digital display board when has DMX signal）
Channels Numerical Function
CH1 1-255
R、G、B or mixed color brightness control
use together with CH5, CH6 or CH7)
CH2 1-255
Strobe flash, speed adjustable.
together with CH5, CH6 or CH7)
0-10
All light off
CH3 11-50
Select colors by manual
51-100
Colors transition automatically
101-150
Colors shade automatically
151-200
Colors pulse transform automatically
201-255
Sound mode
CH 4 1-255
Select colors when CH3 at 11-50
0
Red light off
CH5 1-255
Red brightness from dark to bright
0
Green light off
CH6 1-255
Green brightness from dark to bright
0
Blue light off
CH7 1-255
Blue brightness from dark to bright)
Master slave mode: connect by DMX cable, D001 mode is slave light while the first
light is master one.
(This channel should
(This channel should use
Big Dipper Laser Science And Technology Co., Ltd
