Summary of Contents for Big Dipper Seven Stars K320

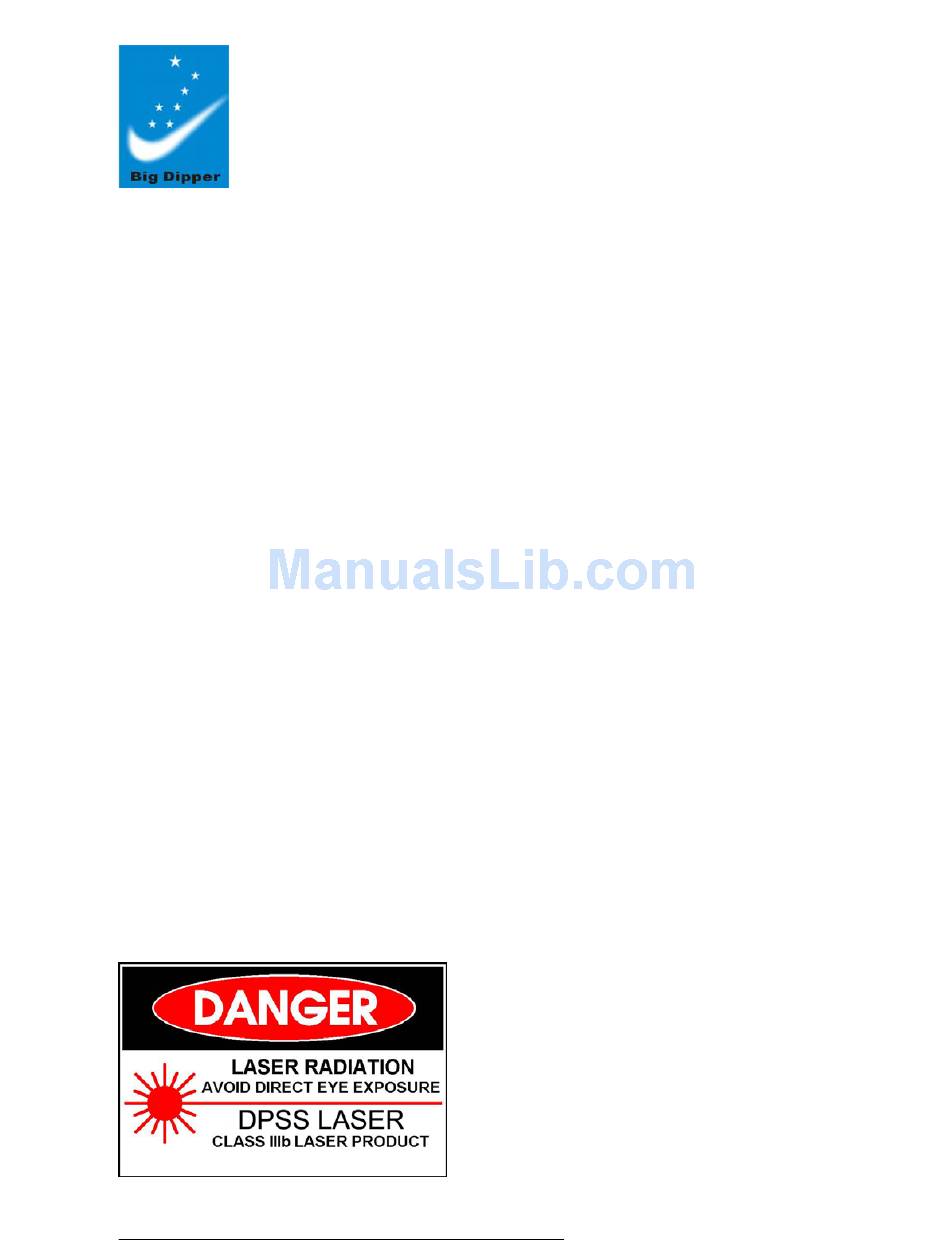

  • Page 1: User Manual

    Seven Stars K320 User Manual BIG DIPPER LASER SCIENCE & TECHNOLOGY CO., LTD...
  • Page 2: Specifications

    Introduction: Thank you for your purchase. Please read this user manual for your own safety. All copyrights are reserved by Big Dipper. Inspection: Please check for the following contents: 1. K320 2. Power cable 3. DMX cable 4. User manual...
  • Page 3: Dmx Operation

    DMX Operation: Channel No. DMX-512 Content 0~63 Sound Control 64~127 Single Pattern Channel 1 128~191 Auto Play 192~255 Shut Off Horizontal Fan 7~13 Special Fan 14~20 Vertical Fan 21~27 Special Tilt Line 28~34 Time & Space Tunnel 1 35~41 Time & Space Tunnel 2 42~48 Rotating Circle Zoom 1 49~55...
  • Page 5: Troubleshooting

    Maintenance: 1. Clean the lens of the diodes regularly. Dust will lower the output power of the laser. 2. Use a dry cloth to clean all parts. 3. Chemicals or wet cloths may damage the unit. Troubleshooting: I have turned on the laser but there is no power? A: Please check the cable if it’s inserted all the way.
