Woodwarm Stoves Phoenix 3 Installation, Servicing & User Instructions

Conventional flue gas stoves
Hide thumbs
Table of Contents

Advertisement

Quick Links

Conventional Flue Gas Stoves
Phoenix 3
Serial No: ...........................
INSTALLATION, SERVICING
AND USER INSTRUCTIONS
For use in GB & IE (United Kingdom and Ireland)
This appliance has been tested and certified for other counties (see technical data). However to install appliance in other
countries, modification of the appliance and its method of installation may be necessary in order to use the appliance safely and
correctly. The manual for the local language must be obtained. Contact Woodwarm for further information.
Document No. : User_Phoenix3_CF_10th Apr 2018
File: Office_Printers_GasStovesLit

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Phoenix 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Woodwarm Stoves Phoenix 3

Summary of Contents for Woodwarm Stoves Phoenix 3

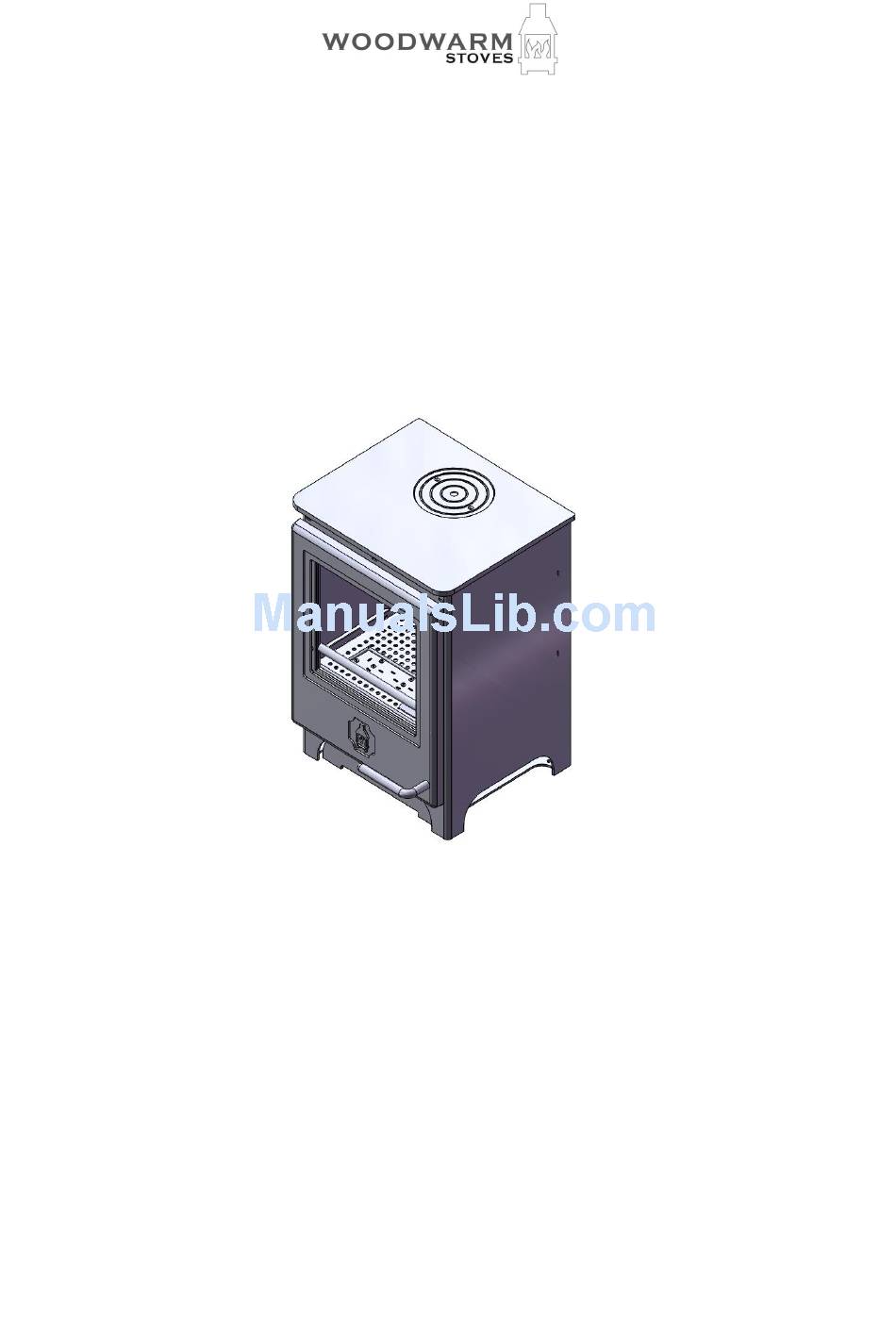

  • Page 1 Conventional Flue Gas Stoves Phoenix 3 Serial No: ……………………… INSTALLATION, SERVICING AND USER INSTRUCTIONS For use in GB & IE (United Kingdom and Ireland) This appliance has been tested and certified for other counties (see technical data). However to install appliance in other countries, modification of the appliance and its method of installation may be necessary in order to use the appliance safely and correctly.
  • Page 2 GB & IE This produst has been tested, and certified for use on Biopropane Gas. Biopropane Gas can be used as a fuel, with no adjustment necessary if the product is installed as an LPG version. This Manual covers the following Products: Phoenix3...

  • Page 3: Table Of Contents

    GB & IE Content 1. General Notes 2. User instructions. 2.1 Emergency Gas Isolation 2.2 First Time of Operation 2.3 Control Overview 2.3.1 Remote Control 2.4 Manual Turn OFF 2.5 Cleaning and Maintenance 3. Installation instructions. 3.1 Gas Connection 3.2 Ventilation 3.3 Appliance Fireplace Installation 3.4 Flue Connection 3.5 Door Lock / Opening the Stove Door...

  • Page 4: General Notes

    GB & IE 1. General Notes This Woodwarm gas appliance is a High Efficiency, Live Fuel Effect appliance. It provides radiant and convected heat using the latest burner technology. Before Installation, check that the local distribution conditions, nature of the gas and pressure, and adjustment of the appliance are compatible.

  • Page 5: User Instructions

    GB & IE 2. User instructions. 2.1 Emergency Gas Isolation In the event of a gas leak or if gas is smelt, the appliance must be isolated. This is done by turning OFF the gas at the Isolation Tap. This Isolation Tap Must Be fitted by the installation engineer as near as possible to the appliance (within 2 meters of the appliance).

  • Page 6: Control Overview

    GB & IE 2.3 Control Overview 2.3.1 Remote Control...
  • Page 7 GB & IE...
  • Page 8 GB & IE...
  • Page 9 GB & IE...
  • Page 10 GB & IE (IF FITTED)

  • Page 11: Manual Turn Off

    GB & IE 2.4 Manual Turn OFF In the event that the appliance needs to be turned OFF manually, for instance, if the remote control is lost or the batteries become totaly flat, the control valve can be accessed and the switch flipped to OFF (marked “0”) (if equipped).

  • Page 12: Installation Instructions

    GB & IE 3. Installation instructions. Before commencing Installation, confirm that the details on the appliance data plate correspond to the local distribution conditions, gas type and pressure to which the appliance is to be installed. Ensure that gas supply and supply pipe is capable of delivering the required volume and pressure of gas and is in accordance with the rules in force.

  • Page 13: Flue Connection

    GB & IE 3.4 Flue Connection The chimney or flue system must comply with the rules in force, and must be a minimum of 125mm in diameter (5"). The appliance is fitted with a 125mm flue connection, to use a 150mm diameter flue, a reducer will be required.

  • Page 14: Door Lock / Opening The Stove Door

    GB & IE 3.5 Door Lock / Opening the Stove Door NOTE! This appliance must never be used if the glass door panel is broken, removed or if the door is not locked in to the closed position. Before gaining access to the burner tray, first make sure that the stove is switched off and is cold. Firstly remove the outer door, lift the door upwards then pull away from the stove.

  • Page 15: Fuel Bed Arrangements

    GB & IE 3.6 Fuel Bed Arrangements. When arranging the Media into the Firebed, it is imporant that the Pilot area is kept clear and that no Media enters the Pilot shield. The Pilot area includes the the pilot shield and the top of the burner to the first slot. When comissioning or servicing the Appliance Cross Lighting must be checked to ensure smooth lighting of the main burner from the Pilot Flame and smooth lighting of the effect burners from the main Burner.
  • Page 16 GB & IE Scatter the Bags of Embers over the top of the burner as shown, keeping the piot area and burner outlets clear. Position the 8 logs as shown. If desired, lay the glow strands amongst the logs in the flames to create an enhanced Glow.
  • Page 17 GB & IE Log 3 Position Log 3 on top of the Left Hand side of the Front Burner. Log 4 Position Logs 4 so that it sits on top of Logs 1,2 and 3. Log 5 Position Logs 5 so that it sits on top of Log 4 in the centre, with the bottom in the Left Hand Rear corner of the Fire Box..
  • Page 18 GB & IE Log 6 Position Log 6 so that the Top of the Log sits on Log 4, with the bottom extending to the Rear of the Fire Box.. Log 7 Position Log 7 in the centre , sitting on the Grate, behind the Log Bar, with the Top on Log 4.
  • Page 19 GB & IE 3.6.2 Coal Lay Pack containing 30 Coals.
  • Page 20 GB & IE Position the 30 Coals as shown. Coals 1 - 8 Coals 9 - 13 Coals 14 - 17...
  • Page 21 GB & IE Coals 18 - 22 Coals 23 - 26 Coals 27 - 30...

  • Page 22: Commissioning The Appliance

    GB & IE 3.7 Commissioning the Appliance 3.7.1 Pilot Ignition Check 1. Ignite the pilot light as described in the User Instructions 2. Check that the pilot flame stays alight 3. Extinguish the pilot light 3.7.2 Main Burner Check 1. Ignite the pilot light as described in the User Instructions 2.

  • Page 23: Servicing

    GB & IE 4. Servicing Turn the appliance OFF and isolate the gas supply. Ensure the appliance is fully cold before attempting to start servicing the appliance. No liability can be accepted by Woodwarm for injury caused by burning or scolding by a hot appliance.

  • Page 24: Spare Parts

    GB & IE 4.3 Spare parts Item PHOENIX3 Front Window Panel GLS300GL Ceramic Log Pack GAS5003LG Ember Pack xxxxxxxx Pilot Assembly Natural CG06178 Pilot Assembly LPG CG20078 Electrode Lead G60-ZKIS1/1500 Injector Natural (280) CG22077 Injector LPG (120) EG02177 Complete Burner Assembly Natural 4A031N0 Complete Burner Assembly LPG 4A031P0...

  • Page 25: Technical Information

    GB & IE 5. Technical Information 5.1 Countries of Use Country Natural AT -Austria , G20 at 20 mbar ,G31 at 50 mbar; I ,G30/G31 at 50 3P(50) 3B/P(50) mbar BE -Belgium , G20/G25 at 20/25 mbar ,G31/G31 at 28/37 mbar; I ,G31 at 37 3P(37) mbar;...

  • Page 26: Technical Data

    GB & IE 5.2 Technical Data Product Identification Number : 0359CS2413 5.2.1 Phoenix3 CF Conventional G20/G2 G25/G25. G20/G2 Flue Phoenix I2H,I2 5 I2E+ 3 I2L/ I2EK Gas type I2ELL I2(43.46 ‐45.3 MJ/m3 (0°C)) Supply Pressure mbar 20 / 25 Nominal Heat Input Gross (Hs) 5.5/ 5 Nominal Heat Input Nett (Hi) 5.0 / 4.5...

  • Page 27: Dimensions

    GB & IE 5.3 Dimensions 5.3.1 Phoenix3 Top Flue...
  • Page 28 GB & IE 5.3.2 Phoenix3 Rear Flue...

  • Page 29: Product Fiche

    GB & IE 5.4 Product Fiche Information requirements for gaseous/liquid fuel local space heaters Model identifier(s): Phoenix 3 Conventional Flue Indirect heating functionality: Direct heat output: …(kW) Indirect heat output: …(kW) N.A. Fuel Space heating emissions (NOx) (NOx = nitrogen oxides)
  • Page 30 GB & IE Information requirements for gaseous/liquid fuel local space heaters Model identifier(s): Phoenix 3 Conventional Flue Indirect heating functionality: Direct heat output: …(kW) Indirect heat output: …(kW) N.A. Fuel Space heating emissions (NOx) (NOx = nitrogen oxides) Fuel type...
  • Page 31 GB & IE...
  • Page 32 GB & IE WOODWARM STOVES Metal Developments Ltd. The Workshop Wheatcroft Farm Cullompton Exeter EX15 1RA Tel. : +44 (0) 1884 35806 Web : www.woodwarmstoves.co.uk Email : info@woodwarmstoves.co.uk...
  • Page 33 GB & IE Appendix 1 – Mertik Maxitrol Symax Control System.
