Matthews Fan Company
BD/JD DLC Installation Instructions
&

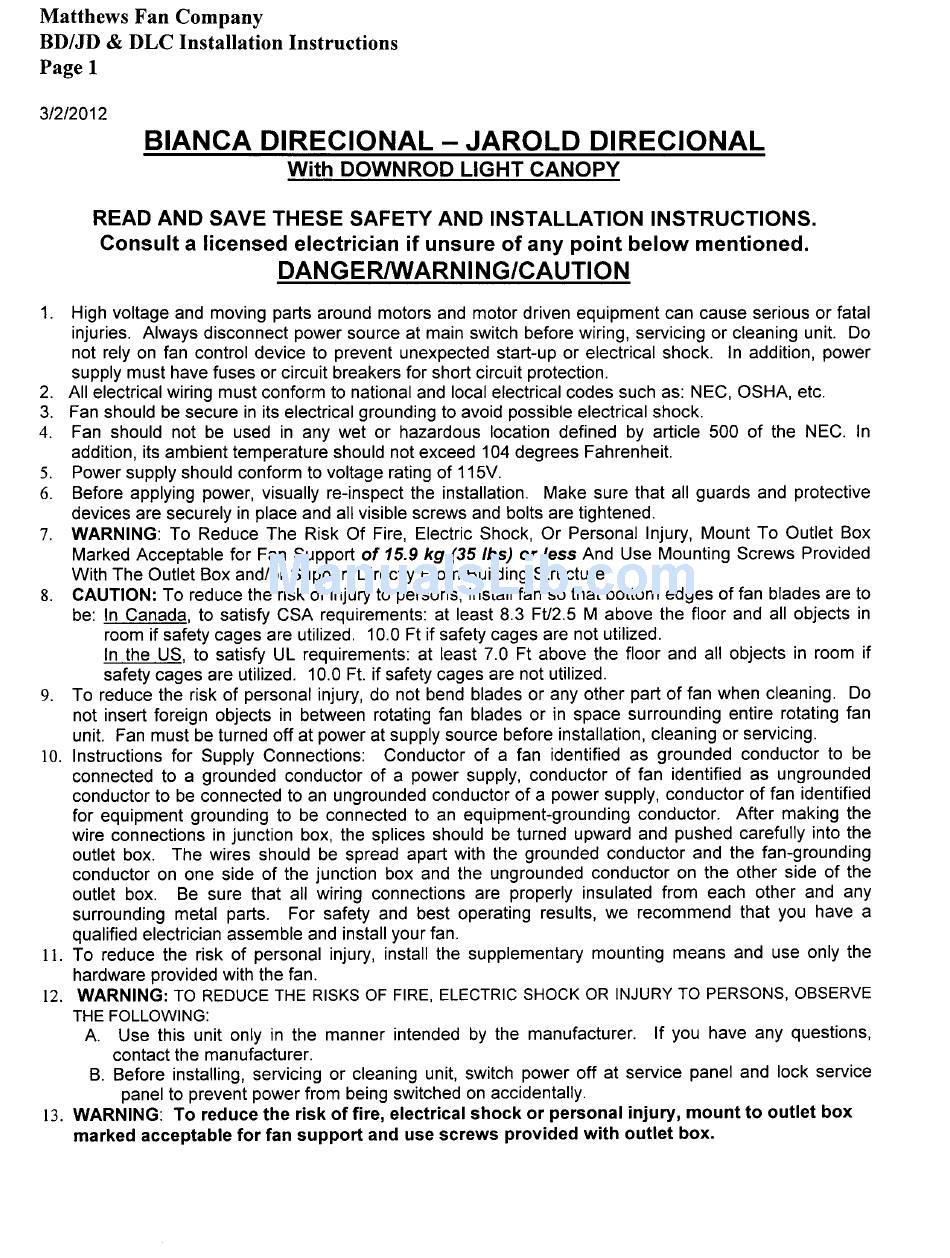

Page 1
3/2/2012
BIANCA DIRECIONAL - JAROLD DIRECIONAL
READ AND SAVE THESE SAFETY AND INSTAllATION
Consult a licensed electrician if unsure of any point below mentioned.
1. High voltage and moving parts around motors and motor driven equipment can cause serious or fatal
injuries. Always disconnect power source at main switch before wiring, servicing or cleaning unit. Do
not rely on fan control device to prevent unexpected start-up or electrical shock.
supply must have fuses or circuit breakers for short circuit protection.
2. All electrical wiring must conform to national and local electrical codes such as: NEC, OSHA, etc.
3. Fan should be secure in its electrical grounding to avoid possible electrical shock.
4. Fan should not be used in any wet or hazardous location defined by article 500 of the NEC. In
addition, its ambient temperature should not exceed 104 degrees Fahrenheit.
5. Power supply should conform to voltage rating of 115V.
6. Before applying power, visually re-inspect the installation.
devices are securely in place and all visible screws and bolts are tightened.
7. WARNING: To Reduce The Risk Of Fire, Electric Shock, Or Personal Injury, Mount To Outlet Box
Marked Acceptable for Fan Support of
With The Outlet Box and/or Support Directly From Building Structure
8. CAUTION: To reduce the risk of injury to persons, install fan so that bottom edges of fan blades are to
be: In Canada, to satisfy CSA requirements: at least 8.3 Ft/2.5 M above the floor and all objects in
room if safety cages are utilized. 10.0 Ft if safety cages are not utilized.
In the US, to satisfy UL requirements:
safety cages are utilized. 10.0 Ft. if safety cages are not utilized.
9. To reduce the risk of personal injury, do not bend blades or any other part of fan when cleaning.
not insert foreign objects in between rotating fan blades or in space surrounding entire rotating fan
unit. Fan must be turned off at power at supply source before installation, cleaning or servicing.
10. Instructions for Supply Connections:
connected to a grounded conductor of a power supply, conductor of fan identified as ungrounded
conductor to be connected to an ungrounded conductor of a power supply, conductor of fan identified
for equipment grounding to be connected to an equipment-grounding
wire connections in junction box, the splices should be turned upward and pushed carefully into the
outlet box. The wires should be spread apart with the grounded conductor and the fan-grounding
conductor on one side of the junction box and the ungrounded conductor on the other side of the
outlet box. Be sure that all wiring connections
surrounding metal parts.
qualified electrician assemble and install your fan.
11. To reduce the risk of personal injury, install the supplementary
hardware provided with the fan.
12. WARNING:
TO REDUCE THE RISKS OF FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS, OBSERVE
THE FOllOWING:
A. Use this unit only in the manner intended by the manufacturer.
contact the manufacturer.
B. Before installing, servicing or cleaning unit, switch power off at service panel and lock service
panel to prevent power from being switched on accidentally.
13. WARNING: To reduce the risk of fire, electrical
marked acceptable
With DOWN ROD LIGHT CANOPY
DANG ERIW ARN ING/CAUTION
15.9
Conductor of a fan identified as grounded conductor to be
For safety and best operating results, we recommend
for fan support and use screws provided
Make sure that all guards and protective
(35
kg Ibs) or less And Use Mounting Screws Provided
at least 7.0 Ft above the floor and all objects in room if
are properly insulated from each other and any
mounting means and use only the
shock or personal
with outlet box.
INSTRUCTIONS.
In addition, power
conductor. After making the
that you have a
If you have any questions,
injury, mount to outlet box
Do
