Otto V1-10282 Instruction Manual

Storm speaker microphone, controured design for easy handling, one-meter immersion rating, push-button volume control, 2.5mm earphone jack, clothing spring clip

Advertisement

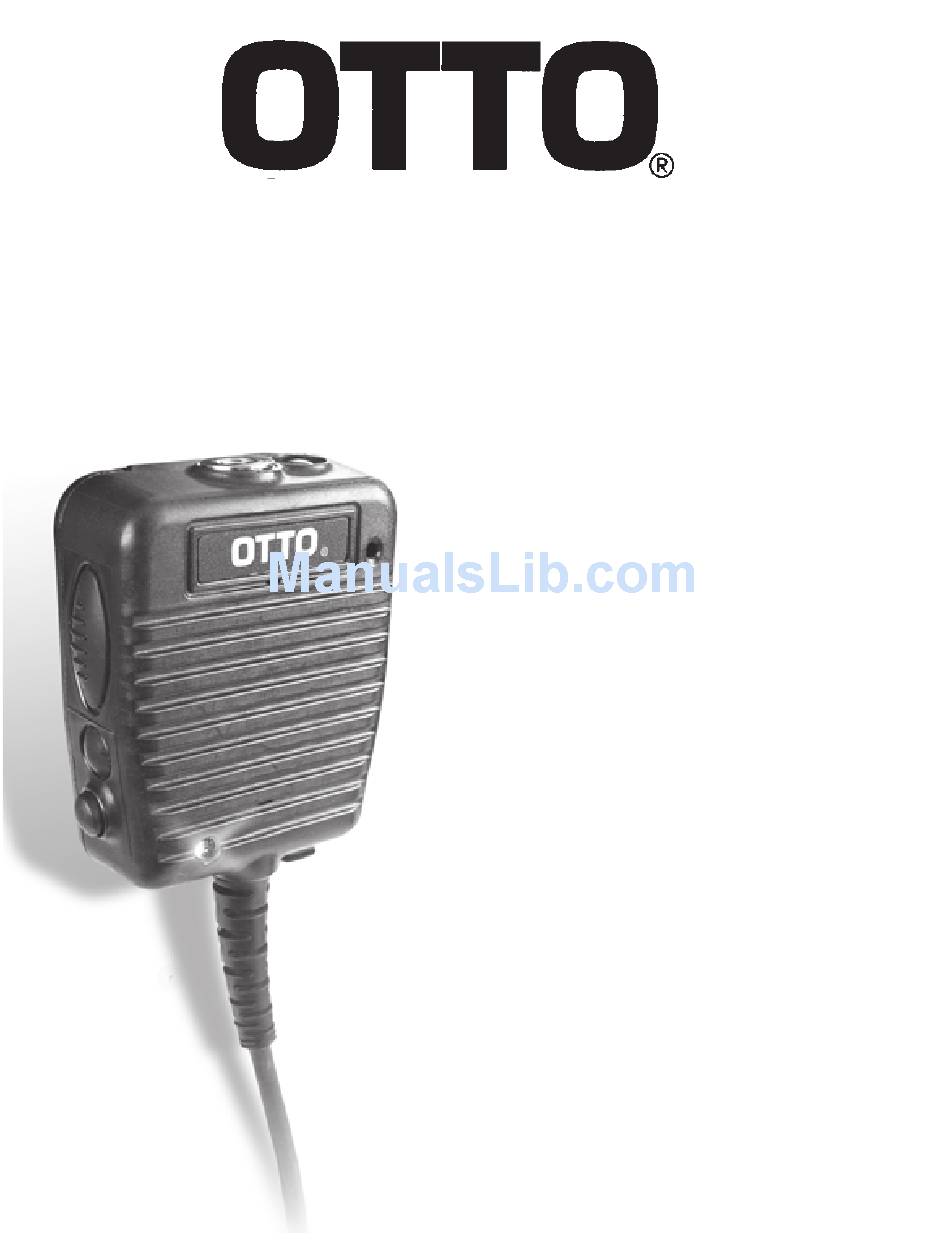

Storm Speaker Microphone
• Contoured design for
easy handling
• One-meter
immersion rating
• Push-button volume
control
• 2.5mm earphone jack
• Clothing spring clip

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the V1-10282 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Otto V1-10282

  • Page 1 Storm Speaker Microphone • Contoured design for easy handling • One-meter immersion rating • Push-button volume control • 2.5mm earphone jack • Clothing spring clip...
  • Page 2 INSTALLATION: 1. Turn radio off 2. Remove any dust caps or covers from radio accessory connector 3. Attach speaker microphone to the radio accessory connector 4. Tighten mounting thumbscrew if required Antenna versions only (Optional): 5. Remove antenna from 2-way radio 6.
  • Page 3 OPERATION: Turn the radio on and operate it as explained in the operating instruc- tions supplied with the radio. Installing the speaker microphone (1) bypasses the radio’s speaker and routes the speaker output to the speaker microphone and (2) disables the radio’s microphone and enables the speaker microphone.
  • Page 4 Optional Earphone Kits Description Part Number Earphone with Acoustic tube, 2.5mm straight V1-10282 plug, coil cord (30” extended length), black Earphone with Acoustic tube, 2.5mm right V1-10432 angle plug, coil cord (30” extended length), black Ear hanger, 2.5mm right angle plug,...

This manual is also suitable for:

V1-10432V1-eh22r131
