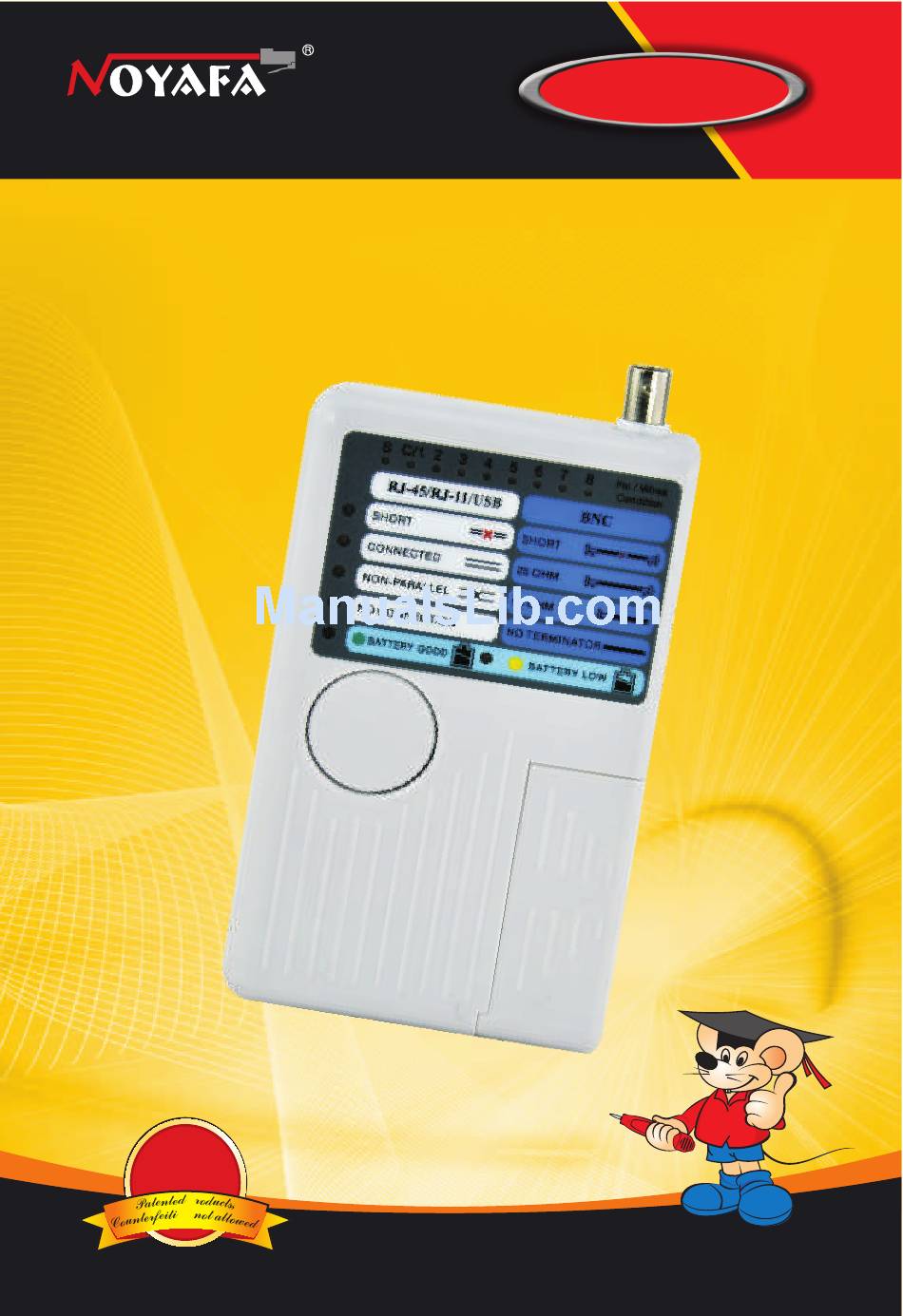

- Page 1 NF-3368 MODEL: NF-3468 Your excellent helper in cable test! INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL 4 IN 1 Cable Tester ORIGINAL ORIGINAL AUTHENTIC AUTHENTIC REV1.0...
-
Page 2: Table Of Contents
Contents I n t r o d u c t i o n ..........1 S a f e t y R u l e s a n d Wa r n i n g s . -
Page 3: I N T R O D U C T I O N

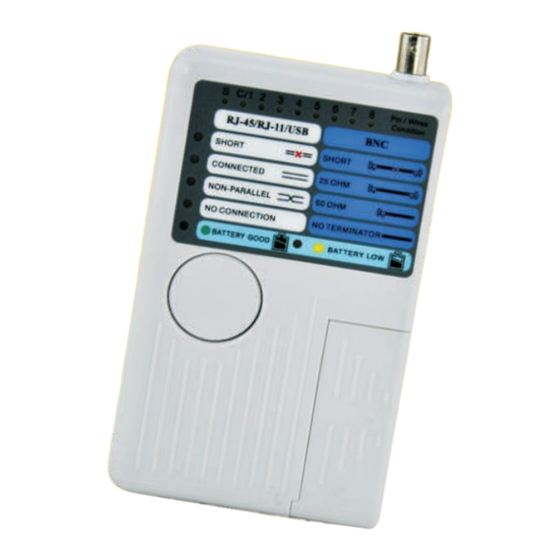

1: INTRODUCTION The 4 in 1 Cable Tester tests 4 common LAN and Computer cables. It tests installed cables or patch cords with RJ-45, RJ-11,USB ,and BNC connectors. It is intended to test cables with straight through connections not cables with reversed or transposed connections like some LAN crossover cables or reverse wired telephone cables. -
Page 4: P R O D U C T F E A T U R E S
2.5 Do not use this tester to make measurements in adverse environments such as rain, snow, fog, or locations with steam, explosive gases or dusts. 2.6 Avoid usage near strong electrostatic fields (high voltage power lines,televsions,computer monitors,etc.). 2.7 Avoid usage near strong RF fields (radio or television transmitters, walkie talkies, cellular phones etc.). - Page 5 4: SPECIFICATIONS 4.1 Cable Types Tested: ● UTP and STP LAN cables,terminated in RJ-45 male connectors.(EIA/TIA 568) ● RJ-11 cables with male connectors, 2 to 6 conductors installed. ● USB cables with Type A flat plug on one end and type B square Plug on other end.
-
Page 6: I N T E R F A C E S
6.3 RJ-45 Jack 6.4 RJ-11 Jack 6.5.1 USB Jack (NF-3468) 6.5.2 USB(mini) Jack (NF-3368) 6.6 BNC Jack 7:OPERATION 7.1 General Information: The 4 in 1 Cable Tester NF-3468, it functions by pressing one- single button on the panel. User can get clear test results from the 8 light and knowing the cable is connected. - Page 7 7.2 The MAIN and REMOTE unit: The 4 in 1 Cable Tester, is consists of a Master unit and Remote unit. The Remote is detachable when testing cablesBe careful when remove it from the master because the plastic edge is a little sharp. 7.3 Testing Patch cables: “Patch”...
- Page 8 7.6 Interpreting the Results: 7.6.1 Power LED: The Power LED should light whenever the “Test” Button is pressed and released. It will be on for a minimum of 5seconds. If the power LED does not light, replace the battery. 7.6.2 Low Battery LED: The low Battery LED should not light .
- Page 9 The Numbered LEDs don’t indicate that a GOOD connection exists, only that a connection exists. If the Short or Cross LEDs are Lit, there is a fault in the cable. 7.6.4 Connected LED/3Beepers/Short LED/Numbered LEDs If the Connected LED lights, the Beeper emits 3 beeps, and the Short LED lights, the cable has a fault.
-
Page 10: M A I N T E N A N C E
8:MAINTENANCE 4 i n 1 C a b l e Tes t e r i s a p r e c i s i o n t e s t i n s t r u m e n t a n d , when used as described in this manual, should not require maintenance.
