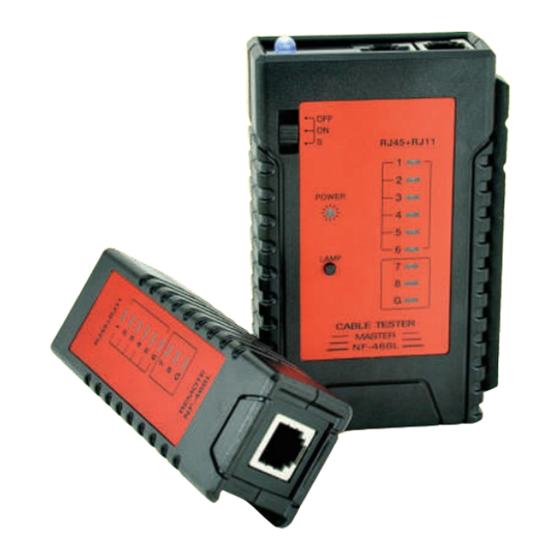

- Page 1 MODEL:NF-468 Your excellent helper in cable test! INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL Cable Tester REV1.0...
- Page 2 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 BL W BL W T568B T568A 1 2 3 4 5 6 7 8 1 2 3 4 5 6 8P8C 6P6C PLUG Please read and learn safety instructions before use or maintain the equipment ●...
- Page 3 NF-468/NF-468L tests RJ45,RJ11 NF-468B/NF-468BL tests RJ45,RJ11 and BNC. 3."OFF" means Power off, "ON" means normal speed, "S" means Slow Speed. 4. Tickle the "LAMP" button, the light will be on(NF468L/ NF468BL). II. Operation (eg: RJ45) Turn on the tester with battery, choose"ON" (Normal grade) or "S"...
- Page 4 Test by RJ45 cable (NF-468/NF-468L/NF-468B/NF-468BL) 1. Switch on the power, choose"ON" or "S", the power light will turn on. 2. If UTP tested, the lights of the main tester and remote tester will turn on sequently from 1 to 8 and circulates;If STP tested, the lights of the main tester and remote tester will turn on sequently from 1 to G and circulates.
- Page 5 Test by RJ11/RJ12 (NF-468/NF-468L/NF-468B/NF-468BL) 1.Switch on the power, choose"ON" or "S", the power light will turn on. 2.If RJ11 cable tested, the lights of the main tester and remote tester will turn on sequently from 2 to 5 and circulates.If RJ12 tested, the lights of the main tester and remote tester will turn on sequently from 1 to 6 and circulates.
- Page 6 Test by BNC ( NF-468B/NF-468BL) 1. Switch on the power, choose"ON" or "S", the power light will turn on. 2. Connect R 45 port of BNC adapter with remote tester. then insert one end of BNC cable into BNC port of main tester, the other end into BNC connector.
- Page 7 NF-306 NF-868 NF-8208 NF-268 NF-806R NF-816 NF-3468 NF-801B NF8108-M NF-388 NF-903 NF-906A Your excellent helper in cable test!
- Page 8 Your excellent helper in cable test! SHENZHEN NOYAFA ELECTRONIC CO.,LTD...
