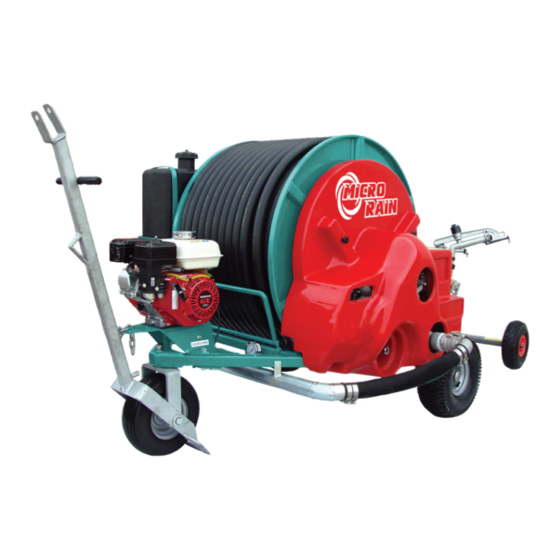

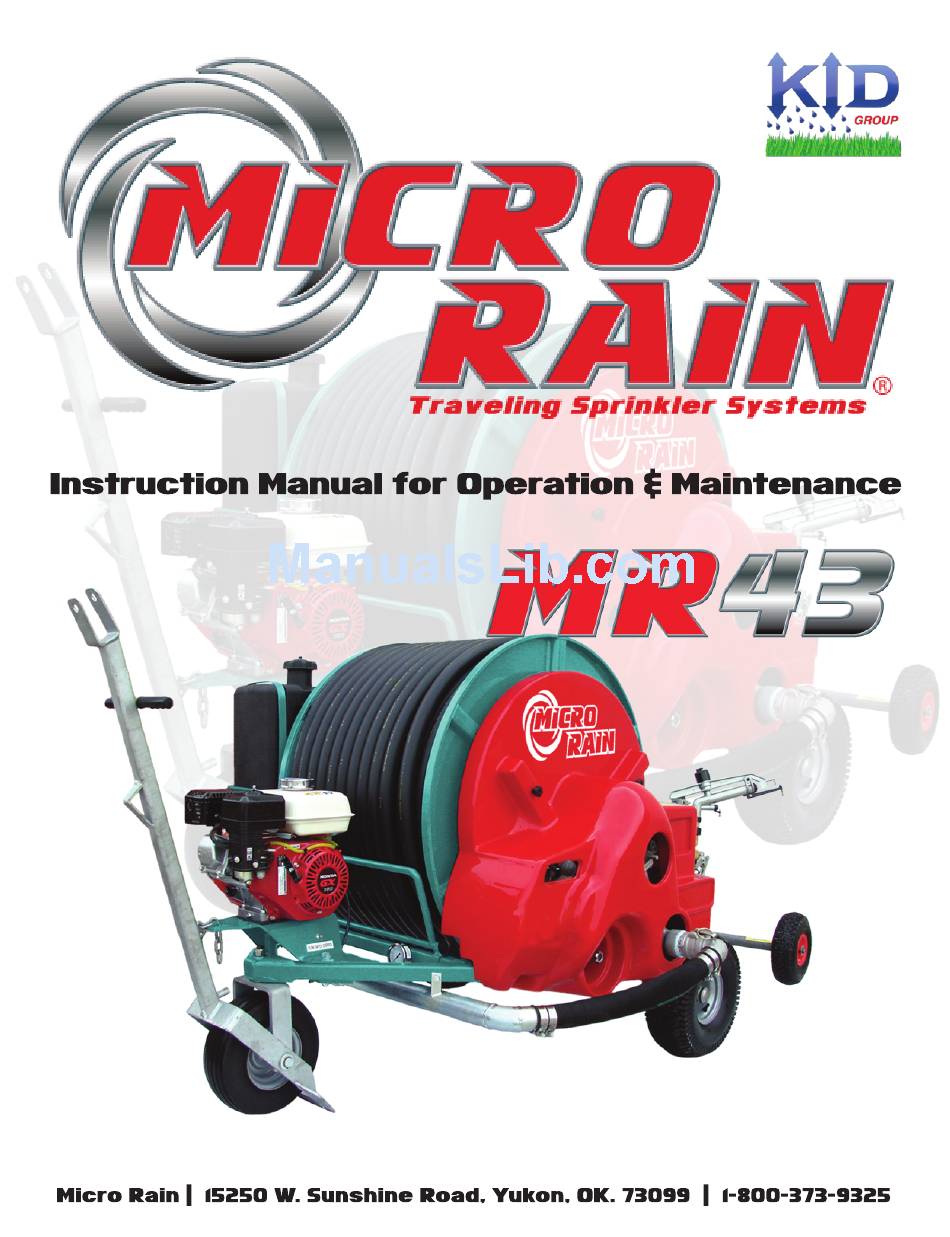

Micro Rain MR43 Instruction Manual

Traveling sprinkler system
Hide thumbs Also See for MR43:

Advertisement

Quick Links

Advertisement

loading
Need help?

Need help?

Do you have a question about the MR43 and is the answer not in the manual?

Questions and answers

Related Manuals for Micro Rain MR43

Summary of Contents for Micro Rain MR43

  • Page 2: Table Of Contents

    Table Of Contents Signs And Their Meaning............2 Identification Data................3 Machine Controls.................4 Weight And Dimensions..............4 Transport And Delivery..............5 Assembly Instructions............6 - 8 Start-Up Maintenance Procedures........9 - 11 Standard/Quick Hose Rewind...........12 Maintenance/Winterization............13 Performance Chart..............14 Care And Repair Of P.E. Tube..........14-15 Troubleshooting................16 Warnings..................17 Use Of Shut-Off Valves.............18 Booster Pump................19...
  • Page 3 Safety is the main priority and failure to follow these instructions may cause serious injury or death. KID Group, Inc./Micro Rain is not responsible for machine failure or personal injury if these procedures and operation instructions are not followed.
  • Page 4 Signs & Their eanings CAUTION 1. This sign indicates the operations and parts that may be risky for the safety of the operator. When you see this sign, read following message carefully and beware of possible risk of accident. 2. This sign indicates pressurized supply lines. Do not release the clamps before making sure that the pressure is released.
  • Page 5 This machine is not designed for dirty water or slurry/waste water conditions. The KID ID Plate includes a model number ie. MR43, MR58BP, and a serial number. The ID plate is located on the left side of the machine (cover side) on the frame plat just...
  • Page 6 Note: For unloading and assembly operations of the machine, use lift winches and equipment with dimensions and capacities proportioned to the weight of the machine to be lifted. (see tables below) Dimensions (inches) Weight (pounds) w/ Water MR43 MR43...
  • Page 7 OR FAILURE TO READ AND FOLLOW INSTRUCTIONS. 1) Micro Rain travelers are either shipped on a special skid (partially disassembled) which can be unloaded with a fork lift, or they are shipped in a fully assembled state by blocking on the shipping floor.
  • Page 8 Due to freight height and space limitations, some assembly may be required with your newly purchased Micro Rain traveler. Be sure to follow proper procedures when unloading and assembling the machine to avoid any danger or injury. ATTENTION!!! NEITHER MICRO RAIN NOR MICRO RAIN DEALERSARE RESPONSIBLE FOR ANY INJURY OR MACHINE FAILURE DUE TO CARELESSNESS OR FAILURE TO READ AND FOLLOW INSTRUCTIONS!!!.

  • Page 9: Assembly Instructions

    Your Micro Rain traveler is packaged for protection during shipping with the guncart and sprinkler head dis-assembled. The instructions below will step you through the assembly of the guncart and attaching the guncart onto the end of the poly hose. Please follow these instructions carefully to ensure that your traveler is assembled properly upon start up.
  • Page 10 ssembly nstructions 5. Bevel the inside of the hose to allow the barbed portion of the guncart to have an easier start into the poly tube. (At this time, slide the hose clamps onto the hose so they are in place and ready to tighten after hose is connected.) 6.
  • Page 11 1. Check the oil level of the gearbox and if necessary add SAE 80W/90. Keep oil level at the side plugs in the gearbox in order to bathe the shift fork in oil. 2. Grease the machine thoroughly (all grease fittings) and thereafter, grease every 100 hours.
  • Page 12 The MR43 is designed for clean water suitable for irrigation. The machine is not designed for water that includes large pieces of debris or slurry/wastewater conditions. 1. Tow the machine to the working site (off-road only). WARNING!! Maximum speed is 7 MPH. Before towing the machine, be sure no one is standing behind or around the machine;...
  • Page 13 **Important: Always pull cart out straight and tighten loose wraps before start up! 8. Pull the gun cart out straight with a consistent speed (about the pace of a walk), and slow down when approaching the stop or end position. NOTE: Always leave at least one wrap of hose on the reel.
  • Page 14 2. Connect the tractor PTO drive line to the gearbox shaft on the Micro Rain. Read drive-line directions for proper use of the PTO drive-line. Neither Micro Rain nor Micro Rain dealers are responsible for improper use of the drive line which can result in injury or death.
  • Page 15 Drain plug is lo- cated on the bottom side of the turbine. 3. It is important ti unrack the guncart on the MR40 & MR43, open the shutoff valve, and allow water above lhe valve to drain out of the sprinkler.

  • Page 16: Performance Chart

    The polyethylene tube ( P. E. Tube ) is a very durable and will serve your irrigation needs for many years with proper care and handling. Observe these simple precautions when using your Micro Rain traveler to prevent damaging or shortening the life of your tube.
  • Page 17 Screw-in menders are the best way to repair damaged P. E. tube in the field. These metal menders will allow you to repair damaged tube without replacing the entire length of tube. These tube menders can be obtained from your Micro Rain dealer. INSTALLATION 1.

  • Page 18: Troubleshooting

    Troubleshooting IF HOSE DOES NOT WIND UP..The impeller of the turbine is blocked by foreign matter. SOLUTION: Remove the turbine cover and clean the housing. The gun is partly clogged and only a small amount of water SOLUTION: Proceed to clean out gun nozzle. comes out.
  • Page 19 FOR ANY INJURY OR DAMAGE DONE DUE TO FAILURE TO FOLLOW SAFETY GUIDELINES Despite Micro Rain’s attempt to a make a safe and secure machine, some risks still remain un avoidable in the operation of the machine. Failure to heed these warnings can cause serious injury or death.
  • Page 20 Figure 1 Figure 2 OPTIONAL SHUT OFF VALVE FOR HIGH CART MR43 1. In order for water to enter the machine, the shut off valve (located under the red side cover) must be manually opened prior to irrigating. Remove the assist handle from the holder and place in the valve arm.
  • Page 21 Please see engine check list using the enclosed engine owners manual. Follow engine procedures as instructed by the engine manufacturer to avoid pump or machine damage. Micro Rain or Micro Rain Dealers are not responsible nor liable for operator failure to follow engine and machine instructions and guidelines.
  • Page 22 ngine Start- p NOTE: The engine will not start without water flowing through the machine! 5. Turn on the gas switch. 6. If the engine is cold, “choke” the engine by pushing the switch to the left. 7. Start the engine by pulling on starter rope. 8. OR Start the engine turning ignition key clockwise. Set the choke to a smooth working position by moving the lever to the right.

  • Page 23: Warnings

    orbidden WARNING DO NOT USE THIS MACHINE IN A NON-VENTILATED AREA 1. Do not use this machine with solids, waste, etc. This machine is designed only for use in clean water applications. 2. Do not use in high risk areas for explosives. 3.
  • Page 24 LIMITED WARRANTY AND REMEDY: WARRANTY: KID Group, Inc. as distributor, warrants to the original purchaser only of the Micro Rain Irrigation Equipment described in the face hereof as of the date of the original invoice, that the equipment is merchantable and free from defects in material and workmanship.
