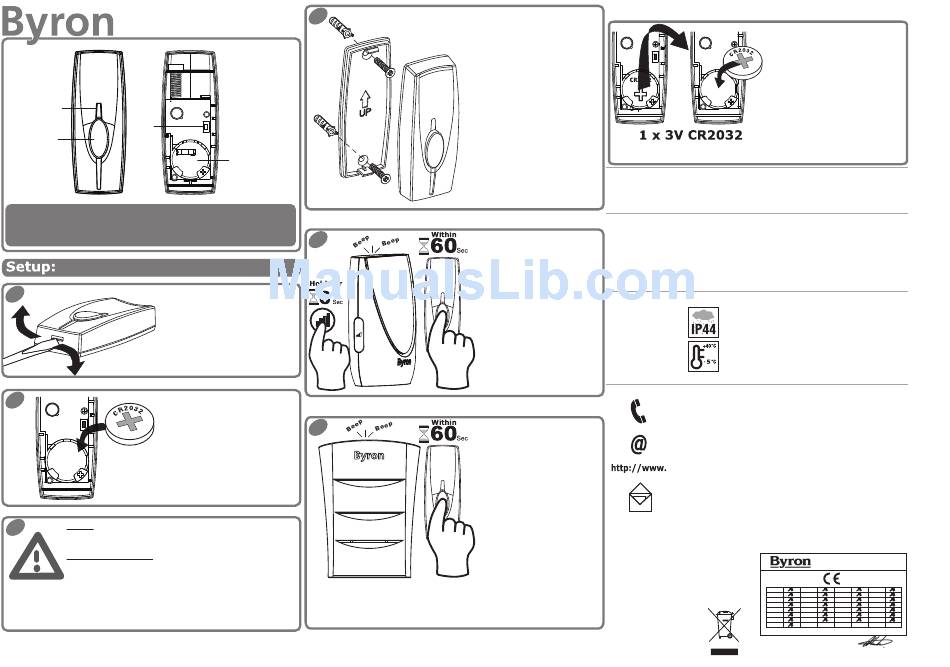

Additional
™
Bell Push
BY30
4:
2:
1:
1: Push Button
2: Melody Selector - inside Bell Push
3: Bell Push Battery- inside Bell Push
4: Signal Sent LED
1
1: Place a small flat screwdriver
into the locking clip on the
base of the Bell Push
2: Gently twist
3: The backing plate will unclip
2
1: Insert CR2032 battery
(Supplied) into the battery
holder.
2: Make sure the positive side
is facing upwards.
3: Replace back plate.
Warning: Make sure that the batteries are
replaced correctly to avoid battery failure.
Only replace with same or equivalent type.
Avoid
3
locating the Bell Push/Chime on or directly near
metallic surfaces as this may reduce the operation
range.
UPVC Door Frames:
When locating the bell push onto a UPVC door, always
check the operating performance before final
installation, internal metal frame may affect
.
performance
Note: Try adjusting the location of the Bell Push to the Left/Right or
place on external wall.
4
:3
Chime With Volume Control
5
Chime Without Volume Control
5
Note: Maximum of 2 Bell Pushes can be learnt to a single Chime for
Front/Back Door use.
1: Using back plate as a
template.
'CLICK'
2: Making sure UP arrows
points UP.
2: Mark and drill holes.
3: Insert wall plugs and attach
to wall using screws
provided.
4: Clip the Bell Push on to the
back plate making sure the
Bell Push 'Clicks' in to
place.
Note: The Bell Push can be
installed using a suitable
double sided adhesive tab or
tape when drilling is not
sutiable.
1: Press and hold the 'VOL'
button on the Door Chime,
until the Chime goes
'Beep Beep' (6 Seconds)
2: Press the Bell Push within
60 seconds to learn the
Bell Push to the chime.
3: The Chime will ring to
confirm setup.
Note: Maximum of 6 Bell
Pushes can be learnt to a
single Chime.
Plug-in Chime:
Remove from socket and then
plug chime back-in
Portable Chimes:
Remove the batteries and
then reinsert the batteries
1: The Chime will 'Beep Beep'.
2: Press the Bell Push within
60 seconds to learn the
Bell Push to the chime.
3: The Chime will ring to
confirm setup.
Changing Batteries:
Bell Push:
1: Remove back plate from the
Bell Push.
2: Remove old battery from the
holder.
3: Replace with new 'CR2032' 3V
battery.
4: Insert into holder making sure
'+' is facing up.
5: Test Chime Kit.
Type R2 Device - device where the sound output is created by the
initial operation of the control and where the period of sound output
continues for the designed duration irrespective of condition of the
control.
IMPORTANT:
There are no serviceable parts, do not repair. The appliance is not to be
used by children or persons with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge,unless they have been
given supervision or instruction. Children should be supervised to ensure
that they do not play with the appliance.
Specification
Bell Push: BY30
Power: 1 x CR2032 3V DC Battery
(Included)
IP44 Weather Resistant
Tel: 0845 2301231 (UK)
9-5 Mon-Fri, Local call charges apply
support@chbyron.com
www.chbyron.com
CH Byron
Byron House, Sherwood Rd
Astonfields, Bromsgrove
B60 3DR
UK
R&TTE
APPROVED
A
A
B
B
DK
DK
FIN
FIN
F
F
D
D
GR
GR
LT
CH Byron Electrical United Kingdom. www.chbyron.com
V1.0
433.92MHz
IRL
IRL
UK
M
I
I
BG
N
L
L
CZ
SK
SK
NL
NL
EST
SLO
P
P
H
CH
E
E
IS
PL
PL
S
S
LV
RO
Project Manager
Mr G Hunter
