Summary of Contents for Sulzer CA 462

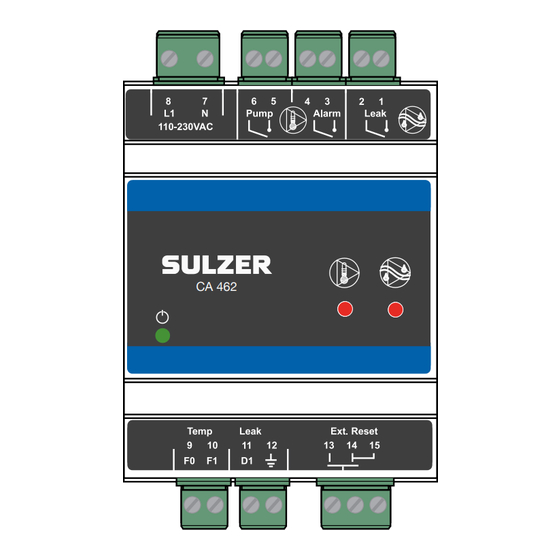

- Page 1 Temperature and Leakage Relay Type ABS CA 462 CA 462 CA 462 Installation Guide www.sulzer.com...
- Page 2 Sulzer. Sulzer assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.
-
Page 3: Function And Usage
Temperature and leakage relay type ABS CA 462, Installation guide FUNCTION AND USAGE CA 462 is a combined standalone leakage detection and temperature blocking relay for DIN rail mount. 1.1 Function leakage In case of water leakage, the resistance between the sensor electrode and hous- ing will decrease. - Page 4 Temperature and leakage relay type ABS CA 462, Installation guide Table 3: Logic table of relay Alarm Type Alarm LED Input State Output Relay State Remark Temperature Leakage Temp Leak Pump Alarm Leak (9 & 10) (11 & 12) (5 & 6) (4 &...
-
Page 5: Connection Diagram
Temperature and leakage relay type ABS CA 462, Installation guide CONNECTION DIAGRAM CA 462 Figure 1 Electrical connection diagram 108 mm (4,25) 70 mm (2,76) Figure 2 Dimensions... - Page 6 Description 16907009 Xylem MiniCAS Adapter 3.1.1 Connection Diagram MiniCAS Adapter Xylem MiniCAS adapter is a PCB with resistor network for interfacing CA 462 to Xylem MiniCAS relay. The output to MiniCas is polarity independent. CA 462 Figure 3 Connection diagram for MiniCAS adapter...
-
Page 7: Technical Data
Temperature and leakage relay type ABS CA 462, Installation guide TECHNICAL DATA 4.1 Technical data CA 462 Temperature input threshold (±10%) > 3.3 kohm (PTC / Klixon) Max PTC current < 0.6 mA PTC source voltage 12 VDC Leakage sensor voltage... - Page 8 A good choice would be the microfiber type of cloth and gently wipe the CA 462 unit on front in order not to scratch the overlay. If the dry cloth did not completely remove the dirt, do not press harder in an attempt to scrub it off. If necessary, moisten the cloth by adding a small amount of water with thin solution of mild detergent and try again.
- Page 9 Meno a adresa osoby oprávnenej na zostavenie technického súboru pre úrady na požiadanie: Asmens, įgalioto valdžios institucijoms pareikalavus sudaryti techninę bylą, vardas, pavardė ir adresas: Frank Ennenbach, Director Product Safety and Regulations, Sulzer Management AG , Neuwiesenstrasse 15, 8401 Winterthur, Switzerland Declare under our sole responsibility that the products: Försäkrar under eget ansvar att produkterna:...
- Page 10 Sulzer Pump Solutions Ireland Ltd., Clonard Road, Wexford, Ireland Tel. +353 53 91 63 200, Fax +353 53 91 42 335, www.sulzer.com Copyright © Sulzer Ltd 2017...
