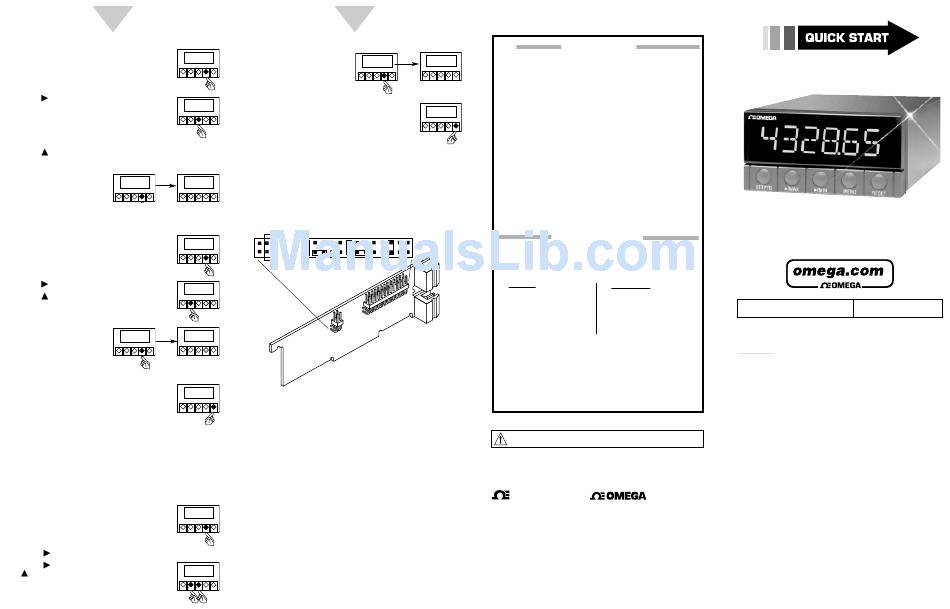

Omega DP41-S Quick Start

5

To Configure Meter Inputs:

1. Press MENU until the meter displays:
in cnf
SETPTS
2. Press /MIN to display:
inp. 1 =0
SETPTS
3. Press /MAX, if necessary to change the configuration value.
I I N N P P . . 2 2 I I N N P P . . 7 7
4. Repeat steps 2 and 3 for through
5. Press MENU
stored in. s c. o f
The meter displays:
SETPTS /MAX /MIN MENU RESET SETPTS

To Set Decimal Point Position:

1. Press MENU until the meter displays:
DeC pt
SETPTS
2. Press /MIN to display:
FFFF. F F
Press /MAX to move the decimal point
to the desired location.
SETPTS
3. Press MENU.
stored
The meter displays:
SETPTS /MAX /MIN MENU RESET SETPTS
4. Press RESET twice. The meter flashes and
reset2
displays an output reading.
The meter is now in RUN mode.
SETPTS

Configure Reading Offset

Now that you are in the run mode with a transducer connected to
the meter, do the following:
1. Simulate a load on the transducer (leave the pressure port
open).
2. Note the display reading. Let's assume the display shows
43.5
3. To make the display show zeroes, press MENU
rdg of
until the meter displays:
SETPTS
4. Press /MIN to display the previous reading offset value.
5. Using /MIN to scroll through the digits and
-0043. 5
/MAX to change the value, enter the value
-0043.5
SETPTS
6

Configure Reading Offset (continued)

6. Press MENU.
stored
The meter displays:
/MAX /MIN MENU RESET
SETPTS /MAX
7. Press RESET twice.
The meter flashes and then displays a value.
/MAX /MIN MENU RESET
Your meter is now in RUN mode and operational.
If You Have Bipolar Input ±50mV
/MAX /MIN MENU RESET The typical setting for your meter is unipolar. If, however, you
have bipolar input ±50mV, you must install jumper S1B. Remove
the outer panel mounting sleeve to expose the jumper.
B E K M
S1
A D G H P
A B L
C F J N Q
/MAX /MIN MENU RESET
/MAX /MIN MENU RESET
cntby
/MAX
/MIN MENU RESET
S1 Jumper Location on Signal Input Board
In addition, you must set configuration menu value INP.3=1 (under
/MAX /MIN MENU RESET
IN CNF menu). Refer to the Configuration sections of this Quick
Start manual.
/MAX /MIN MENU RESET
/MAX /MIN MENU RESET
