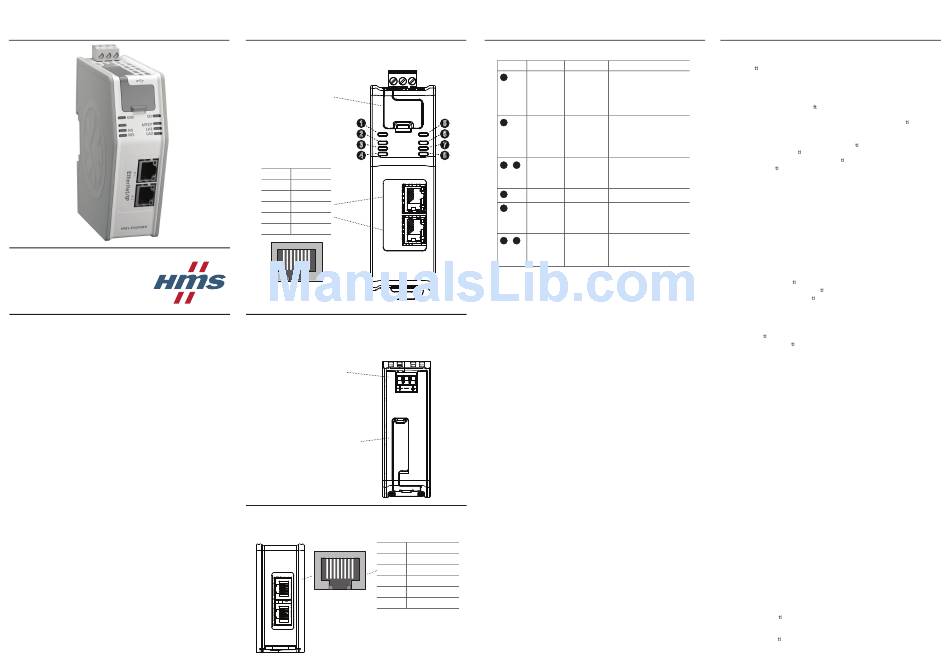

HMS -EN2MB-R Installation Sheet

HMS-EN2MB-R Linking Device
INSTALLATION SHEET
HMS Industrial Networks AB
Web: www.anybus.com
Tel: +46 35 172900
E-mail: info@hms.se
SP2093, rev 1.02, March 2017. www.anybus.com
Device Front
USB port:
Connect a PC to the USB port
for fi rmware upgrades.
1
2
3
EtherNet/IP 4
Connector:
Pin no Description
1 TX+
X1.1
2 TX-
3 RX+
6 RX-
4, 5, 7, 8 Termination
X1.2
1 8
Top View
Power:
(+) +24 V DC
(-) GND
(A) FE
X3
SD card slot:
Bottom View
Modbus-TCP Connector:
(Front)
Pin no Description
1 TX+
X2.1
2 TX-
3 RX+
6 RX-
1 8
4, 5, 7, 8 Termination
X2.2
LED Indicators
No Name Indication Meaning
Module Status Off Power off
1
EtherNet/IP Alternating red/green Boot sequence
Flashing green Idle
Green Running
Flashing red Major or minor recoverable error
Red Major or minor unrecoverable error
(Exception state or FATAL)
Network Status Off No power or no IP address
5
2
EtherNet/IP Green Online, one or more connections estab-
lished (CIP Class 1 or 3)
6
Flashing green Online, no connections established
Red Duplicate IP address, FATAL error
7
Flashing red One or more connections timed out (CIP
8 Class 1 or 3)
EtherNet/IP Off No link
3 4
Ethernet Link 1 Flashing green Receiving/transmitting Ethernet packets
and 2 at 100 Mbit
Flashing yellow Receiving/transmitting Ethernet packets
at 10 Mbit
SD Card Green Accessing SD card
5
Red Failure
Modbus-TCP Off Power off
6
Status Green Communicating with Modbus-TCP network
Flashing green Idle
Flashing red Transaction error or timeout
Red Fatal error
Modbus-TCP Off No link
7 8
Ethernet Link 1 Flashing green Receiving/transmitting Ethernet packets
and 2 at 100 Mbit
Flashing yellow Receiving/transmitting Ethernet packets
at 10 Mbit
Installation and Startup Summary
• A ach the linking device to the DIN-rail.
• Connect the device to the EtherNet/IP network.
• Connect the device to the Modbus-TCP network.
• Turn on the device (+24 V DC).
• Assign an IP address to the device using BOOTP-DHCP server.
• Start the Studio 5000 so ware.
• Search in the catalogue for the HMS-EN2MB-R.
• Add the device to the Ethernet network in the I/O confi gura on.
• In the general tab, assign a name and the previously chosen IP
address to the device.
• Confi gure the device using the confi gura on manager and down-
load the confi gura on to the device.
• Set up the EtherNet/IP communica on according to the device
confi gura on.
Technical Details
• Power supply:
24 V DC (-15% to +20%).
• Power consump on:
Maximum power consump on is 300 mA @ 24 V DC.
Typical power consump on: 150 mA @ 24 V DC.
• Surrounding temperature
70 degrees C @ 225 mA @ 24 V DC.
• Func onal Earth (FE):
Internal connec on to FE via DIN-rail or, if the DIN-rail can not be
used, via the power connector.
Note: Make sure the DIN-rail is properly connected to FE.
For maintenance and support, contact the HMS support department.
Contact informa on is available at the support pages on
www.anybus.com.
Further informa on and documents about this product can be found at
the product pages on www.anybus.com.
