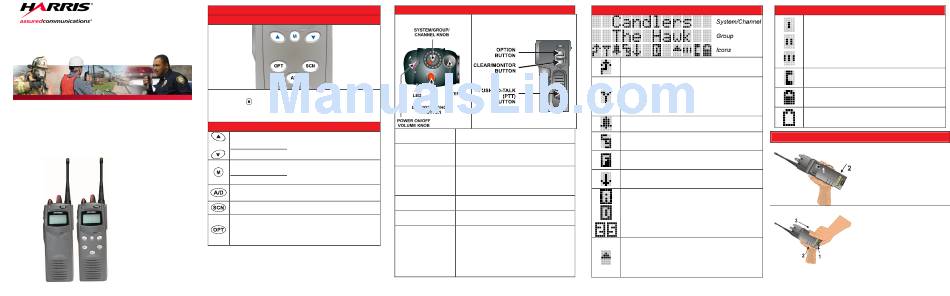

Harris P5100 Series Quick Manual

Quick Guide
P5100 Radio Keypad Functions
MM19557
(P5150 Model Only)
Rev. D, Jun/09
Locking/Unlocking Keypad
1. Press the button.
2. Within 1 second, press the Option button on the side of
the radio.
P5100 Radio Keypad Key Functions
Selects system, groups, or channels.
P5100 Series
Secondary Function: Changes the selection for an
item within a list.
Portable
Accesses the pre-stored menu.
Radios
Secondary Function: Activates a selected item within
a list, similar to an "Enter" key.
Adds/Deletes selected groups or channels from the
Scan list of the currently selected system.
Toggles the Scan operation ON and OFF.
Activates one of a number of programmable
software options, selected during the PC
programming. Programmable options include
high/low transmitter power and talkaround.
Copyright© 2004, 2006, 2007, 2009 Harris Corporation. All rights
P5100 Radio Controls
Top View Side View
Power On-Off/ Applies power to the radio and adjusts
Volume Knob the receiver's volume.
System/Group/ A 16 position rotary knob for selecting
Channel Control systems or groups/channels (set in
Knob programming).
Pre-programmed to select a pre-set
Emergency/ Home group/ system (Home) or declare an
Button emergency (only one can be assigned to
this button).
The Push-to-Talk (PTT) button is
PTT Button
pressed to transmit.
Pre-programmed to activate one
Option Button
software option.
In Trunked mode, the Clear/Monitor
button is used to: 1) exit the current
operation and 2) terminate special calls.
Clear/Monitor
In conventional mode the Clear/Monitor
Button
button is used to: 1) monitor channels
and 2) momentarily remove Channel
Guard decoding from a channel.
P5100 Display & Status Icons P5100 Display & Status Icons (continued)
Indicates radio is transmitting.
In trunked mode:
Steady - radio is transmitting/receiving a call.
Flashing - call has been queued.
In conventional mode:
Steady - a call is being received.
T99 Mode enabled.
Steady - Channel Guard (CG) enabled.
OFF - CG temporarily disabled.
Attach Battery Pack
®
Steady – EDACS trunked system in Failsoft™
mode.
Steady - selected group/channel set at low power.
OFF selected group/channel is set at high power.
Selected talk group/channel is operating in
Remove Battery Pack
Analog, Digital, or Project 25 (P25) mode.
ON (Animated, rotating) – Scan mode is enabled.
ON (Steady) – Scan temporarily disabled
(priority scan status icon is present).
OFF – Scan temporarily disabled (priority scan
status icon is not present).
Selected talk group/channel is a Priority 1, 2, or
"in the scan list" (lowest priority). The talk group
or channel isn't in the scan list if a priority icon
isn't associated with it. Icon is displayed in the
third character block from the right.
Steady – special call select/entry mode
(Individual or Telephone Interconnect).
Steady – gauges approximate remaining battery
charge.
Flashing – low battery.
Battery Packs
1. Align the tab at top of the
battery pack with the slot
at the top of the radio.
2. Press down on the
bottom of the battery until
it clicks into place.
1. Press latch.
2. Lift from bottom.
3. Slide back.
