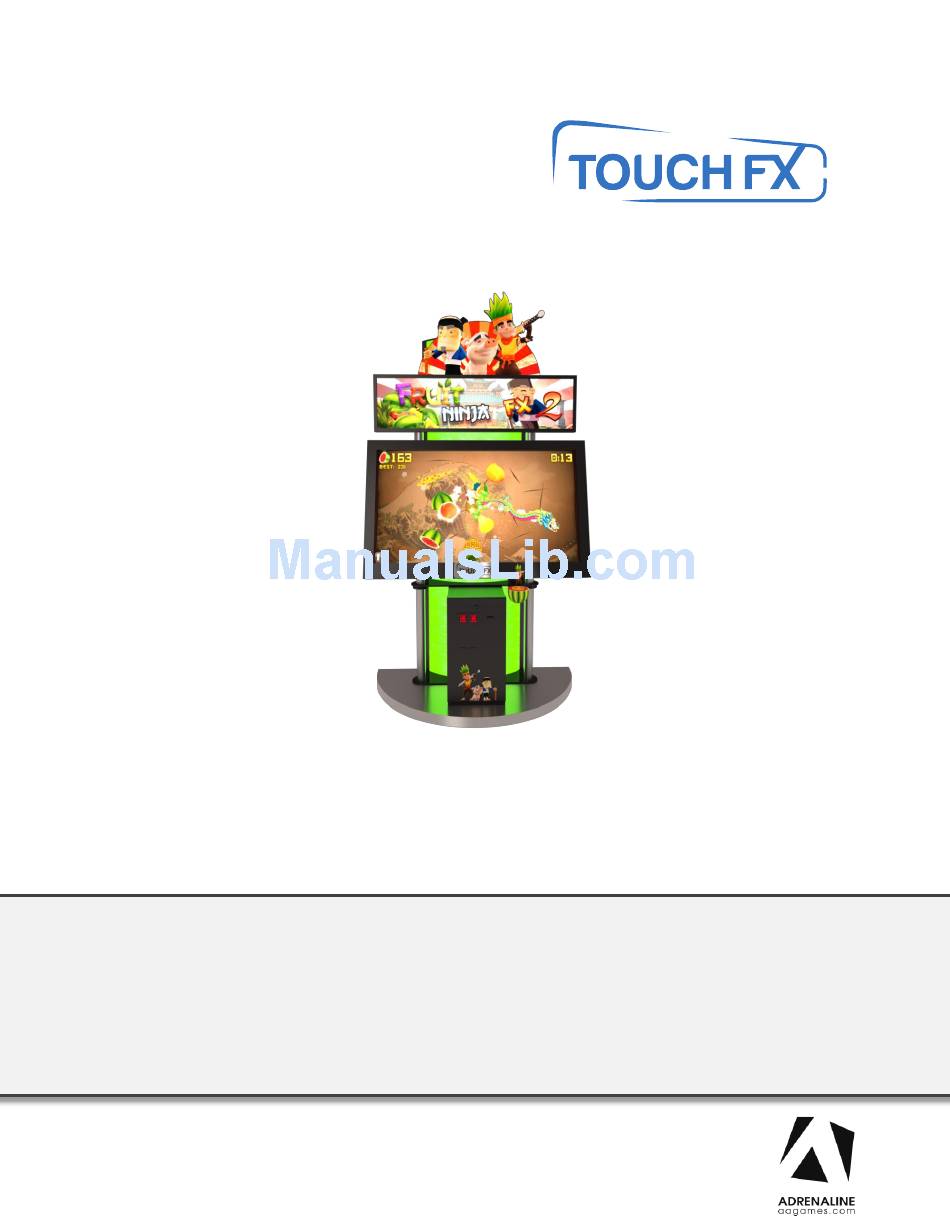

- Page 1 TFX1 – Fruit Ninja FX 2 FN-46-1020 Operation & Service Manual Version 1.0 * Read this manual before use...
-
Page 2: General Remark
If you encounter any difficulties or if you need support on how to update and/ or install your TFX1 product, we invite you to contact your local distributor or reach us at support@aagames.com or by calling our support line +1-450-824-1671 Adrenaline Amusements Team Adrenaline Amusements 1150 Levis, Suite 302 Terrebonne, Qc... -
Page 3: Table Of Contents
TFX1 - Fruit Ninja FX 2 Manual V1.0 Table of Contents Contents General Remark ....................2 Table of Contents ....................3 Chapter 01 - Preface ................... 5 Precaution for Game Operation ....................5 Safety ............................6 Environmental Conditions ......................6 Chapter 02 - Game Features ................ - Page 4 TFX1 - Fruit Ninja FX 2 Manual V1.0 I/O Board Troubleshooting ......................... 19 Touchscreen Troubleshooting ......................20 Chapter 07 - Parts ..................... 23 Screen Assembly TF-00-1010 ....................23 Monitor Parts, Back ........................24 Cabinet Parts ..........................25 Door Assembly TF-00-1020 ....................... 26 Cash Box Parts ...........................
-
Page 5: Chapter 01 - Preface
Do not block cooling vents. Precaution for Game Operation Adrenaline Amusements Inc. assumes no liability for injuries incurred while playing our games. Operators should be aware that certain health and physical conditions may make people susceptible to injury when playing video games. -
Page 6: Safety
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 01 - Preface Safety To avoid electrical shock, unplug the cabinet before performing installation or service procedures. If a power cord is damaged, it must be replaced by the equivalent power cord available from your distributor. Adrenaline Amusement Inc. -
Page 7: Chapter 02 - Game Features
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 02 - Game Features Chapter 02 - Game Features Fruit Ninja FX 2 is a juicy action game enjoyed by millions of players around the world, with squishy, splatty and satisfying fruit carnage! Become the ultimate bringer of sweet, tasty destruction with every slash. -
Page 8: Chapter 03 - Unit Features
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 03 - Machine Features Chapter 03 - Unit Features Hardware Features Multi-touch Screen, Detects 6 inputs Ticket dispenser 46’’ Full HD Monitor Cabinet Facts Cabinet Dimensions Length = 48’’ / 1.2m Depth = 24’’... -
Page 9: Chapter 04 - Unit Installation
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 04 - Machine Installation Chapter 04 - Unit Installation Assembling your TFX1 Unit 1. Carefully remove the Cabinet from the shipping container, giving yourself enough space. 2. Move the cabinet to the desired location. 3. -
Page 10: Chapter 05 - Wireless Setup, Operator Menu
Wireless Setup - Once the installation is completed, the unit will boot into Windows. - The game attractmode will start after displaying the Adrenaline Amusements screen for 150 seconds. - When the attractmode is playing, open the coin door and press the Operator button. -
Page 11: The Operator Menu
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 05 - Operator Menu, Game Setup The Operator Menu To access the Admin Menu, use the Operator Button located inside the coin door. To navigate the menu, press the option you want to change, it will highlight in yellow. You can then use the arrows on the right side of the menu to change the highlighted option’s value. - Page 12 TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 05 - Operator Menu, Game Setup Operator Menu Values What it does Adjusts the number of credits required to play. “0” puts Credits per Game 0 – 20 the unit in free play mode. Adjusts the in-game audio volume.
-
Page 13: Chapter 06 - Service & Repair
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair Chapter 06 - Service & Repair Computer Connections, ADR-11-1002 Network to Router Touchscreen HDMI to Monitor Blue Dongle Sound to Speaker USB to I/O Board Power Button 120V / 240V Selection AC Inlet Power Switch... -
Page 14: Troubleshooting
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair Troubleshooting * NOTE: When requesting a warranty replacement you will be asked to give the unit’s serial number from the back of the unit. Video Troubleshooting Power problem, check the power to the monitor. -
Page 15: Monitor Troubleshooting
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair Using the arrows, scroll down to the Restore on AC/Power Loss option and press the “Enter” key. Using the arrows, select the Power On option and press the “Enter” key. - Page 16 TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair If there’s a label in the lower left corner, you have an Effinet monitor (See Fig 4). Fig. 4 If there is no label on the back of your monitor you have a Samsung monitor.
- Page 17 TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair You must place your remote control straight up against the glass aiming down in the lower right hand corner of the screen, usually 6 inches from the corner (See Fig 5). Framing Problems, Wrong TV Settings / Samsung Monitors.
-
Page 18: Audio Troubleshooting
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair Audio Troubleshooting Increase the volume in the game by pressing the Operator Button and adjusting the volume options in the Operator Menu. Increase the monitor’s volume by using the monitor’s remote control. If using a TFT or a Samsung model monitor. -
Page 19: Tfx1 - Fruit Ninja Fx 2 Manual V1.0
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair You will need to restore your hard drive by following these steps. Unplug the USB cable between the monitor and the cabinet and plug in a USB keyboard. ... -
Page 20: Touchscreen Troubleshooting
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair This usually happens when the 4 pin connectors are swapped in the wrong order or one of the fuses has blown on the I/O board (See Fig The Ticket Distributer Keeps Turning Fig. - Page 21 TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair Fig. 8 If the serial number appears on the upper right of the box, (See Fig 9) you must press Calibration, and then press each of the + when asked Fig.
- Page 22 TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 06 – Service & Repair Fig. 10 Fig. 11 If those methods do not resolve your issues, you will need to replace your touchscreen. * NOTE: Do not remove any parts other than the corner brackets from the touchscreen or you may void your warranty.
-
Page 23: Chapter 07 - Parts
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 07 - Parts Chapter 07 - Parts Screen Assembly TF-00-1010 Part Description Part Number Monitor Back Frame TF-01-1020 46’’ Monitor ADR-10-1001 Tempered Glass TF-10-1220 Multi-touch Overlay ADR-10-1002 Monitor Front Frame TF-01-1030... -
Page 24: Monitor Parts, Back
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 07 - Parts Monitor Parts, Back Part Description Part Number Monitor Support TF-01-1050 PC-BOX, Computer – FN2 ADR-11-1007 Melon Support Arm TF-00-1600 Restore USB Flash Drive FN2 – E350M1 ADR-11-2011 Restore USB Flash Drive FN2 – A75 ADR-11-2012 NFC USB Board ADR-11-2015... -
Page 25: Cabinet Parts
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 07 - Parts Cabinet Parts Part Description Part # Part Description Part # 46’’ Monitor with Enclosure ADR-10-1003 Plastic Top TF-07-100 (W/O Touchscreen Overlay) Plastic Back Panel PTEG Top Tube TF-01-1470 TF-07-1100 (Behind #10) ADR-01-... -
Page 26: Door Assembly Tf-00-1020
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 07 - Parts Door Assembly TF-00-1020 Part Description Part Number Coin Door - Standard – Coin + Ticket TF-01-1090 Dual Front Plate… ADR-40-0168-00 Ticket Feeder ADR-42-1337-00 Blank Panel for Coin Acceptor (Optional) TF-04-001 LED Low Ticket ADR-L20691-ND... -
Page 27: Cash Box Parts
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 07 - Parts Cash Box Parts Part Description Part Number Low Ticket Switch ADR-95-4255-00 Power Supply 5V / 12V ADR-80-0064-00 Miniature Switch (Operator Button) ADR-49-0577-01 Cashbox Black Plastic ADR-42-1102-10 I/O Board ADR-04-1200 Ticket Bin TF-01-1280... -
Page 28: Decal Prints & Wood Parts
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 07 - Parts Decal Prints & Wood Parts Part Description Part Number Logo A ADR-09-1001 Logo Adrenaline Floor TFX1 ADR-09-1003 Fruit Ninja 2 Trio Sticker ADR-09-2004 AAGames Dome Sticker ADR-09-2008 Decal Backlit Fruit Ninja FX 2 ADR-09-2019 Floor Assembly TF-02-2000... -
Page 29: Header Parts
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 07 - Parts Header Parts Part Description Part Number LED Strip Light ADR-08-1005 Top Header Fruit Ninja 2 ADR-09-2022 LED Signage Panel ADR-09-1017 Plaque Display TF-01-1480 Support Display TF-01-1452 Mocap Corner LED Panel ADR-VCC9459 LED Strip Light Y Connector ADR-08-1025... -
Page 30: I/0 Board Tf-04-1200
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 07 - Parts I/0 board TF-04-1200 Link To Operator Button Not Used To Low Ticket Switch To Ticket Dispenser To Coin Door and Meters... -
Page 31: Cabling
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 07 - Parts Cabling Part Description Part Number RJ45 Female to Female Coupler ADR-CN-RJ45-FF 3 Feet Cate5e RJ45 Cable ADR-CAT5E-03BK 7 Feet Cate5e RJ45 Cable ADR-CAT5E-07BK 6 Foot HDMI Cable ADR-HDMI-140-06 10 Feet USB “AB”... -
Page 32: Chapter 08 - Diagrams & Schematics
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 08 – Diagrams & Schematics Chapter 08 – Diagrams & Schematics Control Card... -
Page 33: Wiring Diagrams
TFX1 - Fruit Ninja FX 2 Manual V1.0 Chapter 08 – Diagrams & Schematics Wiring Diagrams...
