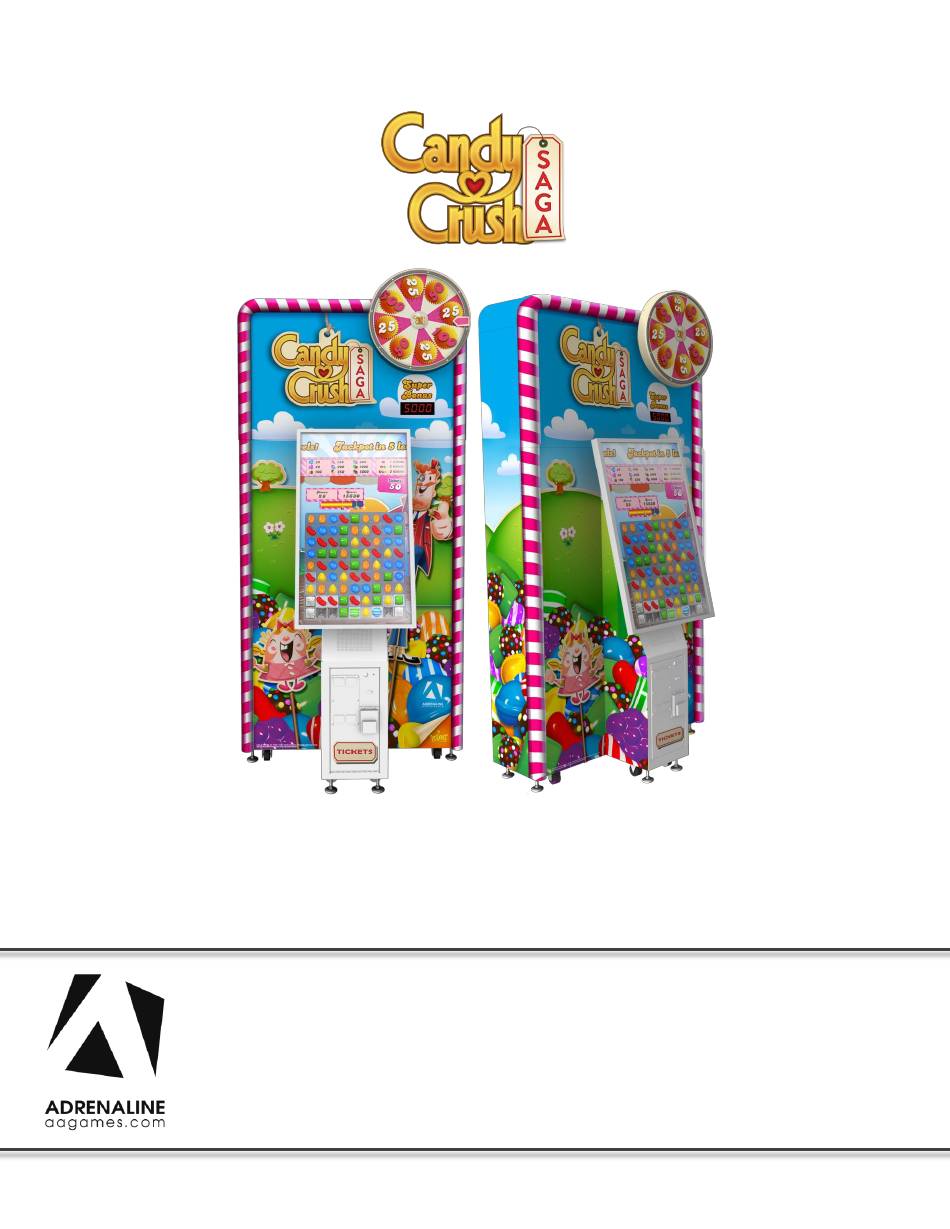

Candy Crush (Ticket)

CC-42-1001

Operation & Service Manual

Version 1.0

* Read this manual before use

Need help?

Do you have a question about the Candy Crush and is the answer not in the manual?

Questions and answers

Summary of Contents for Adrenaline Amusements Candy Crush

Page 1 Candy Crush (Ticket) CC-42-1001 Operation & Service Manual Version 1.0 * Read this manual before use...
Page 2 General Remark If you encounter any difficulties or if you need support on how to update and/ or install your Candy Crush product, we invite you to contact your local distributor or reach us at support@aagames.com or by calling our support line +1-450-824-1671...
Page 3 Cabinet Facts ..........................8 Voltage ............................9 Chapter 04 - Unit Installation ................10 Assembling your Candy Crush Tickets Unit ................10 Chapter 05 – Operator Menu ................13 Operator Menu ......................... 13 Chapter 06 - Service & Repair................15 Computer Connections ......................
Page 4 Candy Crush Ticket Manual V1.0 Wheel Assembly ........................21 Computer Parts ......................... 22 Cabling ............................22 Wiring Harness .......................... 22 Misc. Parts ..........................23 I/0 board LC-04-1001 ........................ 24 Chapter 08 – Diagrams & Schematics ..............25 Power Distribution ........................25 IO Board Wiring Diagram ......................
Page 5 Chapter 01 - Preface Chapter 01 - Preface Please read this page before preparing your Candy Crush product for game play. The following safety instructions apply to all game operators and service personnel. Specific warnings and cautions will be included throughout this manual.
Page 6 Candy Crush Tickets Manual V1.0 Chapter 01 - Preface Safety To avoid electrical shock, unplug the cabinet before performing installation or service procedures. If a power cord is damaged, it must be replaced by the equivalent power cord available from your distributor.
Page 7 Win a lot of tickets! How to Play  Explore the sweet and colourful world of Candy Crush Saga in this fun match-3 game!  Switch and match your way through 15 of levels in this delicious puzzle adventure.  100% Skill game.
Page 8 Candy Crush Tickets Manual V1.0 Chapter 03 - Unit Features Chapter 3 – Unit Features Hardware Features  Multitouch Screen  Ticket Bonus Motorized Wheel  LED Adjustable Super Bonus Cabinet Facts Cabinet Dimensions Depth = 28,1’’ / 0,71m Width = 46’’ /1,18m Shipping Dimensions Width = 50”...
Page 9 Candy Crush Tickets Manual V1.0 Chapter 03 - Unit Features Voltage Voltage Operating 110V AC 4 AMP 220V AC 2 AMP...
Page 10 Candy Crush Tickets Manual V1.0 Chapter 04 - Unit Installation Chapter 04 - Unit Installation Assembling your Candy Crush Tickets Unit 1. Carefully remove the 2 Cabinet parts from the shipping container, giving you enough space. 2. Move the bottom cabinet to the desired location.
Page 11 Candy Crush Tickets Manual V1.0 Chapter 04 - Unit Installation 4. Before installing the upper cabinet, remove both back service doors, locate the 5 bolt holes on the bottom cabinet and the 5 bolts inserts on the upper cabinet. 5. ** 2 persons needed here** Install the upper cabinet on the bottom one, align the bolt holes with the bolt inserts, affix and tighten the 5 bolts.
Page 12 Candy Crush Tickets Manual V1.0 Chapter 04 - Unit Installation 6. From the upper cabinet, find the 3 cables that need to be connected to the bottom cabinet. Connect the Power Supply AC cable from the top cabinet to AC the power bar.
Page 13 Candy Crush Tickets Manual V1.0 Chapter 05 –Operator Menu Chapter 05 – Operator Menu Operator Menu Access the Operator Menu by pressing the switch button located inside the coin door. Fig. 4...
Page 14 Candy Crush Tickets Manual V1.0 Chapter 05 –Operator Menu Operator Menu Values What it does Adjusts the number of credits required to play. “0” Credits Per Game 0 – 20 sets the unit in free play mode. Adjusts the in-game audio volume. “0” will mute Game Audio Volume 0 –...
Page 15 Candy Crush Tickets Manual V1.0 Chapter 06 – Service & Repair Chapter 06 - Service & Repair Computer Connections...
Page 16 Candy Crush Tickets Manual V1.0 Chapter 06 – Service & Repair Troubleshooting * NOTE: When requesting a warranty replacement you will be asked to give the unit’s serial number from the back of the unit. Video Troubleshooting change between Portrait...
Page 17 Candy Crush Tickets Manual V1.0 Chapter 06 – Service & Repair Audio Troubleshooting Increase the volume in the game by pressing the Operator Button and adjusting the volume options in the Operator Menu. You might also Quit the game to the desktop and increase the volume via the Speaker icon.
Page 18 Candy Crush Tickets Manual V1.0 Chapter 07 – Parts Chapter 07 - Parts Cabinet Parts Part Description Part # Wood Cabinet CA-02-1021 LED Digits Display INV-14-1024 LED Digits Board CA-04-1200 42” Touchscreen Monitor CA-10-1001 Touchscreen only CA-10-1001-TCH Speaker ADR-50-9986-00 Ticket Dispenser...
Page 19 Candy Crush Tickets Manual V1.0 Chapter 07 – Parts Electronics Part Description Part Number I/O Board LC-04-1001 SuzoHapp 5V/12V Power Supply ADR-80-021-00 Computer INV-11-CT-CPU Audio Board Amplifier INV-14-0005 SuzoHapp 12V/10A Power Supply ADR-80-0215-00 12V Computer Power Supply INV-14-0006...
Page 20 Candy Crush Tickets Manual V1.0 Chapter 07 – Parts Thermoplastic Part Description Part Number Kit of 2 side CA-09-1002 Top Panel CA-09-1003...
Page 21 Candy Crush Tickets Manual V1.0 Chapter 07 – Parts Wheel Assembly Part Description Part Number Wheel Cover CA-07-0003 Printed Wheel CA-09-1001 Motor Case CA-01-0001 Wheel Plate CA-01-0003 12V Motor CA-14-1001 Motor HUB CA-14-1002 Magnet CA-D61AD-P 10X LED squared puck INV-14-1026...
Page 22 Candy Crush Tickets Manual V1.0 Chapter 07 – Parts Computer Parts Part Description Part Number Motherboard AsRock QC5000 INV-11-1011 PICO-PSU INV-11-1013 Hard Drive with OS & Game INV-11-1014 USB restore disk INV-11-2001 Orange USB dongle TF-04-1211 12V 5A Power Supply...
Page 23 Candy Crush Tickets Manual V1.0 Chapter 07 – Parts Misc. Parts Part Description Part Number Blank Panel for card swipe (optional) KA-04-001-00 12V 7-Digits Meter with bracket ADR-4-0754-07 Operator switch button ADR-49-0577-01 Low ticket Switch ADR-95-4225-00 Low ticket LED ADR-L20691-ND LED Strips 49”...
Page 24 Candy Crush Tickets Manual V1.0 Chapter 07 – Parts I/0 board LC-04-1001...
Page 25 Candy Crush Tickets Manual V1.0 Chapter 08 – Diagrams & Schematics Chapter 08 – Diagrams & Schematics Power Distribution...
Page 26 Candy Crush Tickets Manual V1.0 Chapter 08 – Diagrams & Schematics IO Board Wiring Diagram...
Page 27 Candy Crush Tickets Manual V1.0 Chapter 09 – Software Recovery Chapter 09 – Software Recovery If your unit Operating System and software needs to be restored please follow those instructions. The process takes 25-30minutes. If you use the Wireless network, your credentials will need to be re-entered and your Operator settings might needed to be adjusted if they were different from the default ones.
