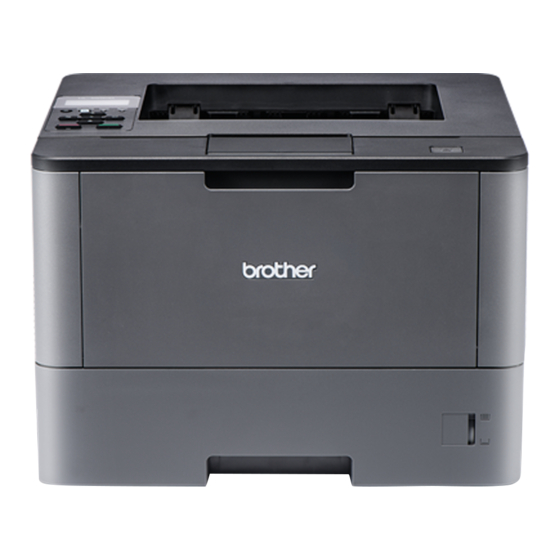

Brother HL-L5000D Quick Setup Manual

HL‑L5000D / HL‑L5100DN / HL‑L5200DW / HL‑L5200DWT /
HL‑L6200DW / HL‑L6200DWT
Quick Setup Guide

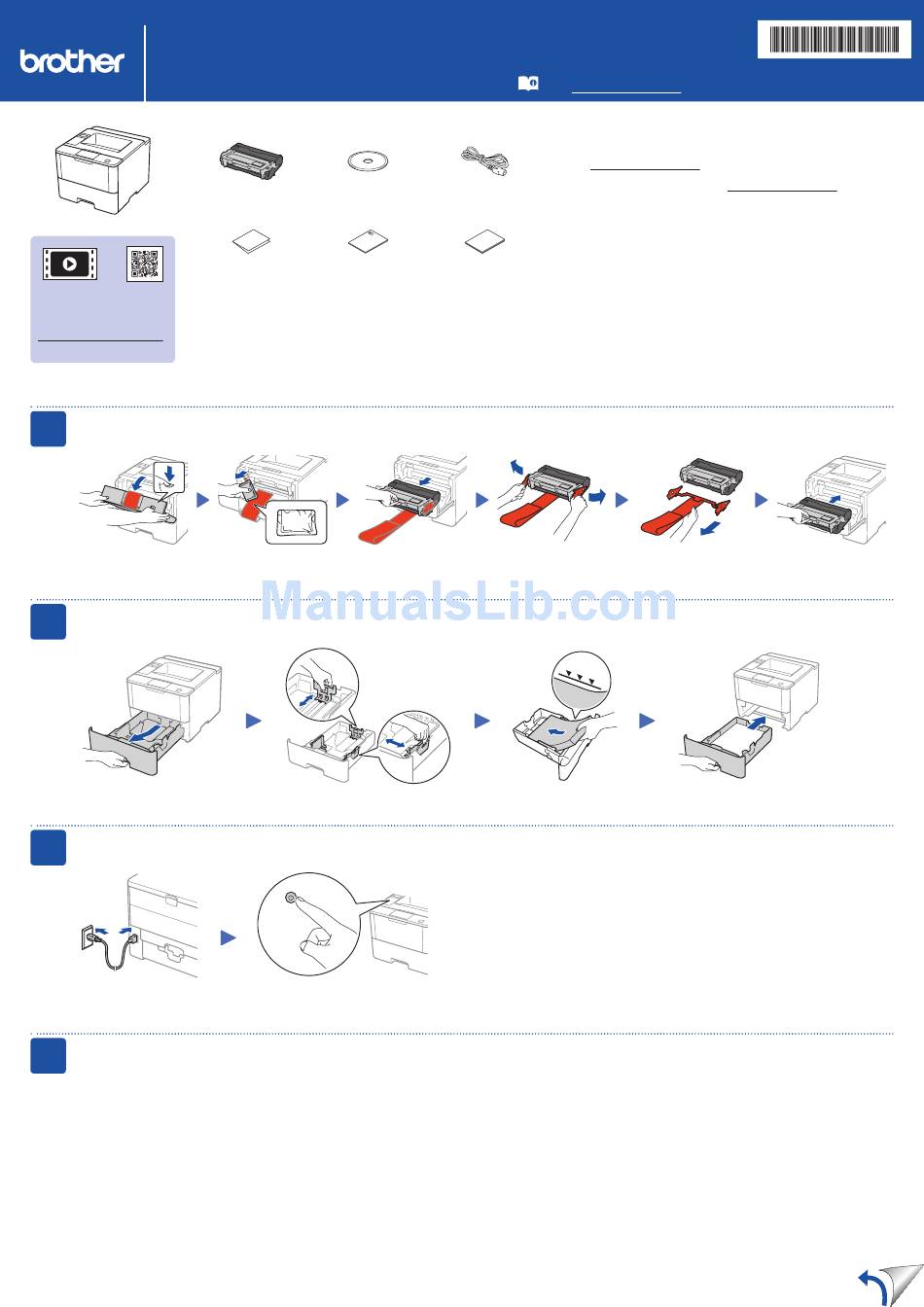

Unpack the machine and check the components
Drum Unit and Toner
Cartridge Assembly
Quick Setup Guide
Watch our Video FAQs for
help with setting up your
Brother machine:
solutions.brother.com/videos.
1
Remove the packing materials and install the drum unit and toner cartridge assembly
2

Load paper in the paper tray

3
Connect the power cord and turn on the machine
Back
4
Select your language (if needed)
1.
Press ▼ or ▲ to select [General Setup], and then press OK.
2.
Press OK to select [Local Language].
3.
Press ▼ or ▲ to select your language, and then press OK.
4.
Press Cancel.
Installation CD‑ROM
(pre‑installed)
Product Safety Guide
Discard the
silica gel pack.
Adjust the paper
guides.
Front
Read the Product Safety Guide first, then read this Quick
Setup Guide for the correct installation procedure.
Not all models are available in all countries.
The latest manuals are available at the Brother Solutions
Center: solutions.brother.com/manuals.
NOTE:
• Manuals in Spanish for this model are available on the Brother Solutions Center. (USA
only): solutions.brother.com/manuals
Los manuales en español de este modelo están disponibles en el Brother Solutions
Center. (Solamente en los Estados Unidos): solutions.brother.com/manuals
AC Power Cord
• The available connection interfaces vary depending on the model.
• You must purchase the correct interface cable for the interface you want to use.
USB cable
We recommend using a USB 2.0 cable (Type A/B) that is no more than 6 feet
(2 meters) long.
Reference Guide
Network cable
(For HL‑L5100DN / HL‑L5200DW(T) / HL‑L6200DW(T))
Use a straight‑through Category 5 (or greater) twisted‑pair cable.
Parallel cable
(For HL‑L5000D)
Use the parallel cable provided with the machine.
• The illustrations in this Quick Setup Guide show the HL‑L6200DW.
Remove the orange part.
