Icom BC-146 Instructions page 2

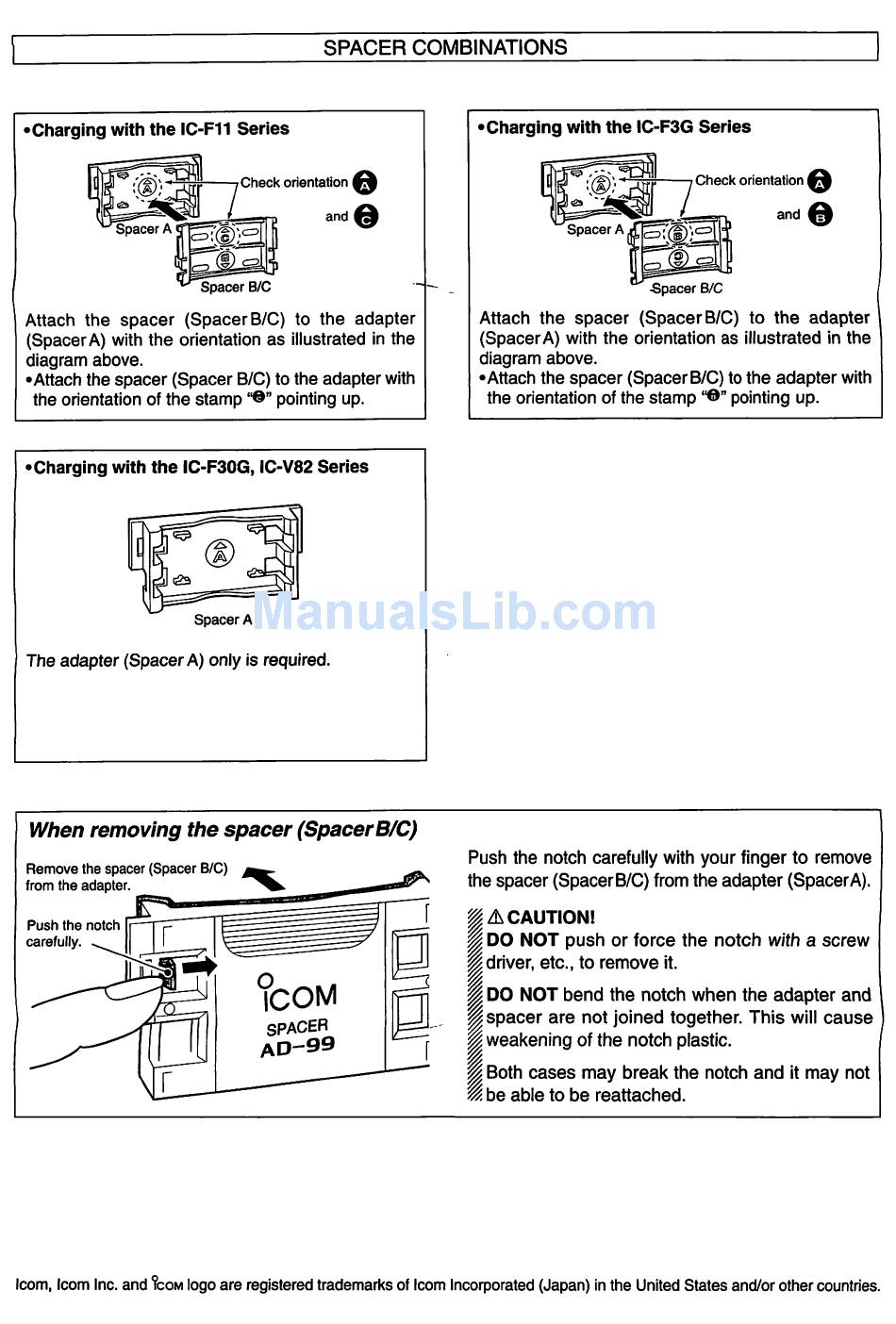

SPACER COMBINATIONS
•Charging with the IC-F11 Series
Check orientation ^m
and
Spacer B/C
Attach the spacer (Spacer B/C) to the adapter
(Spacer A) with the orientation as illustrated in the
diagram above.
•Attach the spacer (Spacer B/C) to the adapter with
the orientation of the stamp"©" pointing up.
•Charging with the IC-F30G, IC-V82 Series
Spacer A
The adapter (Spacer A) only is required.
When removing the spacer (Spacer B/C)
Remove the spacer (Spacer B/C)
from the adapter.
Push the notch
carefully.
•Charging with the IC-F3G Series
Check orientation I
and ^J
Attach the spacer (Spacer B/C) to the adapter
(Spacer A) with the orientation as illustrated in the
diagram above.
•Attach the spacer (SpacerB/C) to the adapter with
the orientation of the stamp "©"pointing up.
Push the notch carefully with your finger to remove
the spacer (SpacerB/C) from the adapter (SpacerA).
§ A CAUTION!
0 DO NOT push or force the notch with ascrew
pdriver, etc., to remove it.
P DO NOT bend the notch when the adapter and
0 spacer are not joined together. This will cause
p weakening ofthe notch plastic.
|| Both cases may break the notch and it may not
be able to be reattached.
Icom, Icom Inc. and?com logo are registered trademarks ofIcom Incorporated (Japan) in the United Statesand/or other countries.
