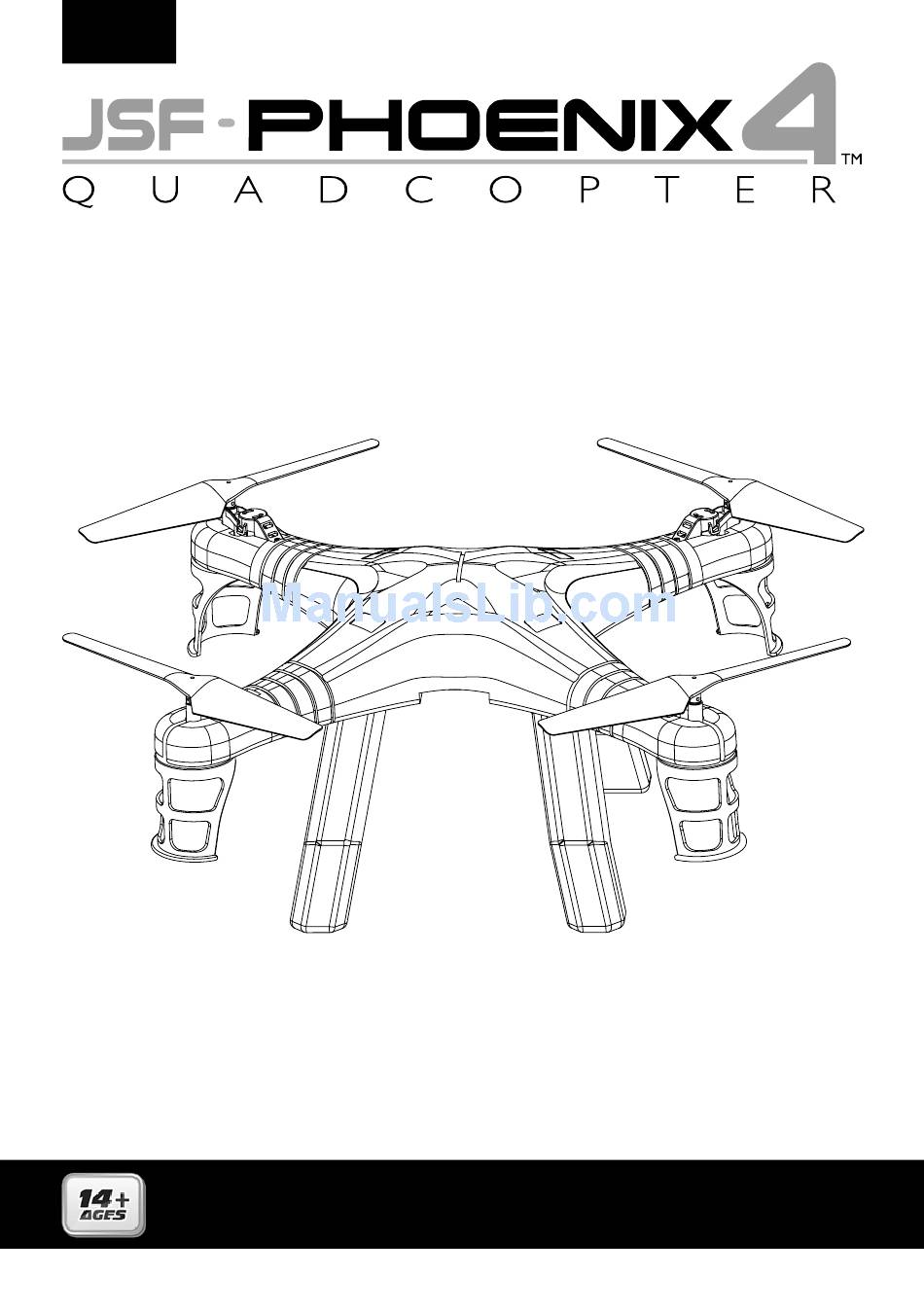

JSF PHOENIX4 Instruction Manual

4 ch 2.4g control with six axis gyro night guiding lights with speeds of up to 3 meters per second and a range of 100 meters
Hide thumbs

Advertisement

Table of Contents

TY5609
4 CH 2.4G CONTROL WITH SIX AXIS GYRO
NIGHT GUIDING LIGHTS
WITH SPEEDS OF UP TO 3 METERS PER SECOND
AND A RANGE OF 100 METERS.
• Intelligent R/C System
• Smooth flight performance
• The four-motor drive gives stable flight
• The Phoenix can complete several manoeuvres
• A 6-axis gyro and integrated altitude control ensures fine control in the air
Please read the instructions carefully before use.
Please keep the instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHOENIX4 and is the answer not in the manual?

Questions and answers

Related Manuals for JSF PHOENIX4

Summary of Contents for JSF PHOENIX4

  • Page 1 TY5609 4 CH 2.4G CONTROL WITH SIX AXIS GYRO NIGHT GUIDING LIGHTS WITH SPEEDS OF UP TO 3 METERS PER SECOND AND A RANGE OF 100 METERS. • Intelligent R/C System • Smooth flight performance • The four-motor drive gives stable flight •...
  • Page 2 Phoenix main Technical index NO.TY5609 2.4G Main Technical Index Phoenix: L:450mm x W:450mm x H:160mm Fuselage weight: 253g Flight range: 30-100M Charging time: 150 mins Flying time: Approx 5-7 mins Using Battery/Charger 1. Phoenix battery (built in): 7.4V/650 mAh Li-poly 2.
  • Page 3 dRone leGS SToRed in Tail Blade Replacement: baSe oF STYRene box 1. If a blade needs to be replaced, it is important to make sure that the same type of blade is used. Only replace type A blades with other type A, and type B with type B.

  • Page 4: Battery Charging Instructions

    baTTeRY chaRGinG inSTRUcTionS 1. To use the Phoenix, connect the battery using the fitting with two wires. 2. When charging, disconnect the battery from the Phoenix. Connect the three wire fitting to the charger (figure 2). The red LED is illuminated while charging. When fully charged (after approx.

  • Page 5: Safety Warning

    SaFeTY WaRninG Do not pick up the Phoenix when the rotors are spinning. When turning the Phoenix on, be careful to keep long hair away from the rotors. WaRninG: noT SUiTable FoR childRen UndeR 14 YeaRS old. Take off instructions: Connect the Phoenix power and place on level ground.

  • Page 6: Special Controls

    left/right The right stick moves the Phoenix left/right. in plenty of space, hold the right stick Forward forward and press the roll button. roll The Phoenix will do a forward roll. in plenty of space, hold the right stick backward back and press the roll button.

  • Page 7: Troubleshooting

    FlYinG PRacTice Below are some flying patterns that will help you practice flying your Phoenix Spin on Fly in a rectangle. When make a landing spot Fly in a figure the spot! you can go one way, try and see how close of eight! going the other! you can get!
  • Page 8 mainTenance & RePaiR: Clean with a soft, damp cloth. Remove the battery before storing. Do not submerge in water. PaRTS TY5609-01 TY5609-02 TY5609-03 TY5609-04 TY5609-05 TY5609-06 TY5609-07 TY5609-08 TY5609-09 TY5609-10 TY5609-11 TY5609-12 TY5609-13 TY5609-14 TY5609-15 For full list of all spare parts & accessories visit www.jsfdrones.com...
  • Page 9 noTeS: STicKeR PlacemenT...
  • Page 10 alWaYS RemembeR: You are legally responsible Don’t fly your unmanned for the safe conduct of aircraft within 50m of a each flight. Take time to person, vehicle, building understand the rules - failure or structure, or overhead to comply could lead to a groups of people at any criminal prosecution.
