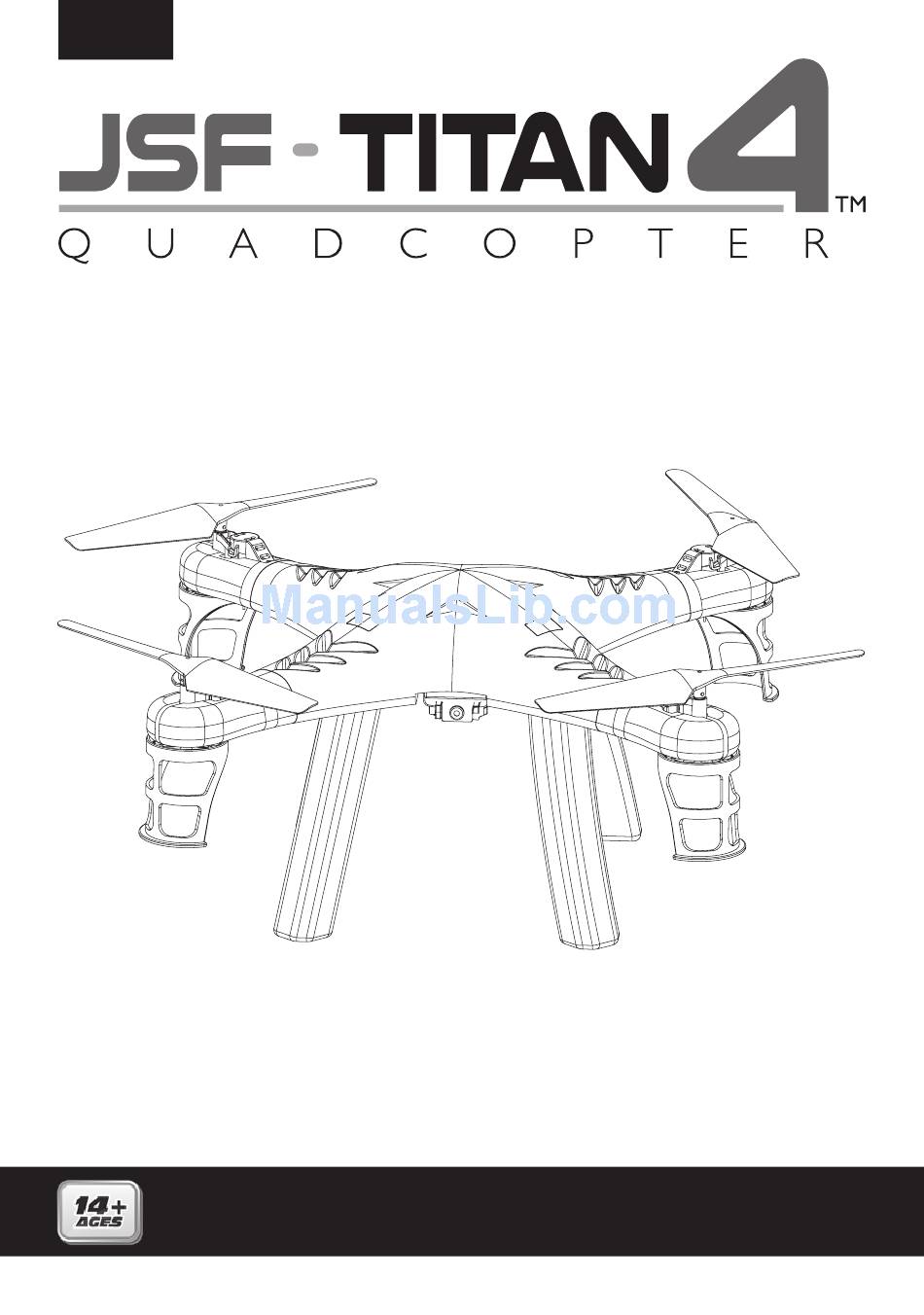

JSF Titan4 Instructions Manual

4 ch 2.4g control with six axis gyro night guiding lights and camera function with speeds of up to 3 meters per second and a range of 500 meters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Ty5608
4 CH 2.4G CONTROL WITH SIX AXIS GYRO
NIGHT GUIDING LIGHTS AND CAMERA FUNCTION
WITH SPEEDS OF UP TO 3 METERS PER SECOND
AND A RANGE OF 500 METERS.
• Intelligent R/C System
• Smooth flight performance
• The four-motor drive gives stable flight
• The Titan can complete several manoeuvres
• A 6-axis gyro and integrated altitude control ensures fine control in the air
Please read the instructions carefully before use.
Please keep the instructions for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Titan4 and is the answer not in the manual?

Questions and answers

Related Manuals for JSF Titan4

Summary of Contents for JSF Titan4

  • Page 1 Ty5608 4 CH 2.4G CONTROL WITH SIX AXIS GYRO NIGHT GUIDING LIGHTS AND CAMERA FUNCTION WITH SPEEDS OF UP TO 3 METERS PER SECOND AND A RANGE OF 500 METERS. • Intelligent R/C System • Smooth flight performance • The four-motor drive gives stable flight •...
  • Page 2 TiTan main Technical index NO.TY5608 2.4G Main Technical Index TITAN: L:450mm x W:450mm x H:160mm Fuselage weight: 264g Flight range: 300-500M Charging time: 150 mins Flying time: Approx 5-7 mins Using Battery/Charger 1. Titans battery (built in): 7.4V/650 mAh Li-poly 2.
  • Page 3 dROne leGS STORed in Tail Blade Replacement: BaSe Of STyRene BOx 1. If a blade needs to be replaced, it is important to make sure that the same type of blade is used. Only replace type A blades with other type A, and type B with type B. 2.

  • Page 4: Battery Charging Instructions

    BaTTeRy chaRGinG inSTRUcTiOnS 1. To use the Titan, connect the battery using the fitting with two wires. 2. When charging, disconnect the battery from the Titan. Connect the three wire fitting to the charger (figure 2). The red LED is illuminated while charging. When fully charged (after approx.

  • Page 5: Safety Warning

    SafeTy WaRninG Do not pick up the Titan when the rotors are spinning. When turning the Titan on, be careful to keep long hair away from the rotors. WaRninG: nOT SUiTaBle fOR childRen UndeR 14 yeaRS Old. Take Off instructions: Connect the Titan’s power and place on level ground.

  • Page 6: Special Controls

    left/right The right stick moves the Titan left/right in plenty of space, hold the right stick forward forward and press the roll button. roll The Titan will do a forward roll. in plenty of space, hold the right stick Backward back and press the roll button.

  • Page 7: Flying Practice

    flyinG PRacTice Below are some flying patterns that will help you practice flying your Titan: Spin on fly in a rectangle. When make a landing spot fly in a figure the spot! you can go one way, try and see how close of eight! going the other! you can get!
  • Page 8 mainTenance & RePaiR: Clean with a soft, damp cloth. Remove the battery before storing. Do not submerge in water. PaRTS TY5608-01 TY5608-02 TY5608-03 TY5608-04 TY5608-05 TY5608-06 TY5608-07 TY5608-08 TY5608-09 TY5608-10 TY5608-11 TY5608-12 TY5608-13 TY5608-14 TY5608-15 for full list of all spare parts & accessories visit www.jsfdrones.com...
  • Page 9 USinG The On-BOaRd VideO cameRa 1. Pressing the camera button starts the camera recording. Pressing the button a second time will stop the recording. 2. The light under the video camera will glow green when in standby mode and will flash red when the camera is recording.
  • Page 10 alWayS RememBeR You are legally responsible Don’t fly your unmanned for the safe conduct of aircraft within 50m of a each flight. Take time to person, vehicle, building understand the rules - failure or structure, or overhead to comply could lead to a groups of people at any criminal prosecution.
