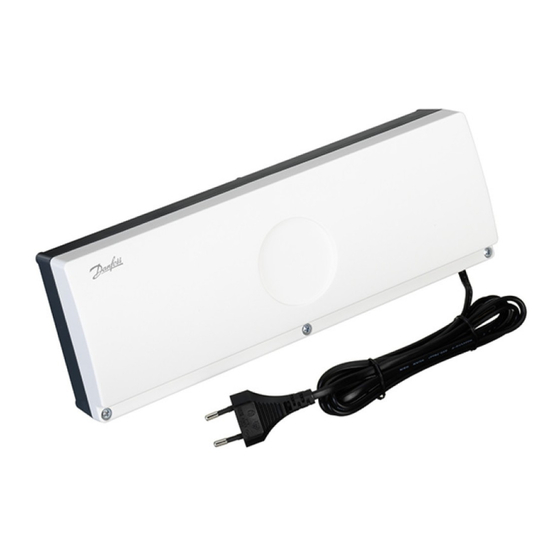

FH-WC Hardwired Underfloor Heating Connection Box
Installation Instructions
Specification
Code number
Hard-wired control box for
underfloor heating
Number of zone outputs for
thermal actuators
Maximum number of actuator
per zone
Zone outputs - voltage
Zone outputs (2) -
max rating
Night set-back channels (1)
Voltage free relay output for
interlocks
Voltage rating of interlock relay
Current rating of interlock relay
Power supply
Max ambient temperature
Dimensions, mm
(1) Night set-back requires separate time control
(2) Maximum 2 actuators per zone
FH-WC Hard Wired Box
System Schematic
ROOM THERMOSTATS
FH-WC WIRING BOX
THERMAL
ACTUATORS
MANIFOLD
Zone 1
Zone 2
Zone 3
FH-WC
088H012800
8
2
230 Vac, 50 Hz
3W
2
2 x SPST
230 Vac, 50 Hz
2 Amps, inductive
230 Vac, 50 Hz
50°C
314w x 110h x 61d
Cable Access: Thermostats, Interlock and Mains
Cable Access: Thermal Actuators
Mains in
Interlock
Interlock
Mounting
1
