Von Duprin RX-LC Installation Instructions

Switch retrofit kit

Advertisement

Quick Links

*941038-00*
941038-00
Switch Retrofit Kit
This kit includes the following parts:
{
RX
{
RX-LC
8-18 X 3/8" Flat Head Screw (2)

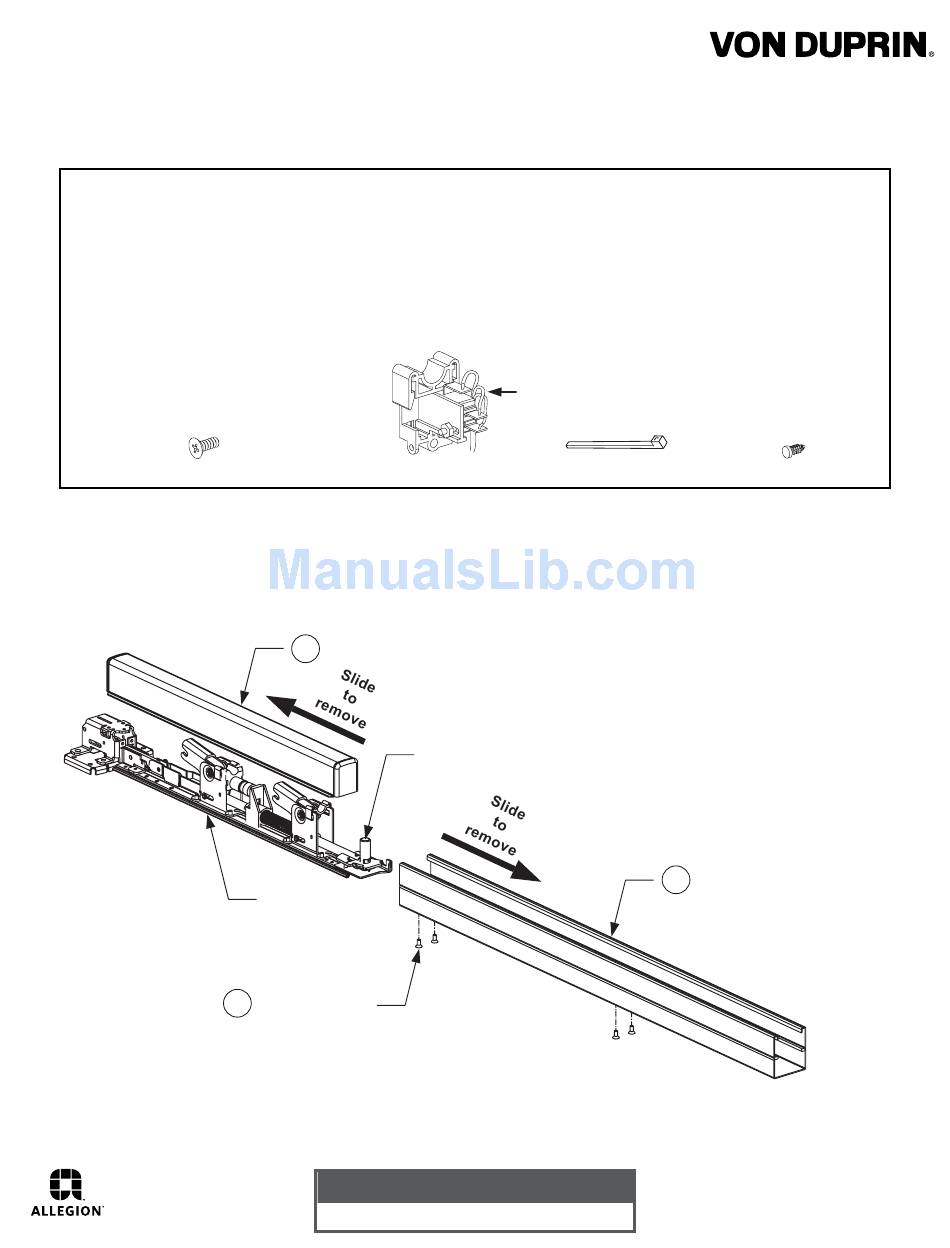

Step 1
Disassemble the device. (Remove from door if mounted.)
22 Device
RX/RX-LC/S1
This switch is intended for signaling purposes only and is rated for a
maximum 2 ampere resistive load at 24VDC/AC. Use with inductive
or capacitive loads (magnetic locks or solenoid devices) derates the
capacity of the switch. Consult the factory for assistance.
This switch is intended for systems using low current signals. The switch is
rated for a maximum of 50mA. Consult the factory for assistance.
Switch Assembly
3
Remove push bar.
Base Plate
Assembly
1
Remove screws.
Customer Service
1-877-671-7011
Standard (RX)
or low current (RX-LC)
Cable Tie 1.5"
Dogging assembly may not
be present on all devices.
www.allegion.com/us
Installation Instructions
Nylon Fastener
2
Remove mechanism case.
941038-00 Rev. 01/14-c
© Allegion 2014
Printed in U.S.A.

Advertisement

loading
Need help?

Need help?

Do you have a question about the RX-LC and is the answer not in the manual?

Questions and answers

Summary of Contents for Von Duprin RX-LC

  • Page 1 This switch is intended for systems using low current signals. The switch is RX-LC rated for a maximum of 50mA. Consult the factory for assistance. Standard (RX) or low current (RX-LC) Cable Tie 1.5" Nylon Fastener 8-18 X 3/8" Flat Head Screw (2)
  • Page 2 Step 1 Continued 33/35 Device If the push bar has 2 screws for end cap, replace with the 2 screws provided in this kit. Remove push bar. Dogging assembly may not be present on all devices. Remove mechanism case. Base Plate Assembly 33A/35A &...
  • Page 3 Step 2 Install Switch Remove & discard this bearing strip before snapping switch assembly onto rear guide base. 1 3/8" 1 7/8" Drill two1/8" holes through rear guide base only if holes are not present. Rear Guide Base Install Switch Assembly. Install nylon fastener.
  • Page 4 Step 3 Check the switch for proper actuation. Depress the bellcrank, the Release the bellcrank, the switch should actuate switch should actuate during this movement during this movement If adjustment is needed, loosen screw in the side of the switch assembly and slide switch forward RX actuator position or backward as necessary.

This manual is also suitable for:

S1Rx
