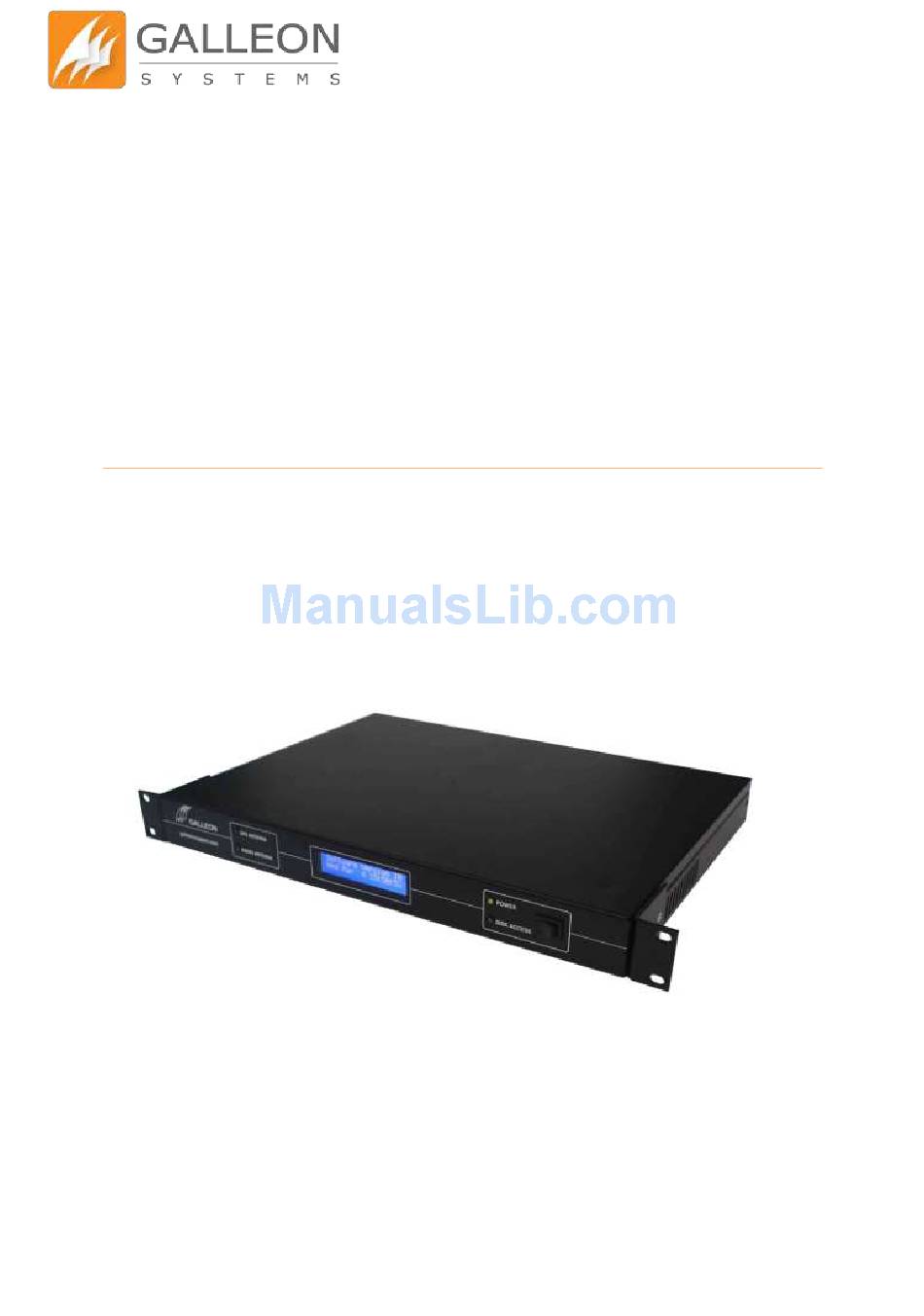

- Page 1 NTS-6001 WEB CONFIGURATION NTS-6001 VERSION 11 WEB CONFIGURATION MANUAL www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477...
-
Page 2: Table Of Contents
NTS-6001 WEB CONFIGURATION CONTENTS Introduction……………………………………………………………………………………………………………………………. 4 Web configuration features………………………………………………………………………………………… 4 Web configuration………………………..…………………………………………………………………………………………. 5 Logging-on to the unit……………………………………………………………………………………………………………… 5 Dashboard……………………………………………………………………………………………………………………………… 6 Network tab…………………………………………………………………………………………………………………………… 7 Networking……………………………………………………………………………………………………………… Teaming………………………………………………………………………………………………………………………. 8 Services tab…………………………………………………………………………………………………………………………… Service status………………………………………………………………………………………………………………. 9 SSH……………………………………………………………………………………………………………………………. 10 SNMP………………………………………………………………………………………………………………………… 10 NTP tab………………………………………………………………………………………………………………………………… 11 NTP status…………………………………………………………………………………………………………………. 11 Broadcast……………………………………………………………………………………………………………………... - Page 3 NTS-6001 WEB CONFIGURATION Administration tab…………………………………………………………………………………………………………………. 23 Restart………………………………………………………………………………………………………………………. 23 Shutdown………………………………………………………………………………………………………………… 23 Firmware update……………………………………………………………………………………………………… 24 Factory reset……………………………………………………………………………………………………………… 24 Software versions……………………………………………………………………………………………………… 25 Backup………………………………………………………………………………………………………………………. 25 Restore……………………………………………………………………………………………………………………… 26 Custom scripts…………………………………………………………………………………………………………… 27 Change password………………………………………………………………………………………………………. 28 Support……………………………………………………………………………………………………………………… 29 Advanced…………………………………………………………………………………………………………………… 30 Certificates……………………………………………………………………………………………………………. 30-32 Debug………………………………………………………………………………………………………………………….33 GPS antenna debug……………………………………………………………………………………………………. 33 Radio antenna debug………………………………………………………………………………………………….
-
Page 4: Introduction

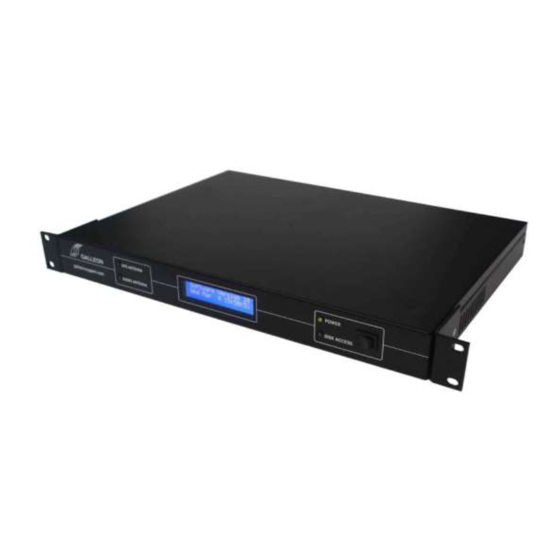

NTS-6001 WEB CONFIGURATION INTRODUCTION The NTS-6001 is a rack-mount time server based on an embedded Linux operating system and is designed to serve as a time source for medium to large companies. The rack-mount unit combines the ability to synchronise time across networks and peer multiple time servers, with the stability of a dedicated operating system to provide a stable and reliable time source. -
Page 5: Web Configuration
NTS-6001 WEB CONFIGURATION WEB CONFIGURATION LOGGING ON TO THE UNIT Using a web browser, such as Firefox, Chrome or Internet Explorer, navigate to the address of your unit. The address of your unit will use the following format: ‘https://<IP Addr>’ where <IP Addr> is the IP Address of your unit as shown on the front LCD. -
Page 6: Dashboard
NTS-6001 WEB CONFIGURATION DASHBOARD Upon successful login, you will be taken to the Configuration System Homepage. To the left side of the screen, you’ll find the navigation menu. Use this menu to work through the Status and Configuration for the unit. -
Page 7: Network Tab
NTS-6001 WEB CONFIGURATION NETWORK TAB NETWORKING This shows the current network settings, and allows you to customise them however you wish. To make them active the settings must be saved to flash and the system rebooted. Both Ethernet ports on the unit will be displayed. Port 0 (eth0) is the default primary port and Port 1 (eth1) is the secondary port. -
Page 8: Teaming
NTS-6001 WEB CONFIGURATION TEAMING This enables you to allow both Network cards to work together as one single card. This provides more bandwidth for the network and also allows for redundancy. When this feature is disabled, each network card remains separate and cannot pass data between each other, keeping both network connections secure. -
Page 9: Services Tab
NTS-6001 WEB CONFIGURATION SERVICES TAB SERVICE STATUS Here you can see the status of any of the services on the Network Time Server. Note: The clock services may be running, but it does not indicate that the physical clock is either connected and/or providing a time. -
Page 10: Ssh
NTS-6001 WEB CONFIGURATION This allows you to toggle SSH on/off to remotely access the unit's operating system, using software such as PuTTY. SNMP This allows for the configuration of SNMP. Here you can add custom information to the SNMP configuration. The MIBs can be downloaded from the unit itself or alternatively they can be found on the support site at galleonsupport.com for... -
Page 11: Ntp Tab
NTS-6001 WEB CONFIGURATION NTP TAB NTP STATUS This is where you can check the status of the NTP process and see the sources that this process is synchronised with, including the state of these sources. The host names or addresses shown in the remote column correspond to the server and peer entries listed in the configuration file;... -
Page 12: Broadcast
NTS-6001 WEB CONFIGURATION BROADCAST This allows you to set the unit to Broadcast and/or Multicast in addition to answering NTP requests, enabling these options does not stop the unit from responding to NTP requests. www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com... -
Page 13: Ntp Keys
NTS-6001 WEB CONFIGURATION NTP KEYS The NTP Keys section allows you to enter your pre-configured security keys to allow the unit to communicate with other devices on the network for various purposes. www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com... -
Page 14: Ntp Customisation
NTS-6001 WEB CONFIGURATION NTP CUSTOMISATION The NTP Customisation section provides a way to enter commands to customise the operation of the NTP Server. This enables peering, network based servers, authentication keys and other standard NTP features. www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com... -
Page 15: Certificate Tab
NTS-6001 WEB CONFIGURATION CERTIFICATE TAB VIEW CERTIFICATE Here you can see the currently installed certificate information for the Web Configuration panel. www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477... -
Page 16: Self-Signed Certificate
NTS-6001 WEB CONFIGURATION SELF-SIGNED CERTIFICATE Self-Signed Certificates allow the unit to sign itself. This process involves entering the required information and applying the generated certificate. Note: There are 3 different key lengths to choose from; 1024, 2048 and 4096. The larger the key length, the more secure it is. -
Page 17: Ssl Certificate
NTS-6001 WEB CONFIGURATION SSL CERTIFICATE SSL-Signed Certificates allow you to get a certificate signed by your CA (Certificate Authority). This process involves entering the required information, submitting the request to the CA, entering the response and applying the certificate. Note: There are 3 different key lengths to choose from; 1024, 2048 and 4096. The larger the key length, the more secure it is. -
Page 18: Logs Tab
NTS-6001 WEB CONFIGURATION LOGS TAB AUTHENTICATION LOG Below are Authentication Events (logs) for both SSH and Web Interface. Contains system authorisation information, including user logins and authentication mechanisms that were used. DAEMON LOG Below is a list of background Services logs (/var/log/daemon.log) – Contains information logged by the various background daemons that runs on the system. -
Page 19: Message Log
NTS-6001 WEB CONFIGURATION MESSAGE LOG Below is a complete list of all system messages (/var/log/messages) – This is the general system activity log. Everything is logged to this file including logins, authentication failed, anonymous logins, network connections, ntp info etc. -
Page 20: Gps Antenna Debug
NTS-6001 WEB CONFIGURATION GPS ANTENNA DEBUG This allows you to debug the GPS antenna by seeing what data they are sending to the unit. This will help identify any cabling/wiring or antenna issues. Debug lines are output with the newest line at the top and show the 20 most recent entries. -
Page 21: Network Tools Tab
NTS-6001 WEB CONFIGURATION NETWORK TOOLS TAB NETWORK TOOLS - PING This allows you to ping from the unit to test network connectivity. You can use any hostname or IPv4 or IPv6 address. Note: Hostname requires DNS Setup in Network settings. -
Page 22: Network Tools - Dns Lookup
NTS-6001 WEB CONFIGURATION NETWORK TOOLS – DNS LOOKUP This allows you to perform a DNS lookup from the unit to diagnose DNS lookups. www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477... -
Page 23: Administration Tab
NTS-6001 WEB CONFIGURATION ADMINISTRATION TAB RESTART After 60 seconds, the system will refresh back to the Homepage, providing the IP Address of your unit is set to static or remains the same on DHCP. If the IP Address is changed by DHCP upon the reboot, then you will need to obtain the new address displayed on the LCD Display of the unit. -
Page 24: Firmware Update
NTS-6001 WEB CONFIGURATION FIRMWARE UPDATE This is where you apply any firmware updates issued by us. The latest firmware update can be found on our support site at galleonsupport.com FACTORY RESET This will remove your customised configuration files and reset all settings to their Factory Defaults. -
Page 25: Software Versions
NTS-6001 WEB CONFIGURATION SOFTWARE VERSIONS This page shows the current version of the system Software packages. BACKUP This page allows you to back up the configuration data for the unit. A maximum of 10 backups can be stored on the unit, every new backup after this limit will overwrite the oldest one. -
Page 26: Restore
NTS-6001 WEB CONFIGURATION RESTORE This page allows you to restore any previous configuration backups you have taken. If you need to roll back to a previous backup, the unit will be restarted and after 60 seconds the Web Configuration System will refresh back to the Homepage, providing the IP Address of your unit is set to static or remains the same on DHCP. -
Page 27: Custom Scripts
NTS-6001 WEB CONFIGURATION CUSTOM SCRIPTS The pre-script box allows custom commands to be added to the unit. The commands entered here will run during the boot process. The post-script box allows custom commands to be added to the unit. The commands entered here will run after the system has completed booting. -
Page 28: Change Password
NTS-6001 WEB CONFIGURATION CHANGE PASSWORD This allows you to change the password for the Web Configuration System. The new password must be entered twice to verify that it has been entered correctly. Note: Password must be between 8 and 32 characters in length and contain uppercase, lowercase and numbers. -
Page 29: Support
NTS-6001 WEB CONFIGURATION SUPPORT This is where you can find useful links and information to obtain any support you may require, including instructions on what to send us if you are submitting a support ticket. Note: The links on the page will only work if the computer you are viewing the Web Configuration panel on is connected to the internet. -
Page 30: Advanced
NTS-6001 WEB CONFIGURATION ADVANCED This section shows you the various Advanced Options available on the unit; Certificates, Debugging, Diagnostics and Debug. CERTIFICATES Select and copy everything from the top box and go to your CA to enter the certificate request. The following example is using a Microsoft Active Directory Certificate Authority. - Page 31 NTS-6001 WEB CONFIGURATION Paste the Certificate Request generated by the unit and select the template as ‘Web Server’. Once the server has generated the certificate, download it as a Base 64 Encoded Certificate. The certificate chain is not required. www.galsys.co.uk...
- Page 32 NTS-6001 WEB CONFIGURATION After downloading the certificate, open it in a text editor such as notepad or notepad++. Select and copy everything and paste it into the second box on the SSL Certificate tab. Clicking ‘Apply Certificate’ will apply the certificate and restart the Web Server that runs the configuration panel.
-
Page 33: Debug
NTS-6001 WEB CONFIGURATION DEBUG In the Logs tab you can run debugging to show what data the antennas are sending to the unit. This can help diagnose any connection or synchronisation issues that may occur with the unit. This output can also be saved and sent to us if support is required, to aid us in diagnosing any issues with the unit or the setup. -
Page 34: Radio Antenna Debug
NTS-6001 WEB CONFIGURATION www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477... -
Page 35: Additional Information
NTS-6001 WEB CONFIGURATION ADDITIONAL INFORMATION The NTS-6001 contains a full implementation of the NTP version 4 standard. All of the features of this software are available through the NTP Customisation page of the Web Configuration System. Commands entered into this page are used as they would be in an ntp.conf configuration file. - Page 36 NTS-6001 WEB CONFIGURATION server address [options ...] peer address [options ...] broadcast address [options ...] manycastclient address [options ...] These four commands specify the time server name or address to be used and the mode in which to operate. The address can be either a DNS name or an IP address in dotted-quad notation.
- Page 37 NTS-6001 WEB CONFIGURATION For type m addresses (only), this command mobilises a pre-emptible manycast client mode association for the multicast group address specified. In this mode a specific address must be supplied which matches the address used on the manycastserver command for the designated manycast servers.
-
Page 38: Command Options
NTS-6001 WEB CONFIGURATION COMMAND OPTIONS autokey All packets sent to and received from the server or peer are to include authentication fields encrypted using the autokey scheme described in the Authentication Options page. This option is valid with all commands. - Page 39 NTS-6001 WEB CONFIGURATION true Force the association to assume truechimer status; that is, always survive the selection and clustering algorithms. This option can be used with any association, but is most useful for reference clocks with large jitter on the serial port and precision pulse-per-second (PPS) signals.
-
Page 40: Auxiliary Commands
NTS-6001 WEB CONFIGURATION AUXILIARY COMMANDS broadcastclient [novolley] This command enables reception of broadcast server messages to any local interface (type b) address. Ordinarily, upon receiving a message for the first time, the broadcast client measures the nominal server propagation delay using a brief client/server exchange with the server, after which it continues in listen-only mode. -
Page 41: Authentication Commands
NTS-6001 WEB CONFIGURATION AUTHENTICATION COMMANDS autokey [logsec] Specifies the interval between regenerations of the session key list used with the Autokey protocol. Note that the size of the key list for each association depends on this interval and the current poll interval. -
Page 42: Ntp Keys
NTS-6001 WEB CONFIGURATION NTP KEYS The NTP standard specifies an extension allowing verification of the authenticity of received NTP Packets, and to provide an indication of authenticity in outgoing packets. The specification allows any one of possibly 4 billion keys, numbered with 32 bit key identifiers, to be used to authenticate an association. -
Page 43: Snmp
NTS-6001 WEB CONFIGURATION SNMP For the full manual and information for SNMP, please visit: http://www.net-snmp.org/docs/man/snmpd.conf.html Most of the information reported by the Net-SNMP agent is retrieved from the underlying system, or dynamically configured via SNMP SET requests (and retained from one run of the agent to the next). -
Page 44: Process Monitoring
NTS-6001 WEB CONFIGURATION PROCESS MONITORING The hrSWRun group of the Host Resources MIB provides information about individual processes running on the local system. The prTable of the UCD-SNMP-MIB complements this by reporting on selected services (which may involve multiple processes). -
Page 45: Technical Support
TECHNICAL SUPPORT SUPPORT WEBSITE For NTS-6001 technical support, please go to galleonsupport.com and in the first instance use the ‘Knowledgebase’ to resolve technical issues. If you’re unable to resolve an issue using the Knowledgebase, submit a support ticket. Outline the problem with the device, providing as much information as possible and the Technical Support Team will contact you. - Page 46 NTS-6001 WEB CONFIGURATION Use the 'Knowledgebase' resource to resolve technical problems. To speak to the Technical Support Team, submit a ticket. www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477...
-
Page 47: Warranty And Maintenance
Galleon Systems warrants the time server to be free from defects in material and workmanship during a six-year period. The Warranty begins on the date the unit is shipped from Galleon Systems. Extended warranties are available by speaking to the Galleon Systems Sales Team.
