- Page 1 NTS-6002 HARDWARE MANUAL NTS-6002 VERSION 11 HARDWARE MANUAL www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477...
-
Page 2: Table Of Contents
NTS-6002 HARDWARE MANUAL CONTENTS NTS-6002 at a Glance ........................3 NTS-6002 Overview ........................4 Time Signals ..........................4 GPS/MSF Antennas ........................4 Independent Networks ........................ 4 Technical Specification ......................... 6 Getting Started ..........................7 Equipment Checklist ........................7 Standard Equipment ........................7 Additional Extras ......................... -
Page 3: Nts-6002 At A Glance

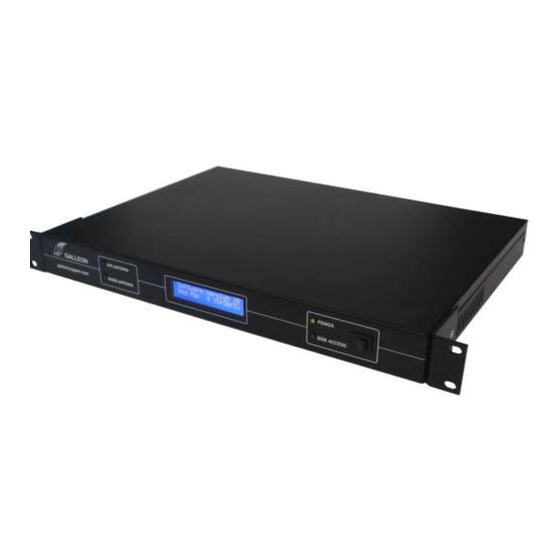

NTS-6002 HARDWARE MANUAL NTS-6002 AT A GLANCE www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477... -
Page 4: Nts-6002 Overview
However, they can be used indoors in the vicinity of a window. INDEPENDENT NETWORKS Featuring dual Ethernet ports, the NTS-6002 can synchronise time across two independent networks and, as a ‘stratum 1’ device, supplies time to all other devices connected to a network. It can serve time to thousands of devices, handling 500,000 NTP requests per minute. - Page 5 Upgradable flash memory allows for a unit in a locked down environment to receive software updates For security, the unit is locked down. All unnecessary services are disabled and the unit utilises HTTPS and TLS to protect passwords Figure 3 - NTS-6002-GPS www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com...
-
Page 6: Technical Specification
NTS-6002 HARDWARE MANUAL TECHNICAL SPECIFICATION Protocols - NTP & SNTP NTP v2 (RFC 1119) NTP v3 (RFC 1305) NTP v4 (RFC 2131) SNTP v3 (RFC 1769) SNTP v4 (RFC 2030) Configuration Across a Network via Secure Browser (https://) (RFC 2616) -
Page 7: Getting Started
NTS-6002 HARDWARE MANUAL GETTING STARTED EQUIPMENT CHECKLIST Standard Equipment NTS-6002 rack-mount unit. IEC power cable. GPS or MSF or DCF or WWVB antenna. * Junction Box and IDC Cable Tool. Mounting bracket and fixing for antenna. -
Page 8: Installation
You’re now ready to connect the antenna [see fig 8 for GPS and fig 9 for Radio]. Connect the antenna cable to the input port marked ‘Antenna’ [refer to page 3 - NTS-6002 ‘At a Glance’ – for guidance]. For optimum GPS antenna performance, mount on a roof. For optimum Radio antenna performance, mount on a roof and point towards correct transmitter.*... - Page 9 NTS-6002 HARDWARE MANUAL Figure 8 - GPS Antenna Figure 9 - Radio Antenna Extending the cable [see pages 10-13 for additional information] - If you are extending the cable to a length of 500m or more then you will need an extra power source, located either on the roof, or accessible from the roof.
-
Page 10: Wiring The Unit
NTS-6002 HARDWARE MANUAL WIRING THE UNIT Extending the GPS antenna with Cat5e/Cat6 cable 15 Way D-Type Pin Cable Colour Green/White Green Brown Brown/White Blue Blue/White www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477... -
Page 11: Extending The Gps Antenna With 8-Core Cable
NTS-6002 HARDWARE MANUAL Extending the GPS antenna with 8-core cable 15 Way D-Type Pin Cable Colour Yellow Green Black Blue Brown www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477... -
Page 12: Radio - Msf/Dcf/Wwvb
NTS-6002 HARDWARE MANUAL RADIO – MSF/DCF/WWVB Extending the Radio antenna with Cat5e/Cat6 cable 15 Way D-Type Pin Cable Colour Orange Brown Brown/White www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477... -
Page 13: Extending The Radio Antenna With 8-Core Cable
NTS-6002 HARDWARE MANUAL Extending the Radio antenna with 8-core cable 15 Way D-Type Pin Cable Colour Yellow Black www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477... -
Page 14: Configuration
NTS-6002 HARDWARE MANUAL CONFIGURATION LCD STATUS After connecting all components, power up the device for it to begin running the necessary configuration processes. The LCD display will activate and show the following: LCD INITIALISED ASMINT DISPON 20M Next, the unit will check for data coming into the serial connector:... -
Page 15: Set The Ip Address Manually
NTS-6002 HARDWARE MANUAL SET THE IP ADDRESS MANUALLY To set the IP Address of the NTS-6002 manually, first you must plug a standard USB keyboard into the device before powering on. Then, do the following: Type D Press Enter Set the Edit DHCP to N... -
Page 16: Technical Support
TECHNICAL SUPPORT SUPPORT WEBSITE For NTS-6002 technical support, please go to galleonsupport.com and in the first instance, use the ‘Knowledgebase’ to resolve technical issues. If you’re unable to resolve an issue using the Knowledgebase, submit a support ticket. Outline the problem with the device, providing as much information as possible, and the Technical Support Team will contact you. - Page 17 NTS-6002 HARDWARE MANUAL Figure 11 - Use the 'Knowledgebase' resource to resolve technical problems. Figure 12 - To speak to the Technical Support Team, submit a ticket. www.galsys.co.uk TEL: +44 (0) 121 608 4433 galleonsupport.com FAX: +44 (0) 121 608 4477...
-
Page 18: Warranty And Maintenance
Antennas should not be positioned in the vicinity of instruments likely to cause signal interference, for example, air conditioning systems. The NTS-6002 device is a ‘set it and forget it’ device, but external antennas should be checked regularly, particularly after bad weather. Cleaning of the time server device should be done with a dry, anti-static cloth to remove dust.
