Parrott ®
TalkPro Switch
System
User Guide
• Universal Compatibility
• Use One Headset For Computer
And Telephone Operations And
Applications
TalkPro I
TalkPro II
Part #: 201032A
A/W#: 201033A
Art size: 16" x 5.25"
Fold size: 4" x 5.25"
Color: 1/1 Black
Paper Stock: 65lb. Finch White Opaque Vellum Cover
Fold
1

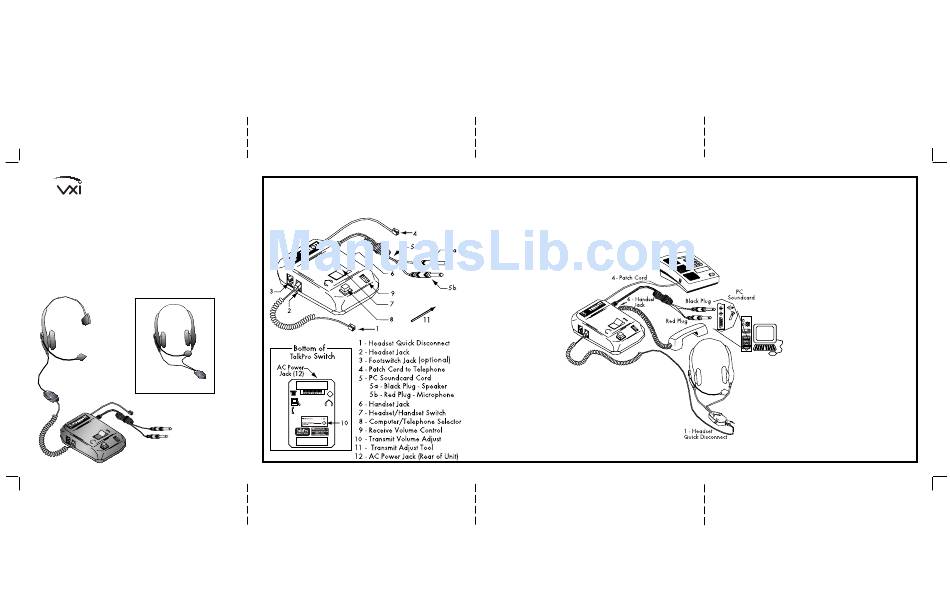

Connect the TalkPro
Switch to Your PC
and Telephone
Fold
Fold
The VXI TalkPro Switch Systems, enable seamless
alternation of the microphone between computer
and telephone use with the push of a button. Also,
the Computer/Telephone Selector allows the user
to simultaneously talk to the computer and listen to
the person on the telephone.
A. Insert the AC adapter
cord into the jack on
the rear of the
Switch (12), and
plug the adapter
into an AC outlet.
Make sure the
adapter cord plug
is fully inserted
into the jack.
B. Remove the handset cord from your
telephone. Insert the handset cord into the
Telephone Handset Jack (6).
C. Insert the free end of the Telephone Patch
Cord (4) into your telephone where the
handset cord was removed.
Fold
Fold
D. Insert the Headset Quick Discon-
nect on the coiled cord (1) into the
pendant on the headset. Verify
that the other end of the coiled
cord is inserted into the Headset
Jack on the Switch (2).
E. Insert the Red plug (5b) on
the Sound Card Cord into the
Microphone input jack on your
computer's sound card.
F. Insert the Black plug (5a) on the Sound
Card Cord into the Speaker output jack
on your computer's sound card.
G. If necessary, adjust your Windows
Volume Control Panel to a comfortable
level.
