ELECRAFT P3 Installation Instructions Manual

High-performance panadapter transmit monitor (tx mon) option
Hide thumbs Also See for P3:

Advertisement

Quick Links

Download this manual See also: Owner's Manual
E
P3
LECRAFT
H
-P
IGH
ERFORMANCE
P
ANADAPTER
T
M
(T
M
) OPTION
RANSMIT
ONITOR
X
ON

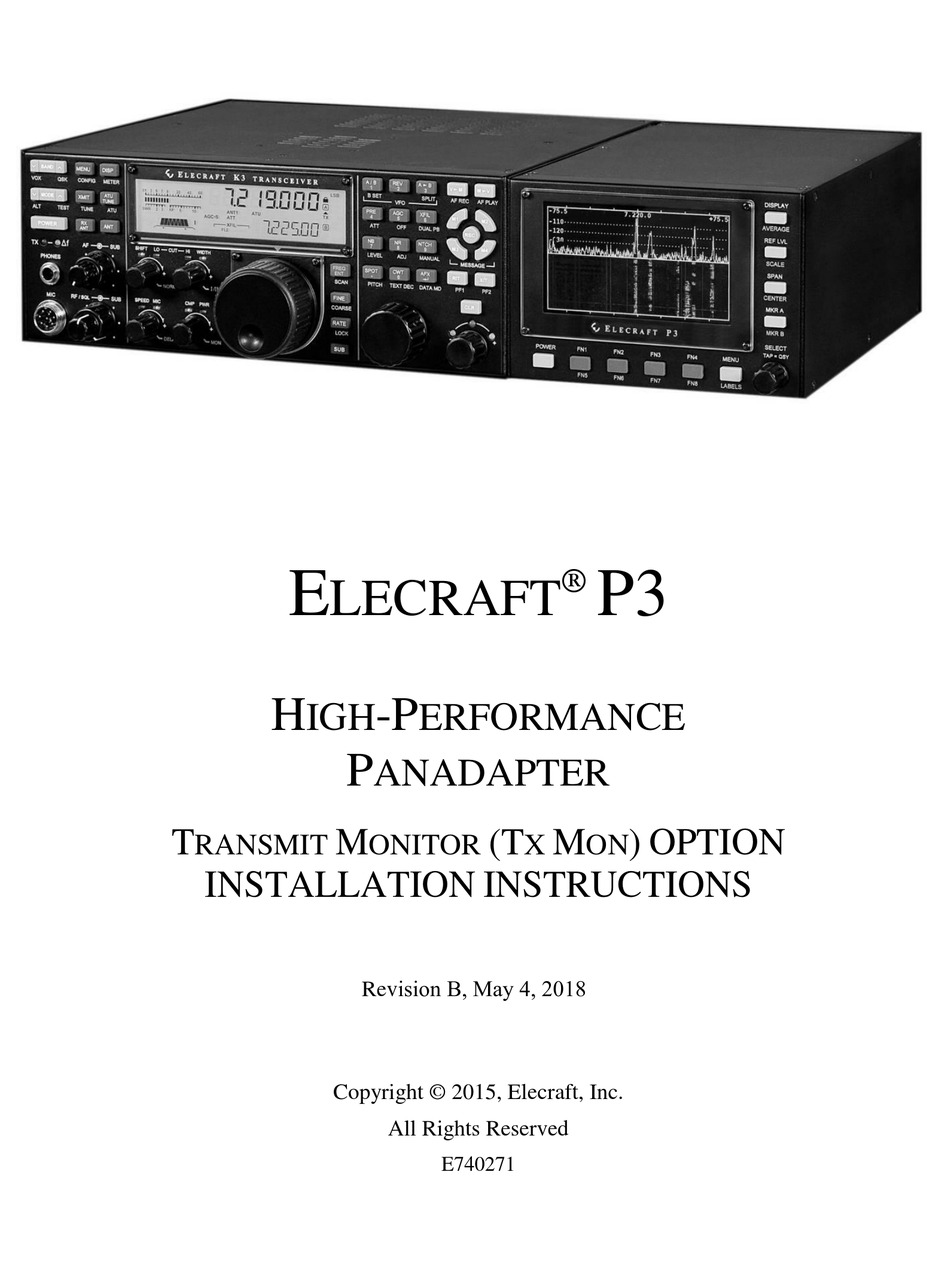

INSTALLATION INSTRUCTIONS
Revision B, May 4, 2018
Copyright © 2015, Elecraft, Inc.
All Rights Reserved
E740271

Advertisement

loading

Related Manuals for ELECRAFT P3

Summary of Contents for ELECRAFT P3

  • Page 1  LECRAFT ERFORMANCE ANADAPTER ) OPTION RANSMIT ONITOR INSTALLATION INSTRUCTIONS Revision B, May 4, 2018 Copyright © 2015, Elecraft, Inc. All Rights Reserved E740271...

  • Page 2: Table Of Contents

    Contents Introduction ............................2 Customer Service and Support ........................2 Preventing Electrostatic Discharge Damage ................... 3 Tools Required ............................4 Parts Supplied ............................4 Installation Procedure ........................5 Elecraft manuals with color images may be downloaded from www.elecraft.com.

  • Page 3: Introduction

    Transmit Monitor included as you build the P3. The Transmit Monitor is a single board that plugs into the existing I/O board inside the P3. Only a few basic hand tools are needed (see pg 4) to perform the installation. No soldering or wiring is required.

  • Page 4: Preventing Electrostatic Discharge Damage

     If you choose to use a soldering iron to work on your P3 for any reason, be sure your iron has an ESD- safe grounded tip tied to the same common ground used by your mat or wrist strap.

  • Page 5: Tools Required

    2. Pliers or wrenches for installing 1/4” (6.4mm) nuts 3/16” (4.8 mm) jack screw nuts. The following tools are strongly recommended: 1. ESD wrist strap. 2. Static dissipating work pad. Parts Supplied ELECRAFT ILLUSTRATION DESCRIPTION PART NO. TXMON PCB Assy...

  • Page 6: Installation Procedure

    Installation Procedure Remove the six screws in the P3 top cover and remove it. A side cover may be removed as well if it makes access easier. The modular design of the P3 enclosure allows you to remove panels independently as needed.
  • Page 7 Applying too much torque can twist the nut off of the threaded portion, ruining it. Dress the ribbon cable against the side of the P3, held in place by the clip as shown in Figure 24 in the P3 Owner's Manual.
