Assembly Instructions

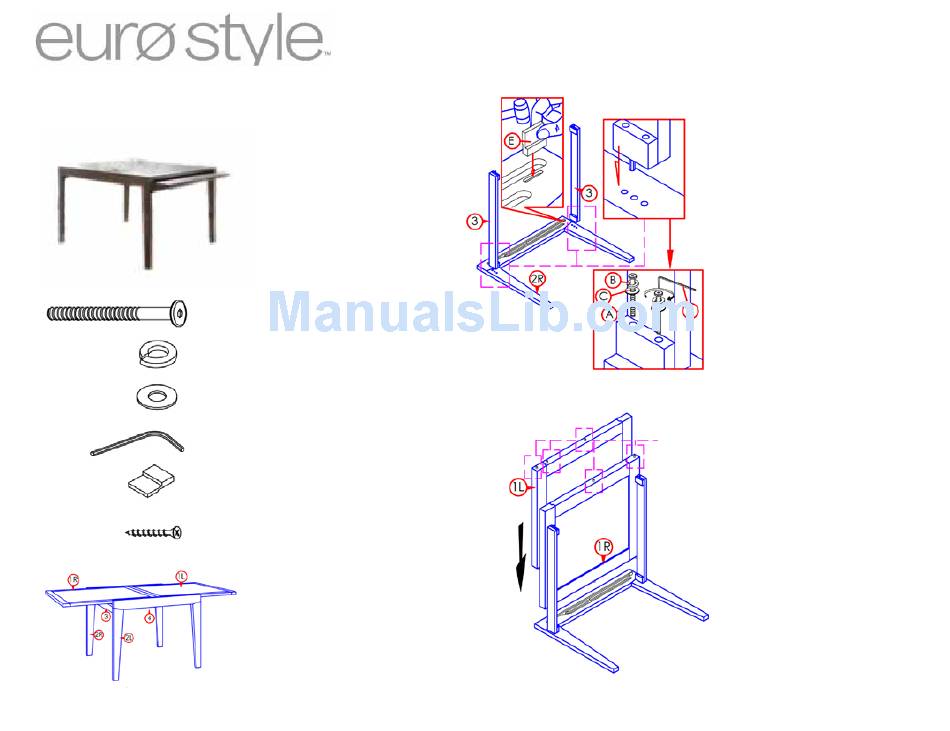

BANQUO Extension Table (Page 1 of 2)
A (8 pcs)
M6 x 60mm
B (8 pcs)
C (8 pcs)
D (1 pc)
E (2 pcs)
F (4 pcs)
M8 x 32mm
12.13.13 cy
PLEASE NOTE: Check that you have received all
components and hardware before assembling.
If you are missing any parts fax Euro Style at
415.455.8033 or email: claims@gotoeurostyle.com
1
2
During assembly, hand tighten screw only. When
the screw is in place, tighten completely.
PLEASE NOTE: The table tops (1L & 1R)
are labeled accordingly on the bottom of
the table tops.
PLEASE NOTE:
Please make sure
the orientation of the
table tops (1L & 1R)
are followed as
illustrated on the
picture shown.
