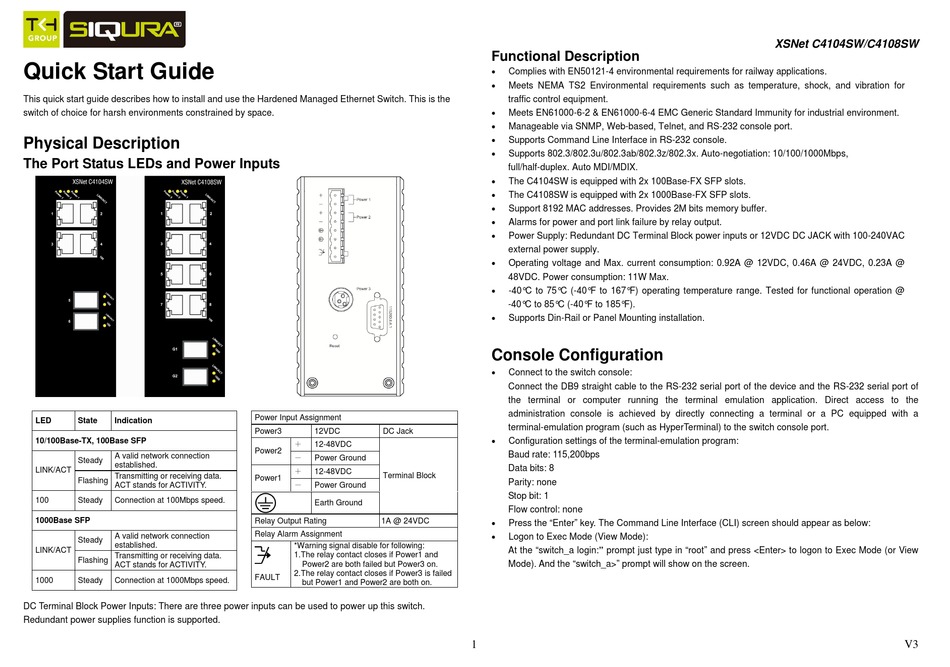

Quick Start Guide

This quick start guide describes how to install and use the Hardened Managed Ethernet Switch. This is the
switch of choice for harsh environments constrained by space.

Physical Description

The Port Status LEDs and Power Inputs
LED State Indication
10/100Base-TX, 100Base SFP
A valid network connection
Steady
established.
LINK/ACT
Transmitting or receiving data.
Flashing
ACT stands for ACTIVITY.
100 Steady Connection at 100Mbps speed.
1000Base SFP
A valid network connection
Steady
established.
LINK/ACT
Transmitting or receiving data.
Flashing
ACT stands for ACTIVITY.
1000 Steady Connection at 1000Mbps speed.
DC Terminal Block Power Inputs: There are three power inputs can be used to power up this switch.
Redundant power supplies function is supported.
Important: Note that the XSNet Series manuals may cover multiple
models. To establish if a particular feature or specification in this
manual applies to the unit at hand, consult the datasheet of the given
model.
Note: The EU Declaration of Conformity for this product can be
found at www.siqura.com/support-files.
Power Input Assignment
Power3 12VDC DC Jack
＋
12-48VDC
Power2
－
Power Ground
＋
12-48VDC
Terminal Block
Power1
－
Power Ground
Earth Ground
Relay Output Rating 1A @ 24VDC
Relay Alarm Assignment
*Warning signal disable for following:
1. The relay contact closes if Power1 and
Power2 are both failed but Power3 on.
2. The relay contact closes if Power3 is failed
FAULT
but Power1 and Power2 are both on.

Functional Description


Complies with EN50121-4 environmental requirements for railway applications.

Meets NEMA TS2 Environmental requirements such as temperature, shock, and vibration for
traffic control equipment.

Meets EN61000-6-2 & EN61000-6-4 EMC Generic Standard Immunity for industrial environment.

Manageable via SNMP, Web-based, Telnet, and RS-232 console port.

Supports Command Line Interface in RS-232 console.

Supports 802.3/802.3u/802.3ab/802.3z/802.3x. Auto-negotiation: 10/100/1000Mbps,
full/half-duplex. Auto MDI/MDIX.

The C4104SW is equipped with 2x 100Base-FX SFP slots.

The C4108SW is equipped with 2x 1000Base-FX SFP slots.

Support 8192 MAC addresses. Provides 2M bits memory buffer.

Alarms for power and port link failure by relay output.

Power Supply: Redundant DC Terminal Block power inputs or 12VDC DC JACK with 100-240VAC
external power supply.

Operating voltage and Max. current consumption: 0.92A @ 12VDC, 0.46A @ 24VDC, 0.23A @
48VDC. Power consumption: 11W Max.

-40°C to 75°C (-40°F to 167°F) operating temperature range. Tested for functional operation @
-40°C to 85°C (-40°F to 185°F).

Supports Din-Rail or Panel Mounting installation.

Console Configuration


Connect to the switch console:
Connect the DB9 straight cable to the RS-232 serial port of the device and the RS-232 serial port of
the terminal or computer running the terminal emulation application. Direct access to the
administration console is achieved by directly connecting a terminal or a PC equipped with a
terminal-emulation program (such as HyperTerminal) to the switch console port.

Configuration settings of the terminal-emulation program:
Baud rate: 115,200bps
Data bits: 8
Parity: none
Stop bit: 1
Flow control: none

Press the "Enter" key. The Command Line Interface (CLI) screen should appear as below:

Logon to Exec Mode (View Mode):
At the "switch_a login:" prompt just type in "root" and press <Enter> to logon to Exec Mode (or View
Mode). And the "switch_a>" prompt will show on the screen.
1
XSNet C4104SW/C4108SW
V3
