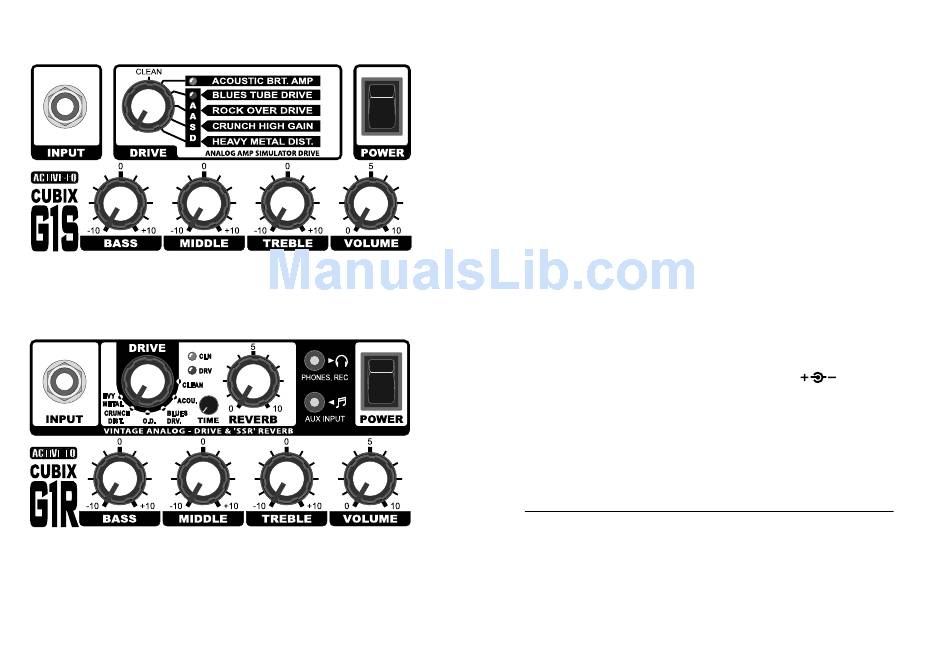

1. INPUT jack
Plug from your guitar here.
2. DRIVE selector
This selector provides 6 types of analog drive sound.
1. CLEAN TONE : Normal sound without effect
2. ACOUSTIC : Mid range filtered bright tone
3. BLUES DRIVE : Bright tone with low gain over drive
4. OVER DRIVE : Warm tone with over drive
5. CRUNCH DIST. : High gain distortion with pre-tone-booster
6. HEAVY METAL : High gain distortion with heavy booster
3. BASS, MIDDLE, TREBLE
Adjusts low tone, mid tone and high tone
4. VOLUME
Adjusts main volume.
5. PHONES, REC jack (G1R)
Connects earphones, using stereo mini plug(1/4").
Connects stereo or mono mini plug(1/4") for line out to the other amp or recorder.
6. AUX INPUT jack (G1R)
Connects stereo mini plug(1/4") from music output of MP3, CDP or PC
7. POWER switch
Switching the power on/off.
Make sure that the volume control is set to zero position before power on and off
to reduce damage to amplifier and/or hearing ability
8. DC INPUT jack
(Back panel)
Plug the DC power from adaptor. (DC 15V 1A Regulated)
9. REVERB, TIME
(G2R, G2X)
Adjusts level and duration time of reverb effect.
10. BATTERY HOLDER
(Back)
Use ten Alkaline '1.5V AA size' batteries for play without power-supply.

Specification

Speaker drive : Digital-FET, Class-D
RMS output : 15Watts
Music power : 20Watts ~
Power consumption : 15VA
Power req. : DC15V 1A
Input impedance : 5Mohm
Package includes
AMP, Strap, Manual, AC adaptor (15V, 1A)
Dimension
G1S
D160 / H205 / W220 (mm)
Speaker : 1 X 6.5" , 8ohm
G1R
D160 / H205 / W220 (mm)
Speaker : 1 X 6.5" , 8ohm
