CUBISCAN 100-T OPERATION
QUICK REFERENCE GUIDE
This quick reference guide provides an overview and instructions for operating the Cubiscan
100-T. For more detailed instructions, see the Cubiscan 100-T Operations and Technical Manual.

SUMMARY

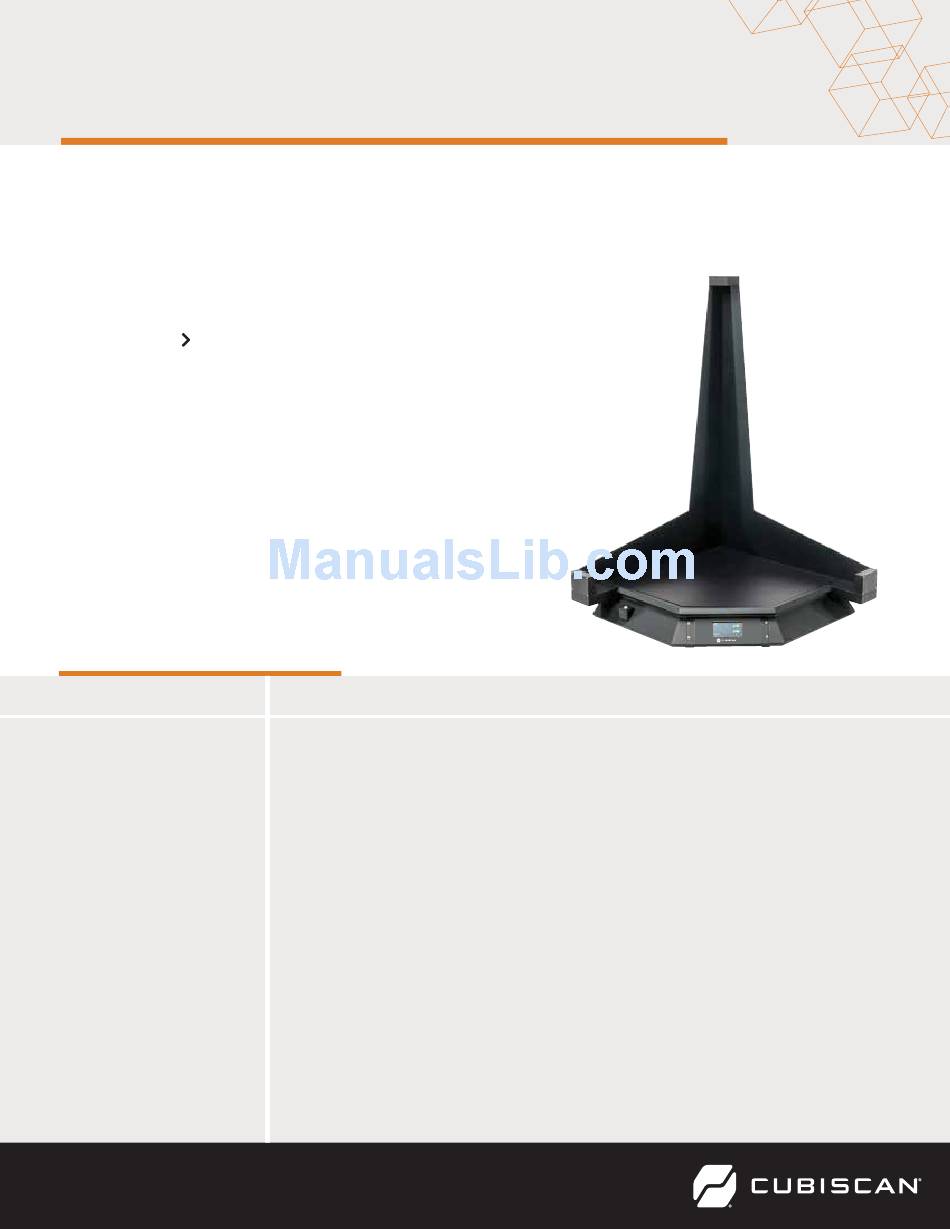

The Cubiscan 100-T, an integrated cubing and
weighing system, provides complete and accurate
dimensional data in any distribution center or
warehouse application. The design and functionality of
this dimensioner is simple and intuitive. Its modular
design allows for easy user setup and maintenance
while the user-definable "dim factors" (measurement
settings) provide customizable dim-weight calculations.

TOUCHSCREEN OVERVIEW

Buttons/Indicators
L, W, H
Wgt
Dwgt
Factor
Ready (indicator)
->0<- (indicator)
Zero (button)
Measure (button)
Meaning
These display the measured dimensions in inches or centimeters.
This displays the measured weight in pounds (lb) or kilograms (kg) as
selected.
This displays the dimensional weight in pounds (lb) or kilograms (kg) as
selected.
This displays the dimensional factor currently being used to calculate
dimensional weight.
This indicates that the Cubiscan 100-T is ready for cubing and weighing.
This indicates that the scale platform is empty and ready to receive a
package.
Tap this key to reset the sensors and scale to "zero" (make sure the
platform is empty).
Tap this key to prompt a measurement. The weight and dimensions of
the object on the platform will be displayed on the screen.
