2 TECHNICAL SPECIFICATIONS

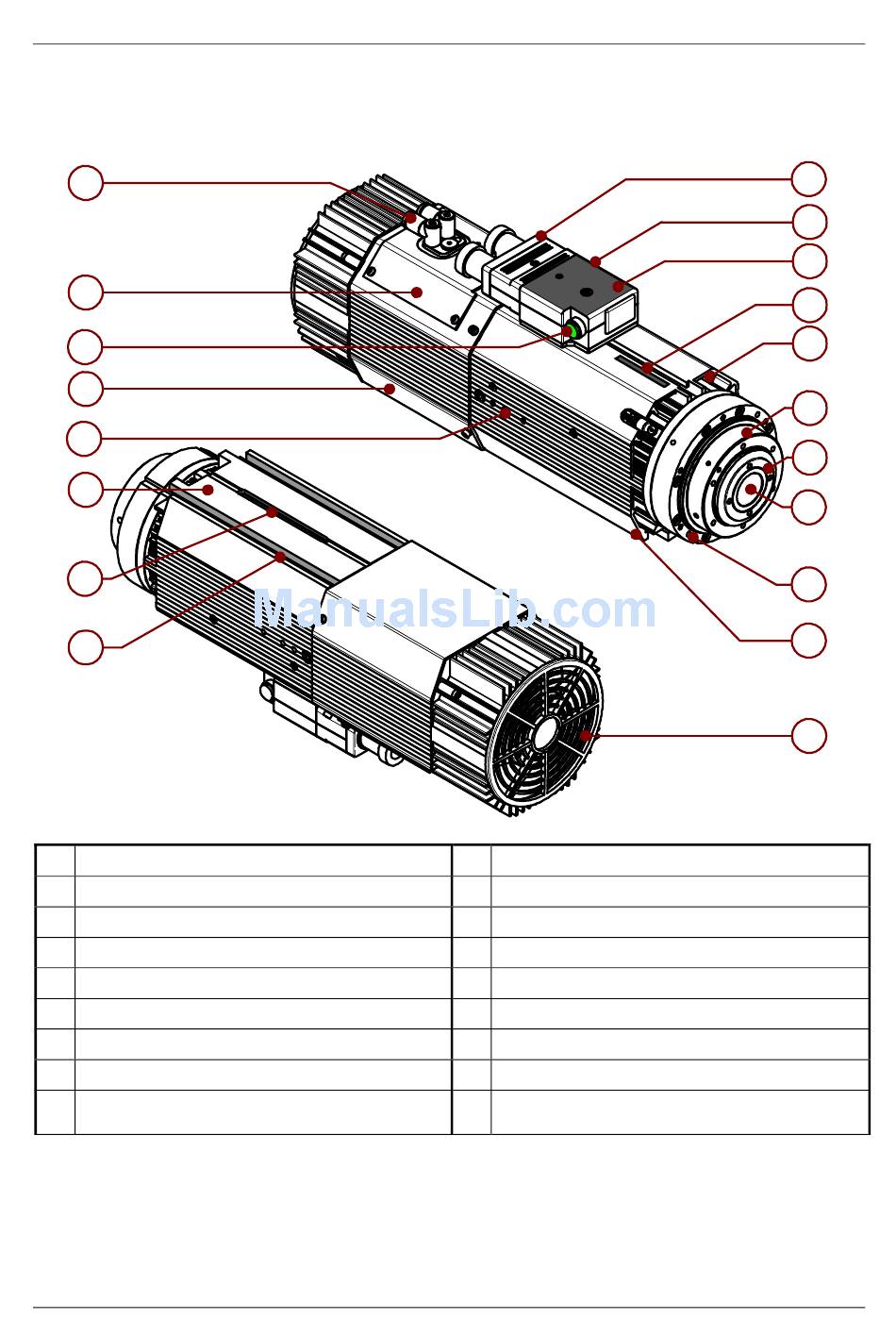

2.1 MAIN PARTS OF ES915/ES919/ES929/ES988

12
13
14
15
9
16
17
18
Movable electrical connectors
1
2 Fixed electrical connectors
EC marking plate
3
4 Serial number
5 Connector for sensor on accessories (e.g. C-axis)
6 "Nose"
7 Shaft
Tool hooking system
8
Threaded bores for accessories
9
(on the sides and the front flange)
5801H0056 _______________________________________________________________
Framework
10
11 Electric fan
(air-cooled versions only)
Pneumatic connectors
12
13 Cover of the sensor area
14 Button for the manual release of the tool-holder
15 Pneumatic cylinder
16 Resting surface
Seat for centring tang
17
18 "T" slot for fixing
1
2
3
4
5
6
7
8
9
10
11
