Introduction

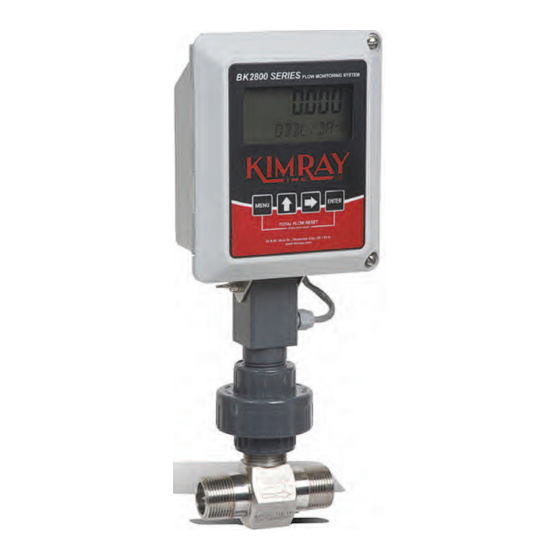

The BK2800 Flow Monitor is a state-of-the-art, microprocessor
based flow monitor, designed to provide the user with exceptional
flexibility at a very affordable price. Though designed for use
with Kimray Flow Meters, this display can be used with almost
any flow meter producing a low amplitude AC output or contact
closure signal(s).
This flow monitor is capable of accepting a low-level frequency
input for calculating flow rate and total. These calculations can
then be displayed in the desired units of measurement. All B2800
flow monitors come pre-calibrated, from the factory, if ordered
with a Kimray Flow Meter. If required, however, it can easily be
re-configured in the field. The monitor's large 8 digit by .75" numeric
liquid crystal display makes extended range viewing practical.
The second 8 digit by .38" alphanumeric display provides for
selectable units viewing in run mode and prompts for variables in
programming mode. Finally, the user can choose between displaying
rate, total, or alternating between both rate and total.
