Nitek FRS312104R00 Installation Manual

Installation Manual

FRS312104R00 Single Receiver
FRS324104R00 Dual Receiver
1, 2 Camera Receiver w/Data and Aux Comm.
Note: This installation should be made by a qualified
service person and conform with local codes.
Reduce risk of fire or electrical shock do
!
not expose this product to rain or moisture.

Specifications

Video Connection
Connector
Output Impedance
Output Level
Frequency Response
Optical Connection
Connector
Path Loss
Wavelength
Dimensions
Width
Power Connection
Provided from FSR1000 Card Rack
Auxiliary Ports
Data Selectable
Alarm In
Alarm Out Relay

Installation Instructions

- The fiber receiver is designed to be mounted in the FSR1000 Fiber Card Rack.
- Always allow for bend radius of optical and electrical cables when installed.
Color
Green
Red
Off

Service Information

There are no user serviceable parts inside the unit. In the event that service is required to this unit please
contact NITEK Technical Support at 800-528-4343.
75 ohm BNC Socket
75 ohm terminated
1 volt p-p nominal
10Hz to 5.75MHz
SC Style
20dB
1310 / 1550nm
1 Card slot
RS422/RS485/RS232
Contact Closure
100V / 150mA max
Data LED
Description
Data is Low / Logic 0
Data is High / Logic 1 (RS422/485)
Data is Tri-state / (High - RS232)
NITEK
5410 Newport Drive, Suite 24
Rolling Meadows, IL 60008
PHONE (847) 259-8900
FAX (847) 259-1300
WWW.NITEK.NET
NITEK

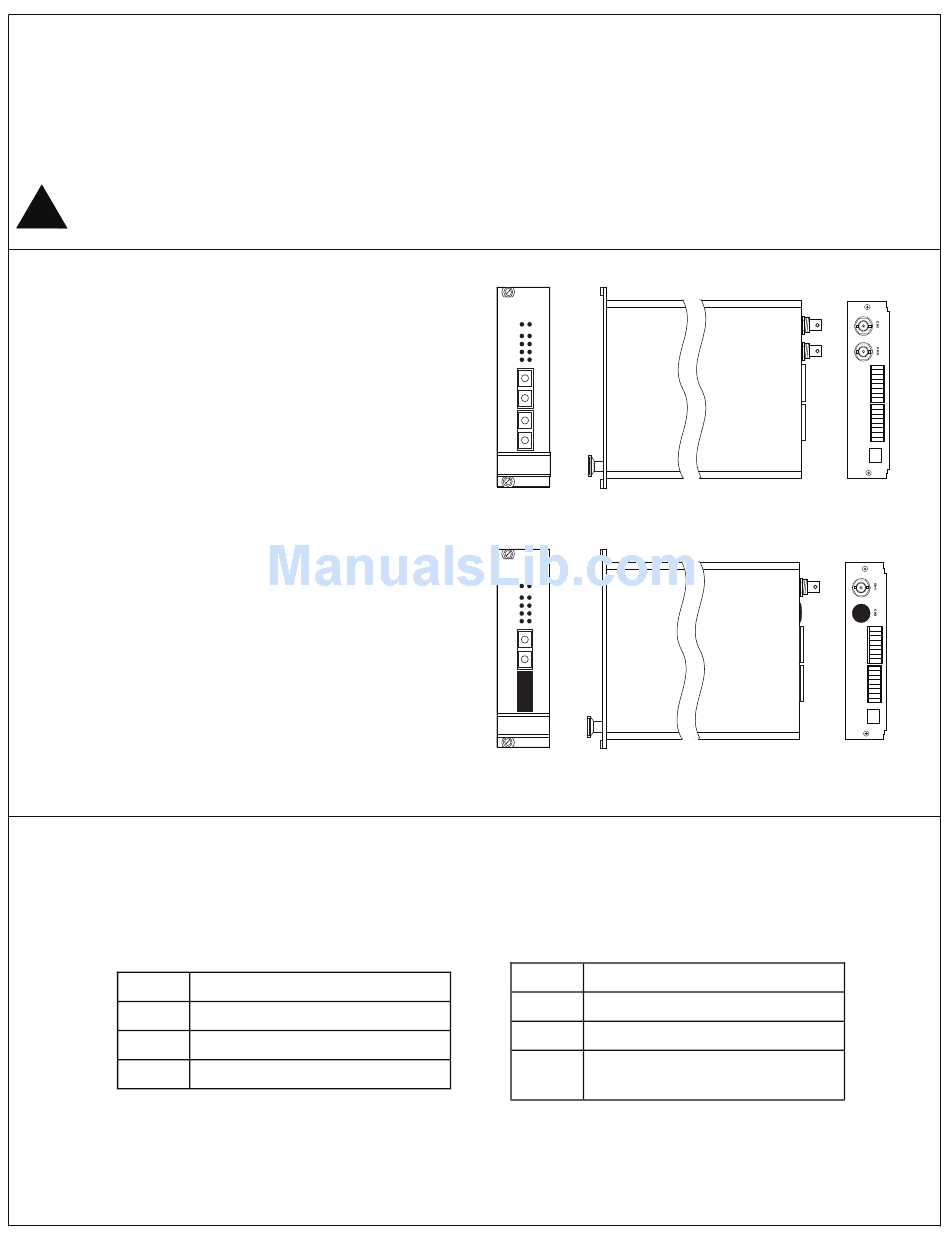

CH1 CH2
POWER
VIDEO/OPTO
DATA OUT
DATA IN
ALARM OUT
ALARM IN
OPTO IN / OUT
CH1
CH2
FRS324104R00
NITEK
CH1 CH2
POWER
VIDEO/OPTO
DATA OUT
DATA IN
ALARM OUT
ALARM IN
OPTO IN / OUT
CH1
CH2
FRS312104R00
Power/Video/Opto LED
Color Description
Green System Normal
Yellow (RX) Link working, No video at TX
Red (TX) Power on, No video into TX
(RX) Power on, No opto into RX
®
680600125 Rev 02232009
