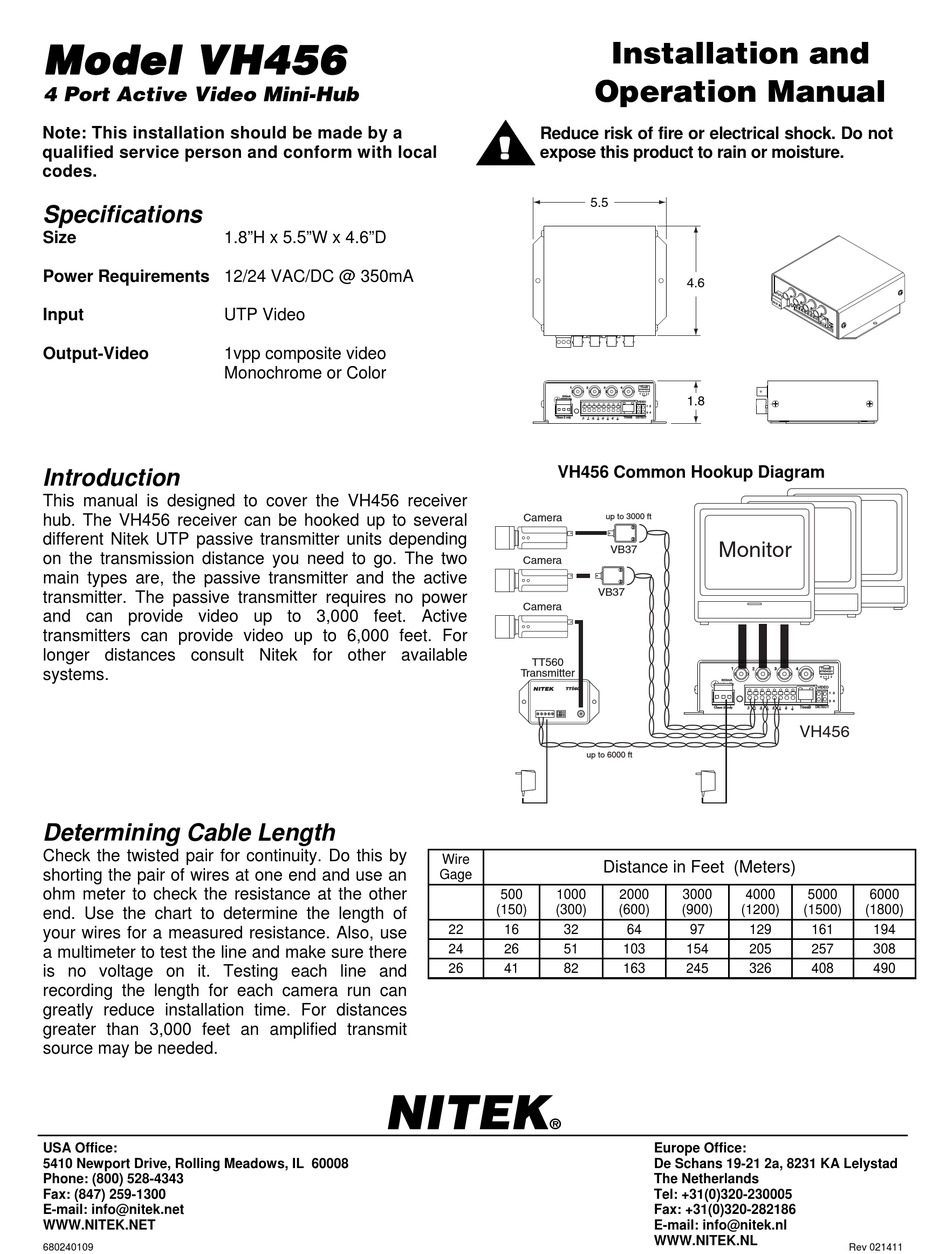

Nitek VH456 Installation And Operation Manual

Model VH456
4 Port Active Video Mini-Hub
Note: This installation should be made by a
qualified service person and conform with local
codes.

Specifications

Size
Power Requirements 12/24 VAC/DC @ 350mA
Input
Output-Video
Introduction
This manual is designed to cover the VH456 receiver
hub. The VH456 receiver can be hooked up to several
different Nitek UTP passive transmitter units depending
on the transmission distance you need to go. The two
main types are, the passive transmitter and the active
transmitter. The passive transmitter requires no power
and can provide video up to 3,000 feet. Active
transmitters can provide video up to 6,000 feet. For
longer distances consult Nitek for other available
systems.
Determining Cable Length
Check the twisted pair for continuity. Do this by
shorting the pair of wires at one end and use an
ohm meter to check the resistance at the other
end. Use the chart to determine the length of
your wires for a measured resistance. Also, use
a multimeter to test the line and make sure there
is no voltage on it. Testing each line and
recording the length for each camera run can
greatly reduce installation time. For distances
greater than 3,000 feet an amplified transmit
source may be needed.
USA Office:
5410 Newport Drive, Rolling Meadows, IL 60008
Phone: (800) 528-4343
Fax: (847) 259-1300
E-mail: info@nitek.net
WWW.NITEK.NET
680240109
1.8"H x 5.5"W x 4.6"D
UTP Video
1vpp composite video
Monochrome or Color
NITEK
Installation and

Operation Manual

Reduce risk of fire or electrical shock. Do not
!
expose this product to rain or moisture.
5.5
1 2 3
24 AC 24 AC
300mA 300mA
50\60 Hz 50\60 Hz
Class 2 only Class 2 only
VH456 Common Hookup Diagram
Camera up to 3000 ft
VB37
Camera
VB37
Camera
TT560
Transmitter
NITEK TT560
up to 6000 ft
Wire
Distance in Feet (Meters)
Gage
500 1000
(150) (300)
22 16 32
24 26 51
26 41 82
®
4.6
4 T568B
87654321
- + - + - + - +
4 1 2
3
1.8
VIDEO VIDEO
1 2 1 2
3 4 3 4
T568B T568B DETECT DETECT
Monitor
1 2 3 4
24 AC 24 AC
300mA 300mA
50\60 Hz 50\60 Hz
Class 2 only Class 2 only
2000 3000 4000
(600) (900) (1200)
64 97 129
103 154 205
163 245 326
Europe Office:
De Schans 19-21 2a, 8231 KA Lelystad
The Netherlands
Tel: +31(0)320-230005
Fax: +31(0)320-282186
E-mail: info@nitek.nl
WWW.NITEK.NL
T568B
87654321
- + - + - + - +
4 1 2
3
VIDEO VIDEO
1 2 1 2
3 4 3 4
T568B T568B DETECT DETECT
VH456
5000 6000
(1500) (1800)
161 194
257 308
408 490
Rev 021411
