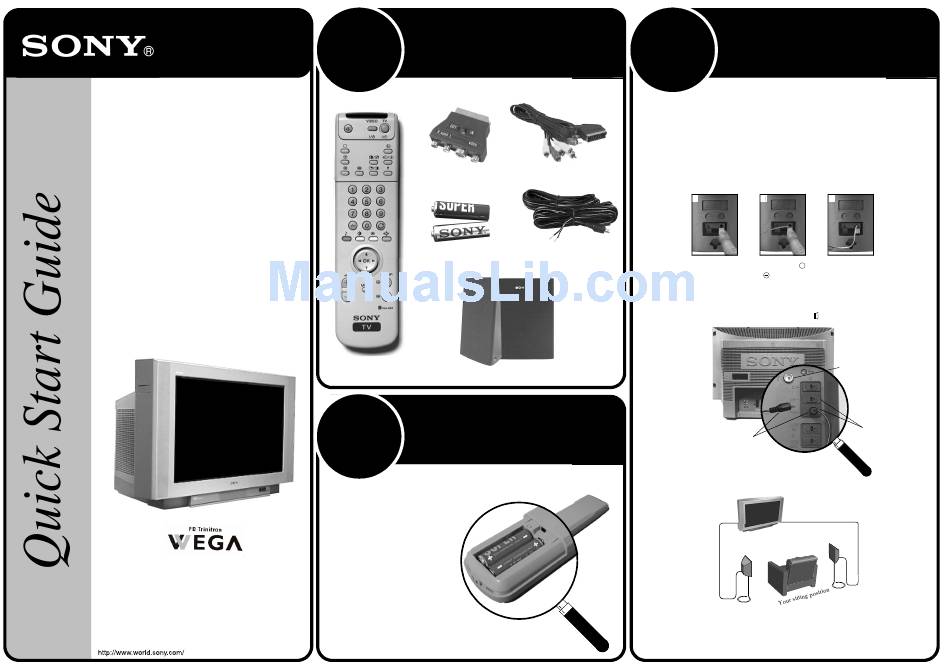

Sony KV-EH36M31 Quick Start Manual

KV-EH36M31
Thank you for purchasing
this Sony product.
After following this step by step guide you will be able
to:
Insert batteries into the remote control.
Connect the aerial to your TV.
Connect a video cassette recorder (VCR) to your
TV.
Tune your TV.
View TV programmes.
4-206-400-02
Checking the supplied
1
accessories
Please check that the following accessories were included with your TV.
Scart Adaptor
Batteries
Remote Control
Surround Speakers
Inserting batteries into
2

the remote control

Insert the batteries as shown in the diagram below.
1. Remove the battery compartment cover
on the back of the remote control.
2. Insert two size AA (R6) batteries
(supplied) by matching the + and - on the
batteries to the diagram inside the battery
compartment.
3. Replace the battery compartment cover.
Always observe the correct polarity when
inserting batteries.
Always remember to dispose of used batteries
in an environmentally friendly way.
3
To enjoy full Dolby Pro Logic* Surround sound you will need to connect
the supplied speakers to the TV. We recommend that you connect the
speakers before you switch on the TV.
Dolby Pro Logic* Surround sound requires 5 speakers:
• Centre speaker (incorporated in the TV set) to anchor the stable sound image such as dialogues to
the TV screen.
• Left and right front speakers (incorporated in the TV set) for the normal two channels or stereo
broadcasts.
• Surround speakers (supplied) for the special effects created by the surround channel.
Scart Lead
Step 1:Connecting the speaker leads to the speakers
Rear of Speaker
1
Surround Speaker Leads
1. Connect the black and white striped lead to the red ( ) terminal, as shown.
2. Connect the all black lead to the black ( ) terminal.
3. Repeat this procedure for the second speaker.
Step 2:Connecting the speakers to the TV
Connect the two surround speakers to the 'S' terminals of the socket on the rear of the TV, as shown.
Speaker lead plugs
Step 3:Positioning the speakers for optimum sound
Position the speakers as shown.
Place the speakers one metre above your listening position to obtain the best sound effects.
* Manufactured under licence from Dolby Laboratories. 'Dolby', 'Pro Logic', and the double-D symbol are trademarks of the
Dolby Laboratories.
Connecting the supplied
speakers
2 3
, ,
+
Aerial socket
S terminals
