- Page 1 INSTRUCTION MANUAL Infrared Video Thermometer Model MTP 1320 MTP Instruments Tel.: +506 2280-1686 • Fax: +506 2524-2397 ventas@eproteca.com • www.eproteca.com...
-
Page 2: Table Of Contents
Table of Content Introduction Page 1 Features Page 1 Specifications Page 2 Front panel and button description Page 3 Menu overview Page 4 Measurement modes Page 4 CAM mode Page 5 5.2.1 Capturing picture function Page 5 5.2.2 Capturing video function Page 6 IR mode (only) Page 6... -
Page 3: Introduction

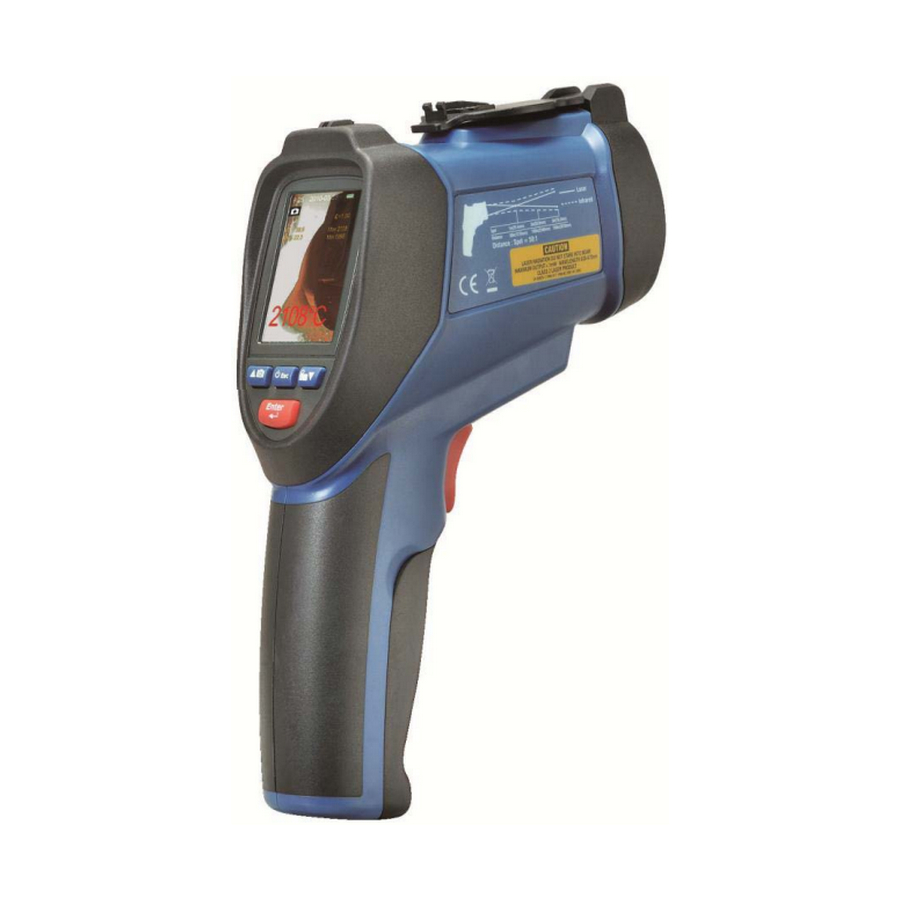

1) Introduction Thank you for purchasing the IR Video Thermometer, model MTP 1320 which is capable of non-contact (infrared) temperature measurements with visual camera at the touch of a button. The built-in laser pointer increases target accuracy while the backlight LCD and handy push-buttons combine for convenient, ergonomic operation. -
Page 4: Specifications
Distance and Spot Size As the distance (D) from the object increases, the spot size (S) of the area measured by the unit becomes larger. The relationship between distance and spot size for each unit is listed below. The focal point for each unit is 914 mm (36 ). The spot size s indicate 90% of encircled energy. -
Page 5: Front Panel And Button Description
Power Battery Battery life : Approx. 4 hours continuous use Battery charge time : Approx. 2 hours with AC adapter or USB connection Size : 205mm x 62mm x 155mm Weight : 410 g 4) Front Panel and Button Description 1) LCD display 2) Buttons 3) Battery cover... -
Page 6: Menu Overview
Description of buttons 1) Up ( ) or Picture button 2) ESC button 3) Down ( ) or Video button 4) ENTER button (MODE) 5. Menu overview Power ON or power OFF Press and hold ESC button to switch the instrument ON. Press and hold ESC button to switch the unit OFF. -
Page 7: Cam Mode
Symbols Symbol Description Symbol Description CAM mode High alarm IR mode High alarm triggering Dew point mode Low alarm Laser Low alarm triggering Scanner Hold 5.2 CAM Mode In CAM mode , the meter can measure the IR temperature, air temperature, air humidity, dew point temperature and wet bulb temperature with camera. -
Page 8: Capturing Video Function
5.2.2 Capturing video function button to enter video taking mode, then press START In CAM mode, press the with the button to take video, or press ESC button to escape. Use the button to stop video. 5.3 IR Mode In the IR mode, the meter can measure IR temperature, air temperature, air humidity, dew point temperature and wet bulb temperature but without the video camera capabilities. -
Page 9: Datalogging Mode
In the dew point mode, the percentage bargraph indicates how close the IR temperature is to the dew point temperature. At 100% the two values are identical. 5.5 Datalogging Mode In the datalogging mode, first set parameters for high alarm value, low alarm value, interval time and the line color. -
Page 10: Gallery (View Stored Pictures, Videos And Logs)
5.6 View stored pictures, videos and logs (GALLERY) Item Description Pictures Display the saved pictures Videos Play the saved videos Logs Display the data logs and view buttons to select one of the sub-menus Press the (picture, video, log) then press ENTER button. In the picture, video or log mode, press the ENTER button to view picture, play video or view log. -
Page 11: Setting The Date And Time
Item Description Date/Time Set the current date and time Units (°C/°F) Select the temperature unit of measure Language Select language Font color Select font color Cursor Switch the cursor ON or OFF Backlight Backlight brightness adjustment Auto power off Set the auto power off time period Screen timeout Set the screen auto off time period Key press alert... -
Page 12: Setting The Temperature Units
5.7.2 Setting the Temperature Units (°C / °F) buttons to select the desired unit of measure, press the ESC Use the button to exit and save. 5.7.3 Setting the Language and to select the language, press ESC button to exit and save. Press the 5.7.4 Setting the Font Color buttons to select the color, press the ESC button to exit and... -
Page 13: Setting The Cursor Style
5.7.5 Setting the Cursor Style Use the and buttons to select the cursor style ( off, cross or circle), press the ESC button to exit and save. 5.7.6 Setting the Backlight Brightness Use the and buttons to select the backlight brightness level in %, press the ESC button to exit and save. -
Page 14: Setting The Screen Timeout
5.7.8 Setting the Screen Timeout Use the buttons to disable or select a screen auto o time, press the ESC button to exit and save. 5.7.9 Enable/Disable Key Press Alert Use the and buttons to enable or disable the key press alert feature, press the ESC button to exit and save. -
Page 15: Factory Default Setting
5.7.11 Factory Default Setting buttons to select either YES (return to the factory default Use the settings) or NO (cancel). Press the ESC button to exit and save. 6. Measurement Settings On any mode, press the ENTER button to access into the menu measurement settings Item Description... -
Page 16: Emissivity Setting
Emissivity Setting Use the arrow buttons to highlight an emissivity setting and then press ENTER to choose it. Select emissivity by description (concrete, glass, etc.) or select = 0.94 to set the emissivity manually using the arrow buttons. Press the ESC button to exit and save. -
Page 17: Laser
Laser Use the buttons to enable or disable the laser pointer, press the ESC button to exit and save. Auto Mode (Measure Lock) Use the and buttons to enable or disable auto mode, press the ESC buttons to exit and save. If auto mode is enabled and the ESC button is then pressed, the meter will enter the Measure Lock mode, where measurements will be made automatically. -
Page 18: Ambient Temperature / %Rh
Ambient TEMP/% RH buttons to switch the air temperature and relative humidity Use the display ON or OFF. Press the ESC button to exit and save. Dew Point/ Wet Bulb Temperature Use the and buttons to switch the dew point and wet bulb temperature ON or OFF. -
Page 19: Emissivity Values
Distance and spot size As the distance (D) from the object increases, the spot size (S) of the area measured by the unit, becomes larger. (See Fig. 1 on page 2). Locating a hot spot To find a hot spot, aim the thermometer outside the area of interest, then scan across with an up and down motion until you locate the hot spot. -
Page 20: Maintenance
MTP WARRANTY MTP Instruments warrants this instrument to be free of defects in parts and workmanship for one (1) year from date of shipment. This warranty does not apply to defects resulting from action of the user such as misuse, improper wiring, operation outside of specification, improper maintenance or repair, or unauthorized modification.
