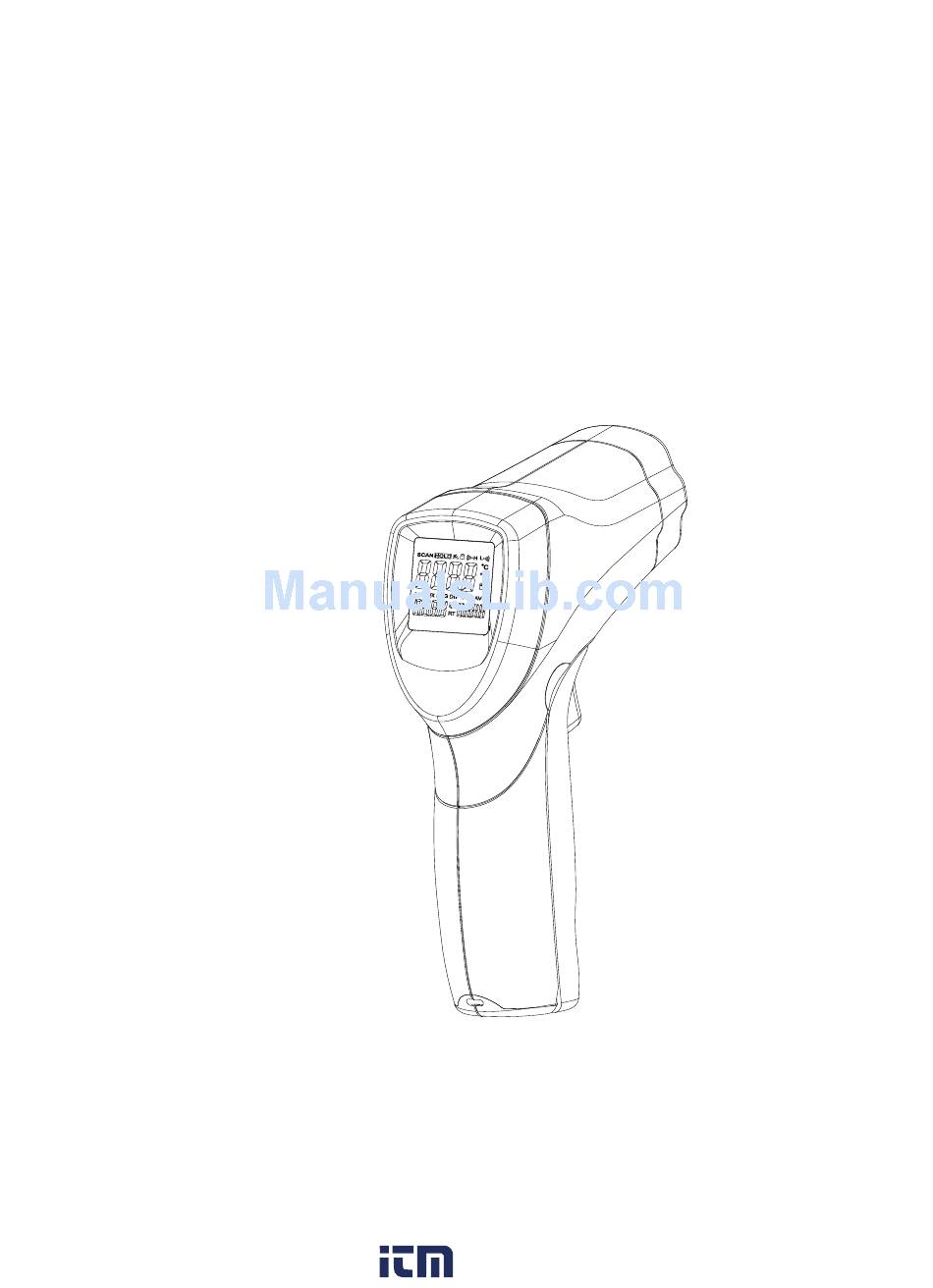

- Page 1 Operating Manual Model MTP-1325 Non-Contact Infrared Thermometers MTP Instruments .800.561.8187 information@itm.com www. .com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS ……………………………………….. 3 INTRODUCTION …………………………………………….. 3 FEATURES …………………………... 3 WIDERANGEAPPLICATION ………………………………………………... 4 SAFETY ………………………………… 4 DISTANCE&SPOTSIZE ……………………………………… 5 SPECIFICATIONS ………………………….. 6 FRONTPANELDESCRIPTION …………………………………………….. 6 INDICATOR …………………………… 7 MEASURMENTOPERATION …………………………….. 8 BATTERYREPLACEMENT ………………………………………………… 8 NOTES ……………………………………….11 MAINTENANCE .800.561.8187 information@itm.com www. -
Page 3: Introduction
INTRODUCTION Thank you for purchase of the IR Thermometer. This is capable non-contact (infrared) temperature measurements at the touch of a button. The built-in laser pointer increases target accuracy while the backlight LCD and handy push-buttons combine for convenient, ergonomic operation. -
Page 4: Safety
SAFETY Use extreme caution when the laser beam is turned on. Do not let the beam enter your eye, another person’s eye or the eye of an animal. Be careful no to let the beam on a reflective surface strike your eye. -
Page 5: Specifications
SPECIFICATIONS Temperature range D: S -50 to 450 °C (-58°F ~ 842°F) 12:1 Display resolution 0.1 °C (0.1°F) Accuracy for targets: Assumes ambient operating temperature of 23 to 25 °C (73 to 77°F) -50 ~ 20°C (-58°F ~ 68°F) ±2.5°C (4.5°F) 20°C ~300°C (68°F ~572°F) ±1.0% ±1.0°C (1.8°F) 300°C ~450°C (572°F ~ 842°F) -
Page 6: Frontpaneldescription
Note: Field of View: Make sure that the target is larger than the unit’s spot size. The smaller the target, the closer you should be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size. FRONT PANEL DESCRIPTION ①... -
Page 7: Measurmentoperation
Functional Design the switches of C/F sat in a cell switching Switching C/F Select the temperature units (°C or °F) using F switch ( ① ) Max indicate the max record that displays between the pressing and releasing the "ON/OFF" button each time MEASUREMENT OPERATION ①... -
Page 8: Batteryreplacement
temperature measurements, some time (several minutes) is required after the low (and before the high) temperature measurements are made. This is a result of the cooling process, which must take place for the IR sensor. BATTERY REPLACEMENT ① As battery power is not sufficient, LCD Low battery indicator will display “... -
Page 9: Sand
Field of View Make sure that the target is larger than the unit’s spot size. The smaller the target, the closer you should be to it. When accuracy is critical, make sure the target is at least twice as large as the spot size. ... - Page 10 compensate, cove the surface to be measured with masking tape or flat black paint. Allow time for the tape to reach the same temperature as the material underneath it. Measure the temperature of the tape or painted surface. Emissivity Values Thermal Thermal Substance...
-
Page 11: Maintenance
7. MAINTENANCE Repairs or service are not covered in this manual and should only be carried out by qualified trained technician. Periodically, wipe the body with a dry cloth. Do not use abrasives or solvents on this instrument. ... - Page 12 Les Instruments Instruments Siège Social 4409, rue Charleroi Montréal-Nord, Québec H1H 1T6 Téléphone : (514) 326-7167 Télécopieur : (514) 326-7835 Ligne directe : 1-888-326-7167 Site Web : www.mtpinc.com Courrier électronique : info@mtpinc.com .800.561.8187 information@itm.com www. .com...
