D-Link DSL-2875AL Quick Installation Manual

QUICK INSTALLATION GUIDE
Dual Band
Wireless AC750
ADSL2+ Modem Router
DSL-2875AL
Package Contents
Dual Band Wireless AC750 ADSL2+ Modem Router (DSL-2875AL)
Power Adapter
Ethernet Cable
ADSL2+ Microfilter/Splitter
Quick Install Guide
If any of the above items are missing, please contact your reseller/retailer.

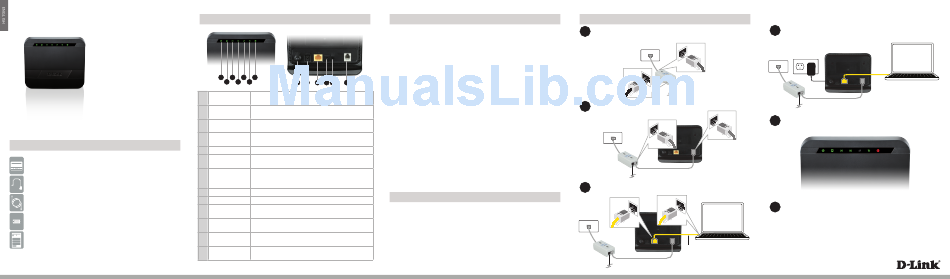

Hardware Overview
1 3 5 7
2 4 6
8 9 10 11 12 13
A solid green light indicates a proper connection to the
1 Power LED
power supply.
A solid green light indicates a connection to an Ethernet
2 LAN LED
device. The LED will blink during data transmission.
A solid green light indicates that the wireless segment is
3 2.4G Wireless LED
ready. The light will blink during data transmission.
A solid green light indicates that the wireless segment is
4 5G Wireless LED
ready. The light will blink during data transmission.
5 WPS LED The light will blink during the WPS process.
A solid green light indicates a proper connection to the
6 ADSL LED
ADSL enabled telephone line.
A solid green light indicates a proper connection to
7 Internet LED your broadband service. The light will blink during data
transmission.
8 Power Button Press to turn on or off the device.
9 Power Port Connect the supplied power adapter.
Connect Ethernet devices such as computers, switches,
10 LAN Port
and game consoles.
Press and hold the reset button with a paper clip for ten
11 Reset Button
seconds to reset the router to the factory default settings.
Press for three seconds to start the WPS process. Or press for
12 WPS/WiFi Button
six seconds to enable/disable wireless.
Connect to an ADSL enabled telephone line and the
13 ADSL Port
supplied microfilter/splitter.
Minimum Requirements
Internet Requirements:
• An activated ADSL telephone line and account with an Internet provider
Web-based Configuration Requirements:
Device with the following:
• An installed Ethernet adapter or wireless adapter
Supported Browsers:
• Internet Explorer 7 or higher
• Safari 4 or higher
• Chrome
• Firefox
mydlink™ Requirements (optional):
• iPhone/iPad/iPod Touch (iOS 3.0 or higher)
• Android device (1.6 or higher)
• Web Browser Requirements:
• Internet Explorer 7 or higher
• Safari 5 or higher
• Chrome
• Firefox
Note:
To learn more about mydlink, visit www.mydlink.com.au or www.mydlink.co.nz.
If you experience issues registering this Modem Router with your mydlink account,
try performing a hard reset by using an unfolded paperclip to press and hold the
reset button for 10 seconds while the Modem Router is powered on.
Before you Start
• Internet Provider Account Details - If you are using an Australian or New
Zeleand ADSL connection, you will need your user name and password. If you do
not have this information, contact your Internet provider.
Do not proceed until you have this information.
Connect your Modem Router
1
Connect your existing Phone cable from the telephone outlet to the LINE
port on the Microfilter and your telephone handset into the PHONE port.
Telephone Outlet LINE
PHONE
Microfilter
Connect the Phone cable from the DSL port on the Microfilter to the ADSL
2
port of the modem router.
DSL-2875AL
Microfilter
Phone Cable
3 Connect the Ethernet cable from the LAN port of the modem router to the
Ethernet port on your computer.
Ethernet Cable
DSL-2875AL
Plug the power adapter into your modem router and connect to an available
4
power outlet.
DSL-2875AL
Power Adapter
Computer
After the modem router has powered up, verify that the Power and ADSL
5
LEDs are both lit.
6
Continue with the Configuration section on the other side of this document.
