Summary of Contents for HiTec Systems AtmoCheck

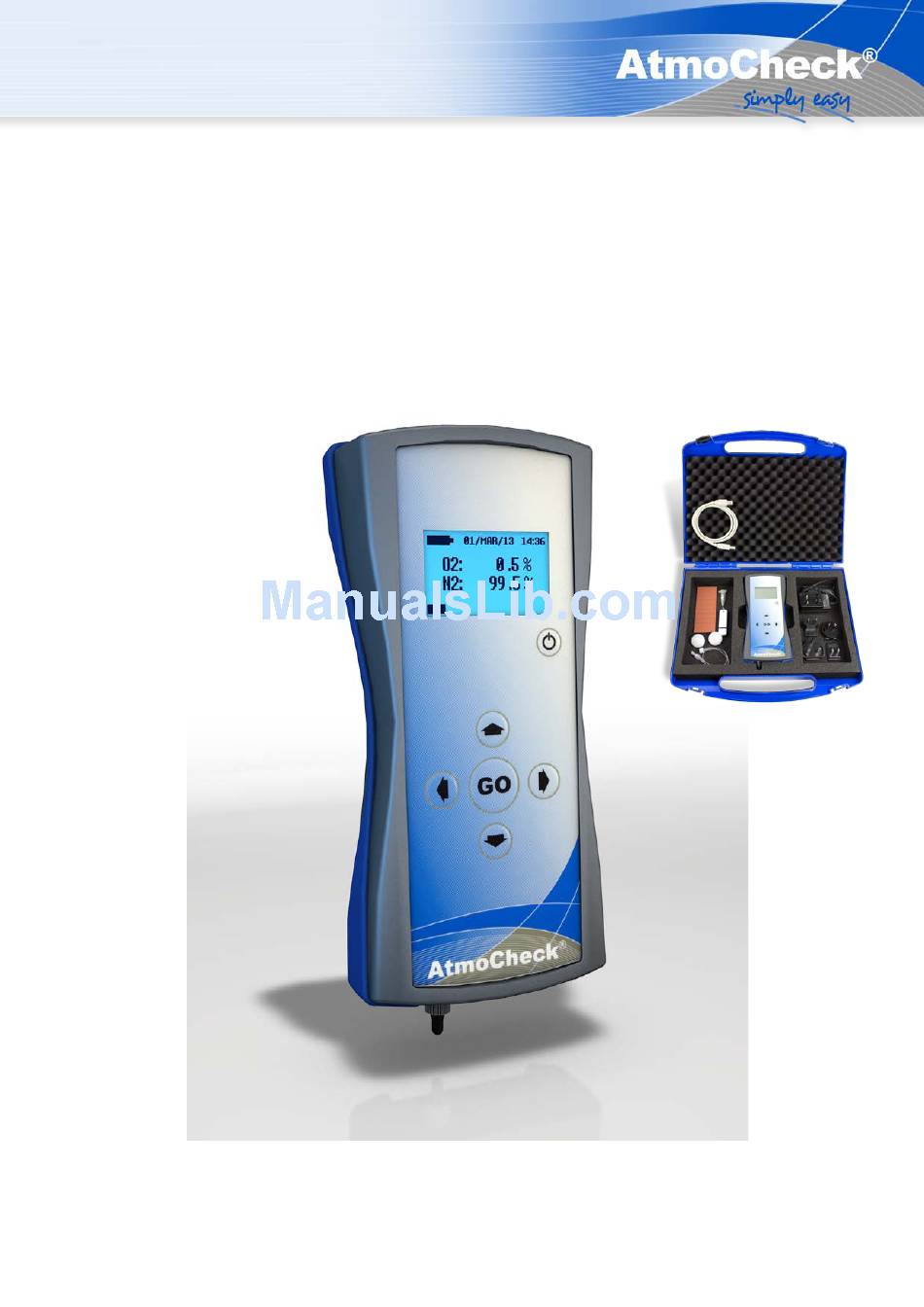

Page 1 Operating Manual AtmoCheck ®...
Page 2: Table Of Contents
Operating Manual Content AtmoCheck® ....................... 3 Scope of delivery....................3 Function ....................... 4 AtmoCheck® One ..................... 4 AtmoCheck® Double ..................5 -Display ......................5 Power supply ...................... 6 Power Supply Units ..................6 Operation ......................7 Starting and measuring ................7 Manual SPAN calibration O ..............
Page 3: Atmocheck
AtmoCheck® AtmoCheck® is a portable measurement AtmoCheck® has an internal memory for device which, depending on the model, is up to 1,000 measured values, which are designed for the analysis of oxygen and retained even after the device is switched- carbon dioxide.
Page 4: Function
Operating Manual Function With the help of the built-in pump the specified threshold values. AtmoCheck® draws a gas sample into the If the memory is full, the oldest value is integrated measuring chamber and on to overwritten when new measurements are its measuring cells.
Page 5: Atmocheck® Double
-Display Regardless of the model, the AtmoCheck is The display of the N2 value is optional also equipped with the option to display and can be activated or deactivated by the N2 value (nitrogen concentration) the service partner.
Page 6: Power Supply
Power supply units with 5VDC > 1.2 A 12 or 24 V, cause defects in the charging hollow plug with a 2.1 or 2.5 mm hole are circuit. Then the AtmoCheck will have to suitable. be shipped to the manufacturer for service.
Page 7: Operation
All of the following examples in the devices shown here. The displays may the figures are based on using the deviate however from those indicated in AtmoCheck® Double. The functions of the the figures below. AtmoCheck® One correspond roughly with Starting and measuring Press the „START“...
Page 8 Automatic calibration is started by pressing the “Go” button. AtmoCheck® automatically carries out the calibration with ambient air (20.9% O Attention: Make sure that you only use the ambient air.
Page 9: Manual Span Calibration O
Manual SPAN calibration O Press the arrow key „left“ or „right“ to enter the calibration menu. For the ambient air calibration, select „Span O 20.9%“ and press the „GO“ button. To exit the calibration menu, press the arrow key „left“ or „right. “ To start the ambient air calibration, press the „GO“...
Page 10: Manual Zero Point Calibration O
Operating Manual Manual zero point calibration O For zero point calibration use 100% N Press the arrow key „left“ or „right“ to enter the calibration menu. For the zero point calibration, select „Zero O 0.0%“ and press the „GO“ button. To exit the calibration menu, press the arrow key „left“...
Page 11: Manual Span Calibration Co
Manual SPAN calibration CO Use 100% CO for the SPAN calibration. Press the arrow key „left“ or „right“ to enter the calibration menu. For the SPAN point calibration of the CO2 sensor, select „SPAN CO 100%“ and press the „GO“ button. To exit the calibration menu, press the arrow key „left“...
Page 12: Manual Zero Point Calibration Co
Operating Manual Manual zero point calibration CO For zero point calibration use 100% N Press the arrow key „left“ or „right“ to enter the calibration menu. For the zero point calibration of the CO2 sensor, select „Zero CO2 0.0%“ and press the „GO“...
Page 13: Calibration Errors
Calibration errors If after calibration, one of these errors („Calibration Error“ or „CO Span Check FAIL“) appears, then check the following components for contamination: • Suction needle • Intake filter • Suction hose If necessary, replace the contaminated components and restart the process. If the calibration still results in errors then send the device to your service partner for inspection.
Page 14: Measurement
The measurement is complete when the Calibration AtmoCheck® One The O -measuring cell of the AtmoCheck® recommended before the start of the must be calibrated at regular intervals. actual measurement. Also, changes to the Daily calibration is sufficient for most...
Page 15: General
The flushed. Then place the suction needle built-in pump must always suck the gas of the AtmoCheck® into the hose so being analyzed at atmospheric pressure that the out-flowing gas can be sucked (= ambient pressure). Do not suck-in any without pressure.
Page 16: Service / Maintenance
Operating Manual Service / Maintenance AtmoCheck® works reliably with low maintenance and service costs for many years if the following points are observed: • Use only original intake filters that are • Avoid drastic changes in temperature in perfect condition.
Page 17: Spare Part List
Spare part list Item Illustration Filter: 1 PU = 5 pcs Order Number 110084.00001 Needle: 1 PU = 12 pcs Order Number 110429.00001 Foam rubber platelets: 1 PU = 400 pcs (10 strips) Order Number 111104.00001 Hose 30cm: 1 PU = 1 pcs Order Number 110545.00001 - 17 -...
Page 18 Operating Manual Item Illustration USB-data cable: 1 PU = 1 pcs Order Number 111021.00001 Power pack + adapter set 1 PU = 1 pcs Order Number 110099.00010 www.atmocheck.com www.atmomix.com - 18 -...
