SWIT S-2110CA User Manual

LED Panel Lights S-2110CA / S-2110CS
Thank you for choosing SWIT products. Please read the instructions before using, and keep it for future reference.

Characteristics

◆
576pcs of ultra bright LEDs, 50,000hrs long life time
Max luminance: 1500Lux (3200K), 1600Lux (5600K) at 1m
◆
distance; 10%-100% flick-free dimming
◆ 3200K to 5600K continuously adjustable color temperature
LCD touch screen, display and adjust color temperature and
◆
brightness dimming
Powered by V-lock battery (S-2110CS)/Gold mount battery
◆
(S-2110CA), or AC-DC adapter
Heat-free technology and constant current circuit design
◆
ensure consistent, stable, and accurate light output in various
environments
Designed for professional videography and photography
◆
Cautions
1. Never disassemble the light or touch its inside with metal
objects to avoid damage.
2. Never solder the LED bulbs by non-professionals
3. Never block the louvers; otherwise LED lighting effect and
lifetime will be greatly reduced
4. Only use the provided adapter to avoid damage.
5. Never crash the LED touch screen with great force to avoid
damage.
6. Only use the light in the temperature range of -10 ~40 .

Specifications

MODEL S-2110CA
LED 576pcs of ultra bright LEDs
Luminance
Beam angle
Color
3200K-5600K continuously adjustable
temperature
Power
Working
DC 11-17V, 4-pin XLR socket
voltage
External power Gold mount plate
Dimension 403(W)×300(H)×95(D)mm
Weight
Diffuser, U-shape bracket, AC adapter,
Accessories

USER MANUAL

SWIT Electronics Co., Ltd.
℃ ℃
S-2110CS
3200K: 1500Lux/m
5600K: 1600Lux/m
60°
4 0W
≤
V-mount plate
1.9kg
power cord

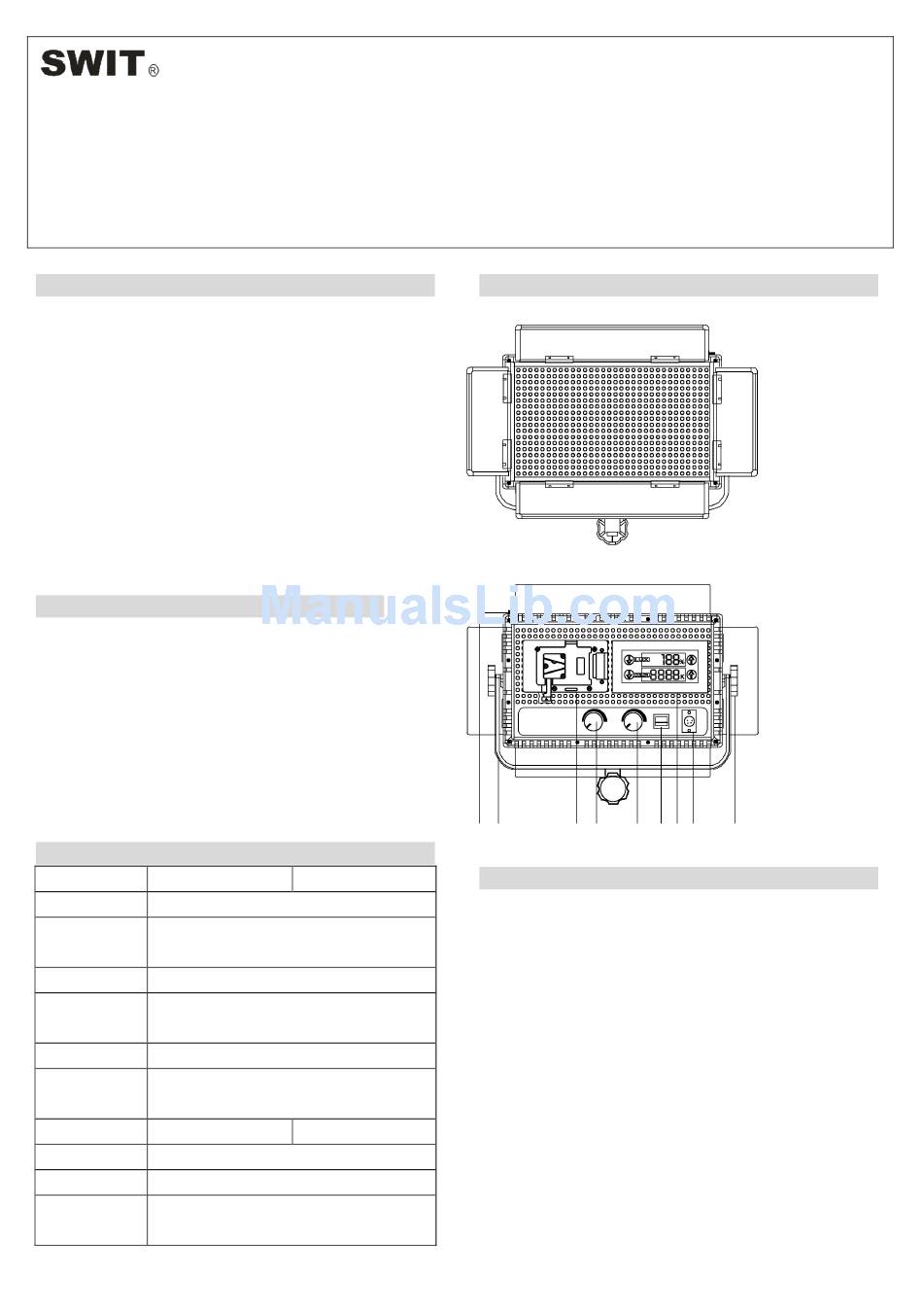

Front and rear view

Front view:
Rear view:
1 2 3 4 5 6 7 8

Operation instructions

1. Open the barn door, set up the U-shape bracket on the light
stand or bracket, and then fasten it. Loosen the knobs on both
sides of the U-shape bracket, and then fix the knobs after
adjusting the lighting angle.
2. Power the light with the AC power adapter or corresponding
battery, turn it on and then the light works.
3. The upper side of the LCD shows brightness. Press "↑"
rotate brightness dimming knob to adjust the brightness from
10%-100%.
4. The bottom side of the LCD shows color temperature. Press
"↑" 、 "↓"or rotate CT dimming knob to adjust the color
temperature from 3200K-5600K.
5. The diffuser can be removed from the groove in front of the
LED by pressing button 1.
Tel:+86-25-85805753
Fax:+86-25-85805296
http://www.swit.cc
E-mail: contact@swit.cc
1. Lock catch for the
diffuser
U-shape bracket
2.
3. Gold mount/V-mount
battery plate
4. CT dimming knob
5. Brightness dimming
knob
6. Power switch
7. LCD touch screen
4-pin XLR socket
8.
9
9. Fastening screw
" ↓"or
、
