SilverStone AR09-115XS User Manual

Warranty Information

This product has a limited 1 year warranty in North America, Europe, and Australia.
For information on warranty periods in other regions, please contact your reseller or SilverStone authorized distributor.
Warranty terms & conditions
1. Product component defects or damages resulted from defective production is covered under warranty.
Defects or damages with the following conditions will be fixed or replaced under SilverStone Technology's jurisdiction.
a) Usage in accordance with instructions provided in this manual, with no misuse, overuse, or other inappropriate actions.
b) Damage not caused by natural disaster (thunder, fire, earthquake, flood, salt, wind, insect, animals, etc...)
c) Product is not disassembled, modified, or fixed. Components not disassembled or replaced.
d) Warranty mark/stickers are not removed or broken.
Loss or damages resulted from conditions other than ones listed above are not covered under warranty.
2. Under warranty, SilverStone Technology's maximum liability is limited to the current market value for the product (depreciated value, excluding
shipping, handling, and other fees). SilverStone Technology is not responsible for other damages or loss associated with the use of product.
3. Under warranty, SilverStone Technology is obligated to repair or replace its defective products. Under no circumstances will SilverStone
Technology be liable for damages in connection with the sale, purchase, or use including but not limited to loss of data, loss of business, loss of
profits, loss of use of the product or incidental or consequential damage whether or not foreseeable and whether or not based on breach of warranty,
contract or negligence, even if SilverStone Technology has been advised of the possibility of such damages.
4. Warranty covers only the original purchaser through authorized SilverStone distributors and resellers and is not transferable to a second hand
purchaser.
5. You must provide sales receipt or invoice with clear indication of purchase date to determine warranty eligibility.
6. If a problem develops during the warranty period, please contact your retailer/reseller/SilverStone authorized distributors or SilverStone
http://www.silverstonetek.com.
Please note that: (i) You must provide proof of original purchase of the product by a dated itemized receipt; (ii) You shall bear the cost of shipping
(or otherwise transporting) the product to SilverStone authorized distributors. SilverStone authorized distributors will bear the cost of shipping
(or otherwise transporting) the product back to you after completing the warranty service; (iii) Before you send the product, you must be issued a
Return Merchandise Authorization ("RMA") number from SilverStone. Updated warranty information will be posted on SilverStone's official website.
Please visit http://www.silverstonetek.com for the latest updates.
Additional info & contacts
For North America (usasupport@silverstonetek.com)
SilverStone Technology in North America may repair or replace defective product with refurbished product that is not new but has been functionally tested.
Replacement product will be warranted for remainder of the warranty period or thirty days, whichever is longer. All products should be sent
back to the place of purchase if it is within 30 days of purchase, after 30 days, customers need to initiate RMA procedure with SilverStone Technology
in USA by first downloading the "USA RMA form for end-users" form from the below link and follow its instructions.
http://silverstonetek.com/contactus.php
For Australia only (support@silverstonetek.com)
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage.
You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
Please refer to above "Warranty terms & conditions" for further warranty details.
SilverStone Technology Co., Ltd. 12F No. 168 Jiankang Rd., Zhonghe Dist., New Taipei City 235 Taiwan R.O.C. + 886-2-8228-1238
(standard international call charges apply)
For Europe (support.eu@silverstonetek.de)
For all other regions (support@silverstonetek.com)
Install included back-plate
Установите прилагаемую
onto the backside of the
установочную панель на задней
motherboard.
части системной платы.
Installieren Sie die mitgelieferte
請將所附背板安裝於主機板背面。
Rückplatte an der Rückseite des
Motherboards.
Installez la plaque arrière sur
请将所附背板安装于主机板背面。
la face arrière de la carte mère.
Instale la placa trasera incluida en
付属のバックプレートをマザーボード
la parte trasera de la placa base.
の裏側に取り付けます。
Installare la piastra posteriore
제공된 백 플레이트를 메인보드의
fornita in dotazione sul retro della
뒷면에 설치합니다.
scheda madre.
G11226240

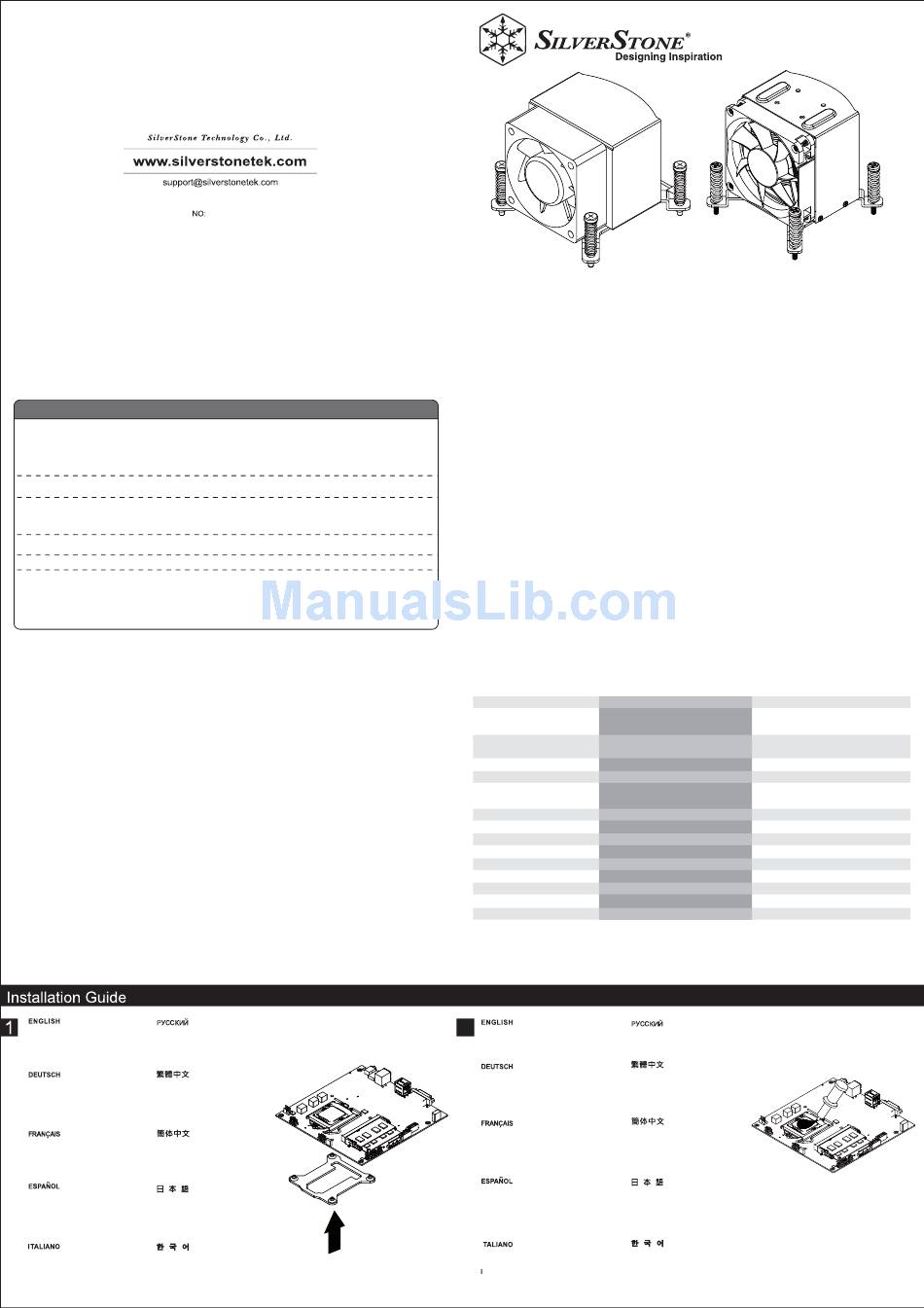

AR09-115XS
Superior 2U(AR09 series)/3U(AR10 series) server thermal
solution for Intel LGA 115X

SPECIAL FEATURES

Three Ø6mm heat-pipes and aluminum fins for excellent heat conducting efficiency
Heat-pipe direct contact (HDC) technology
Dual ball bearing PWM fan
Includes spring screw bracket with backplane
Intel LGA1150/1151/1155/1156 compatible
Introduction

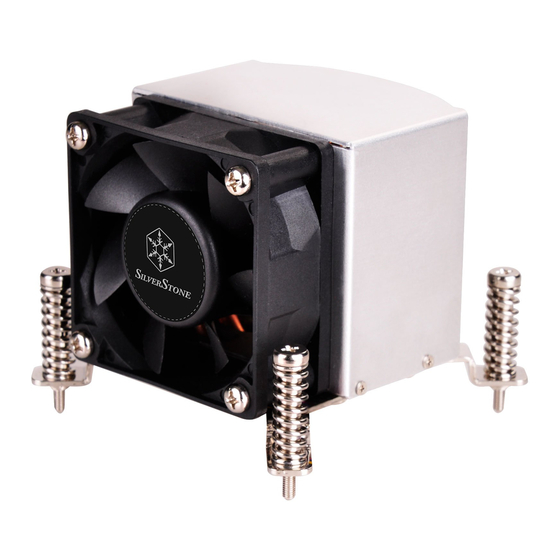

SilverStone AR09-115XS/AR10-115XS is a CPU cooler designed for 2U rackmount
server or small form factor cases. Its features three 6mm thick copper heat pipes
connected to the base using heat-pipe direct contact (HDC) technology and a dual
ball bearing PWM fan. In addition, its heatsink fins have wave-shaped design that
works efficiently with the included air duct to help quickly wick away heat for
exceptional CPU cooling performance.

Specifications

SST-AR09-115XS
Model No.
Material Copper heat pipes
with aluminum fins
Application Intel LGA
1150/1151/1155/1156
Ø6mm heat-pipe x 3
Heat Pipe Type
Cooling System 60mm x 60mm x 25mm fan
Dimension 88mm (W) x 88mm (D)
x 66mm (H) (with Fan)
18.02 ~ 42.5dBA
Noise
Bearing Dual ball bearing
Net Weight 295g (without fan)
Voltage Rating (V) 12V
9.6V
Start Voltage (V)
0.33 ~ 4.83mmH2O
Max air pressure
Air Flow (CFM) 6.7 ~ 27.9CFM
Speed (R.P.M.) 1200 ~ 5000RPM
70,000 hours
Life Expectance (hrs)
2
Apply included heatsink compound
Равномерно нанесите прилагаемую
on you CPU evenly.
термопасту на процессор.
請將散熱膏均勻地塗抹在CPU上。
Tragen Sie die mitgelieferte
Wärmeleitpaste gleichmäßig auf Ihre
CPU auf.
Appliquez le dissipateur de chaleur 请将散热膏均匀地涂抹在CPU上。
composé sur votre CPU de façon
régulière.
Aplique el compuesto conductor
付属のヒートシンクコンパウンドをCPU
térmico incluido en su CPU de forma
にむらなく塗ります。
uniforme.
Applicare in modo uniforme sulla CPU 제공된 방열판 접착제를 CPU에
고르게 바릅니다.
il composto termico per il dissipatore
di calore fornito in dotazione.
AR10-115XS
SST-AR10-115XS
Copper heat pipes
with aluminum fins
Intel LGA
1150/1151/1155/1156
Ø6mm heat-pipe x 3
70mm x 70mm x 15mm fan
88mm (W) x 88mm (D)
x 79mm (H) (with Fan)
18.07 ~ 39.03dBA
Dual ball bearing
320g (without fan)
12V
9.6V
0.08 ~ 4.83mmH2O
4.83 ~ 19.49CFM
500 ~ 4000RPM
70,000 hours
