Wall Plate Multimedia CAT5 Extender
ITEM NO.: YW01A
The full range of wall plate CAT5 multimedia extenders is using CAT5 structuring cable for
easy installation to simplifies and beautifies any audiovisual environment.
YW01A
Wall Plate Component Video & Stereo Audio CAT5 Extender
Send Component Video (YPbPr) and stereo audio over one CAT5 cable.
Wall Plate outer dimension: 70 x 115.
Passive, no power required.
Support up to HDTV (480i /480p/720p/1080i/1080p).
Transmission distance up to 300 meters at 480p/480i.
Transmission distance up to 100 meters at 1080p/1080i.
Perfect for DVD, VCR, DVR, TV, Satellite receivers, monitors, home theatre and other equipments supporting
component video.
Installation:
YW01A
Panel View:
YW01A
FORESIGHT CCTV INC. | 5863 Leslie Street, Unit#713, North York, Ontario,Canada, M2H 1J8 | http://www.foresight-cctv.com | 1-888-GO2-CCTV
Advertisement
Related Manuals for Smart Cabling & Transmission YW01A
Summary of Contents for Smart Cabling & Transmission YW01A
-

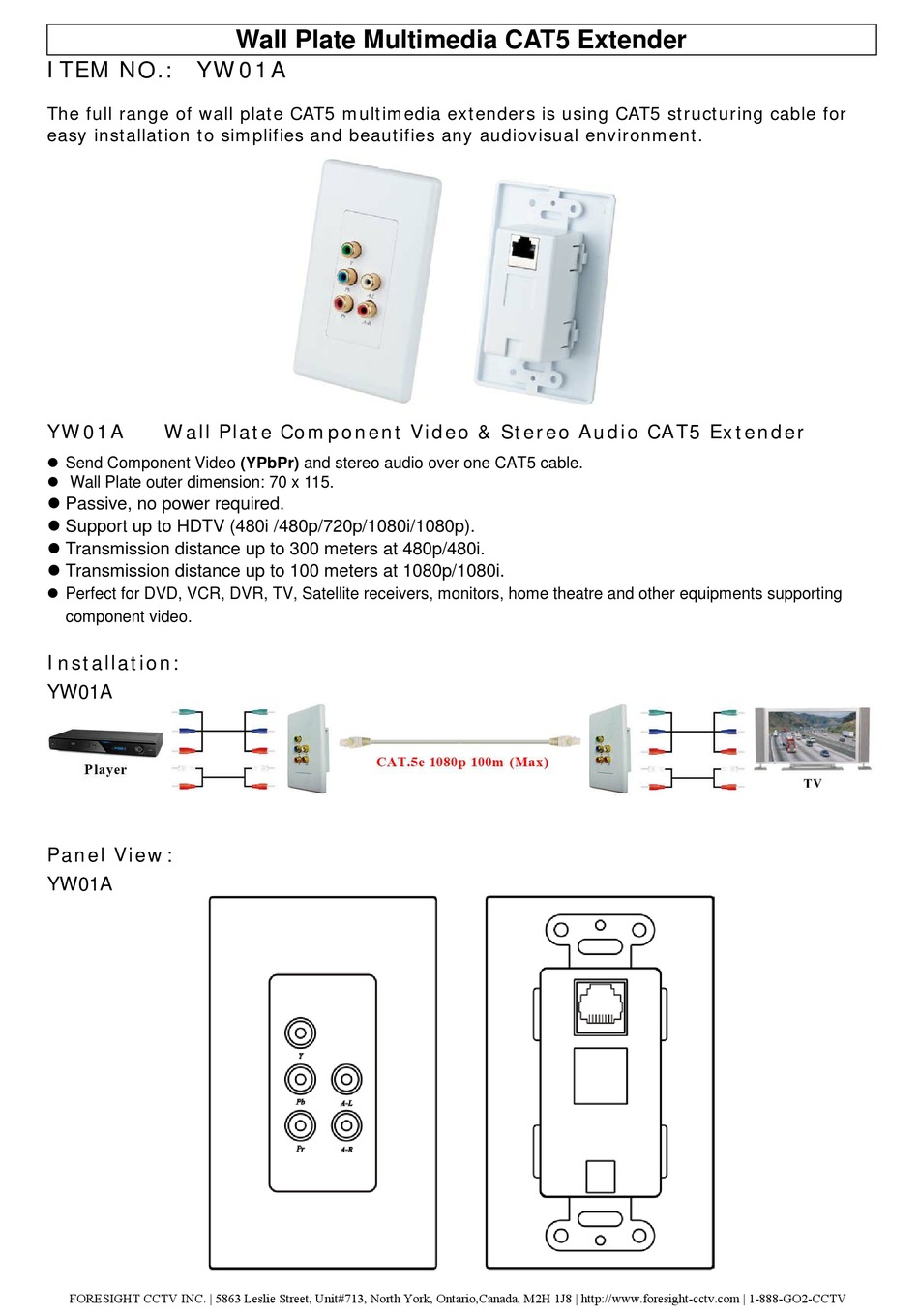

Page 1: Panel View
Wall Plate Multimedia CAT5 Extender ITEM NO.: YW01A The full range of wall plate CAT5 multimedia extenders is using CAT5 structuring cable for easy installation to simplifies and beautifies any audiovisual environment. YW01A Wall Plate Component Video & Stereo Audio CAT5 Extender ... - Page 2 1. This device not Ethernet product, do not connect any Ethernet. 2. The cabling must away from any equipment with electromagnetic wave, i.e.: microwave, radio equipment, high voltage lines. RJ-45 Jack Pin Define YW01A Specification: ITEM NO. YW01A Video Input (RCA female) (Y Pb Pr) Y (75Ω‧1Vp-p)，Pb (75Ω‧0.7Vp-p)，Pr (75Ω‧0.7Vp-p)
