Summary of Contents for Ice IW80

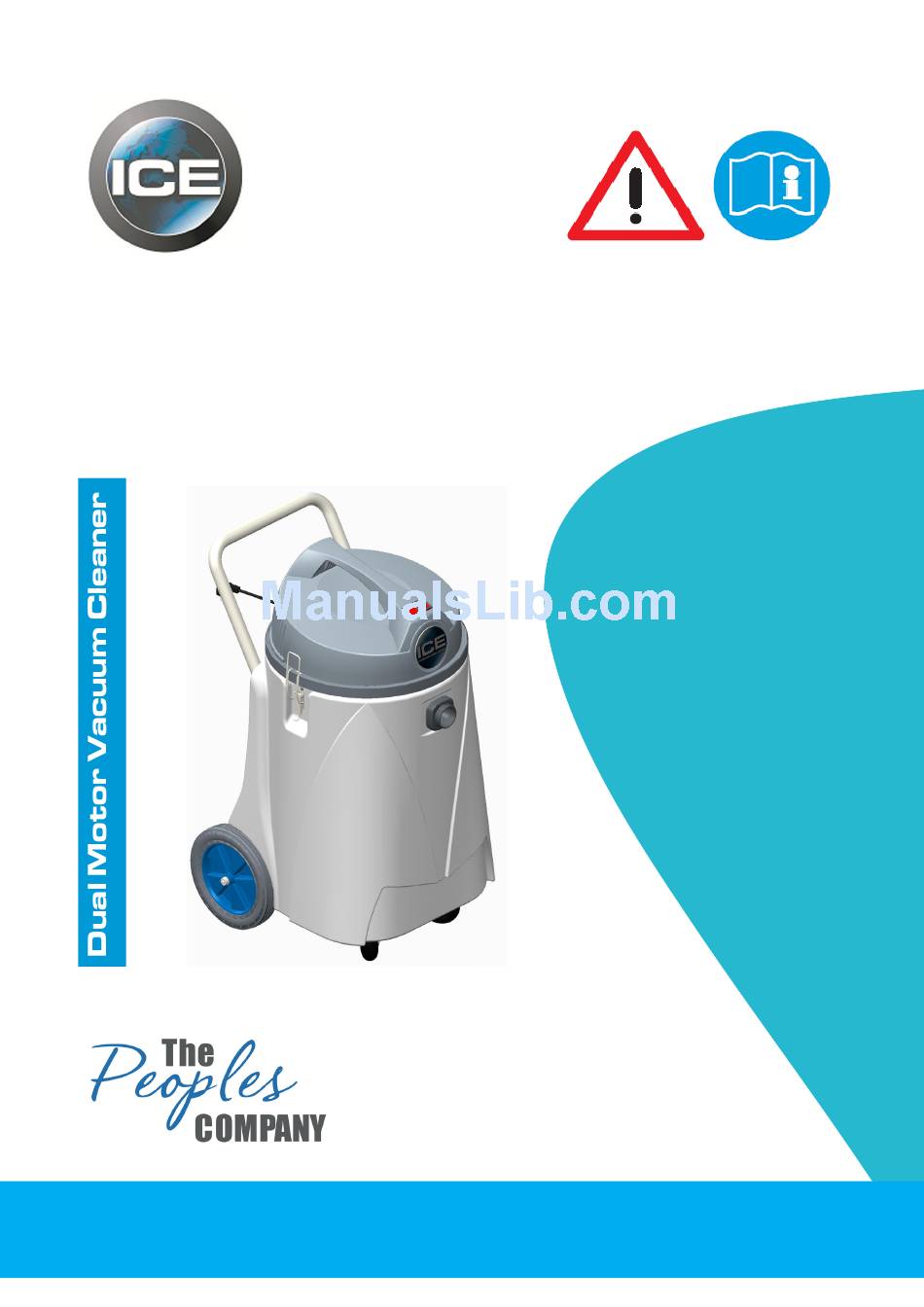

- Page 1 Operator & Parts Manual www.icecompanies.com IW80 2400022 REV.01(12-2013) INTERNATIONAL CLEANING EQUIPMENT...
- Page 2 Customer ID Number Installation Date HOW TO ORDER PARTS Only use ICE Company supplied or equivalent parts. Parts and supplies may be ordered online,by phone, by fax or by mail. 1. Identify the machine model. 2. Identify the machine serial number from the data label.
-
Page 3: Table Of Contents
PARTS LIST........11 ICE IW80... -
Page 4: Safety Precautions
The replacement must be performed only by an authorized person or by our customer service center. Flammable materials can cause explosion or fire. Do not use flammable materials in tanks or pick them up. ICE IW80... -
Page 5: Machine Components
3. On / off switch 4. Vacuum hose 5. Tank 6. Castor 7. Clamp, right 8. Clamp, left 9. 10" wheel 10. Curving tube 11. Straight tube 12. Machine handle 13. Power cord 14. Accessories 15. Drain hose ICE IW80... -
Page 6: Machine Setup & Installation
3) Install the power head back and connect vacuum hose to inlet on the machine body. 4) Attach appropriate accessory tool for the job to be completed. 5) Make sure the switches are in the OFF position, then plug power cord into a grounded outlet. ICE IW80... -
Page 7: Tank Draining
5) Reposit the power head. Replace the ball plug on the drain hose and hang hose back on the rear of the machine. To prevent odors in the tank, remove the power head when machine is not used to allow air to circulate. ICE IW80... -
Page 8: Preventative Maintenance
1) Unplug machine from power source and wrap the cord on the right clamp. 2) Reposit all the accessories. 3) Store in upright position in a dry area. 4) Store with the power head moved if necessary so the tank may breathe. ICE IW80... -
Page 9: Basic Troubleshooting
OPERATOR BASIC TROUBLESHOOTING PROBLEM CAUSE SOLUTION The wiring not connected correctly or Check the wiring or contact ICE Distributor bad wiring No Power Bad vacuum motor Contact ICE Distributor Carbon brushes worn out Contact ICE Distributor Make sure the power head is placed... -
Page 10: Wiring Diagram
OPERATOR WIRING DIAGRAM ICE IW80... -
Page 11: Parts List
PARTS LIST TANK ASSEMBLY ICE IW80... -
Page 12: Tank Assembly
PH SCREW M5×20 2420002 HANDLE 1421510 PLAIN WASHER 5×10×1, SS 1321225 PH SELF-TAPPING SCREW ST4.2×25 1421409 PLAIN WASHER 4×9×0.8, SS 6210111 TUBE CLAMP 2420003 TUBE CLAMP 2310129 TUBE CLAMP 1411612 PLAIN WASHER 6×12×1.6, SS 1021645 HEX HEAD SCREW M6×45, SS ICE IW80... - Page 13 PARTS LIST POWER HEAD ASSEMBLY ICE IW80...
-
Page 14: Power Head Assembly
VACUUM MOTOR 2010103 CUSHION, DOWN 2110112 FLOAT CAGE 2110113 FLOAT 2110116 FILTER 1321316 SELF-TAPPING SCREW ST4.8×16,SS 2430001 CAGE HOUSING 2430014 STOPPING PLATE 2430008 GASKET 2430002 GASKET 2430004 MOTOR HOUSING 2320236 WIRE CLIP 2010114 WIRE CLAMP 1311016 SELF-TAPPING SCREW ST2.9×20 ICE IW80... - Page 15 PARTS LIST ACCESSORIES ICE IW80...
- Page 16 WHEEL 1321213 PH AUTO TAPPING SCREW ST4.2×13 2421017 CLIP, SHORT 2421018 CLIP, LONG 2421015 BRUSH STRIP, BACK 2421014 BRUSH STRIP, FRONT 2421022 RUBBER STRIP, BACK 2421021 RUBBER STRIP, FRONT 2420004 CLOTH BAG 2330131 CLIP, CLOTH BAG 2110118 FILTER ICE IW80...
- Page 17 Service Co.,Ltd with the listing standards and found in conformity with the EC Council Directive of 2006/95/EC. It is possible to use CE marking to demonstrate the conformity with this LVD Directive. Applicant : Guangdong ICE Co., Ltd. Address Xiangshi Road，Liaobu，Dongguan，Guangdong Product...
