Ice ID10 Operator's & Parts Manual

Dry vacuum cleaner

Advertisement

www.icecompanies.com

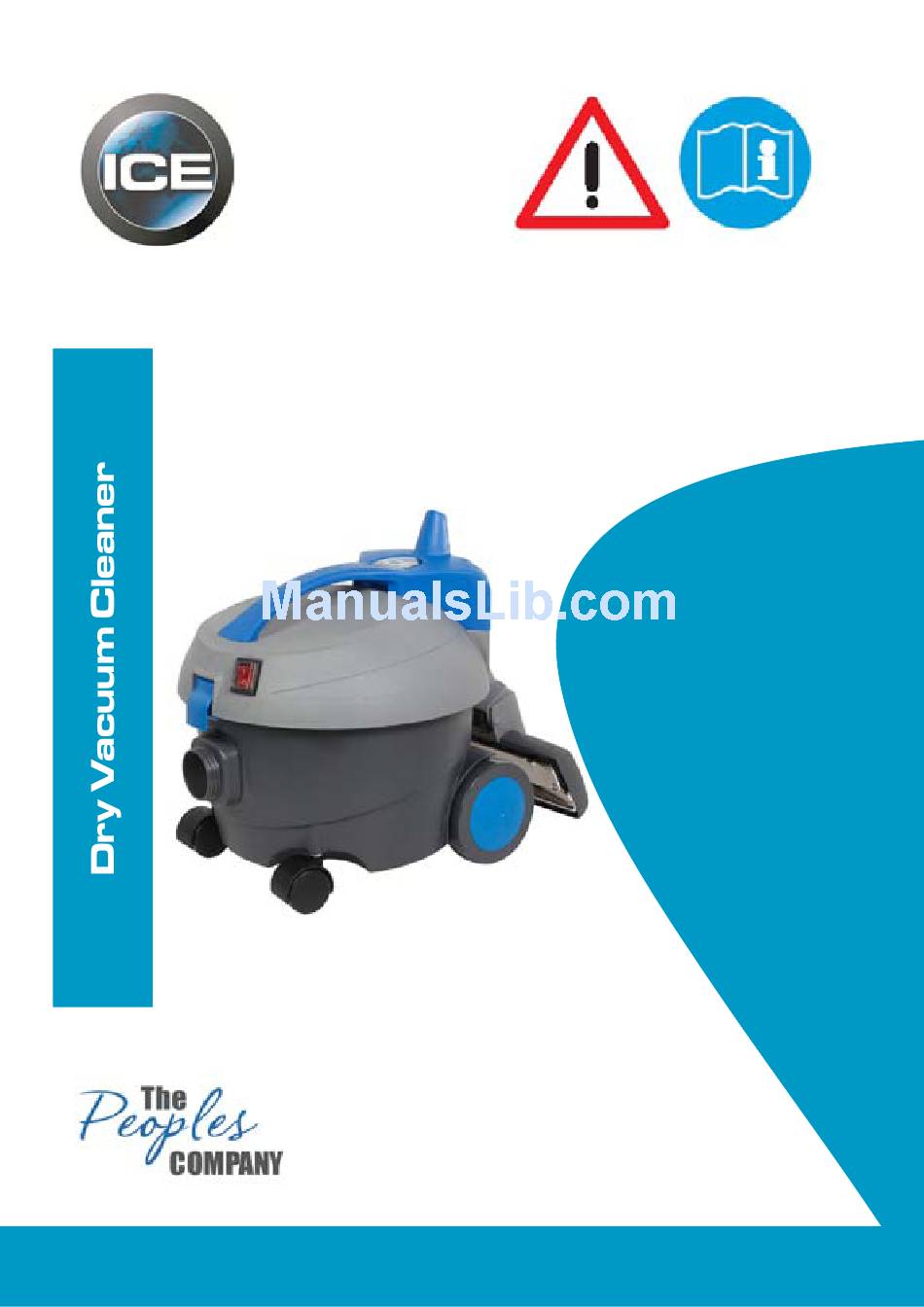

Operator & Parts Manual
ID10
2630403EU
REV.01(01-2014)
INTERNATIONAL CLEANING EQUIPMENT

Advertisement

loading
Need help?

Need help?

Do you have a question about the ID10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ice ID10

  • Page 1 Operator & Parts Manual ID10 2630403EU REV.01(01-2014) INTERNATIONAL CLEANING EQUIPMENT...
  • Page 2: Table Of Contents

    WIRINg DIAgRAM ........10 WEAR&TEAR PARTS ........11 ICE ID10...
  • Page 3: Safety Precaution

    – Use manufacturer supplied or approved replacement parts. To avoid electrical shock,please replace the power cord immediately if any damage is being detected. The replacement must be performed only by an authorized person or by our customer service center. ICE ID10...
  • Page 4: Machine Operaton & Storage

    7) Clean the outside of the machine with a mild cleaner STORAGE 1) Unplug machine from power source and wrap cord on handle. 2) Attach the combination tool to the holder . 3) Store in upright position in a dry area. ICE ID10...
  • Page 5: Machine Components

    OPERATOR MAChINE COMPONENTS 1.Carrying handle 2.On/off switch 3.Snap handle 4.hose intake 5.Caster 6.Wheel 7.Tank 8.Motor cover 9.holder , Combination tool 10. Main cord ICE ID10...
  • Page 6 OPERATOR ICE ID10...
  • Page 7: Parts List

    2610128 Socket 1123305 Nut, Lock, M3 2010103 Bottom Gasket,Motor 2010116 Spring 2010130 Screen,Mounting Cover 2610124 Silencer,Mounting Cover 2630405EU Serial Decal 2610301 Handle 2610303 Bracket 2610304 Spacer 1221518 Washer,Plain,∅5X∅18X2 1221516 Screw,Ph, M5 X 16 2610300 Handle Assey(Optional) 2610302 Cover,Handle ICE ID10...
  • Page 8 OPERATOR ACCESSORIES ICE ID10...
  • Page 9 OPERATOR PARTS LIST PART DESCRIPTION NUMBER REQ'D 2030300 Hose Assy 2030402 Paper Bag(Optional) 2030107 Tube,Sst 2030401 Vacuum Bag,Cloth 2030220 Combination Tool 2030104 Dusting Tool 2030106 Crevice Tool 2030101 Upholstery Tool ICE ID10...
  • Page 10: Specifications

    OPERATOR TEChNICAL DATA Model ID10 Voltage 220V-240V Power 1000W Current 4.5 A Frequency 50-60hz Capacitor(Tank) Capacitor(Dust Bag) Vacuum 2300mmh2O(90") Flow rate 3240L/Min(114CFM) Sound pressure level 59 dB(A) at workstation Weight 5.5kg Length of Power cord hepa Dimensions 39.4cm(L)X36cm(W)X39.6cm(h) ICE ID10...
  • Page 11: Wiring Diagram

    OPERATOR Wiring Diagram ID10 SWITCH BROWN BLACK 220V 50/60HZ BLUE BLACK Motor SINGLE PHASE SUPPLY RVV3X0.75/H05VV-F3X0.75 Power Supply Cord ICE ID10...
  • Page 12: Wear&Tear Parts

    OPERATOR WEAR &TEAR PARTS PART DESCRIPTION NUMBER REQ'D 2020210 Caster,¢50 2620209 Wheel 2030101 Upholstery Tool 2030401 VACUUM BAg,CLOTh 2030220 Combination Tool 2030104 Dusting Tool 2030106 Crevice Tool ICE ID10...
