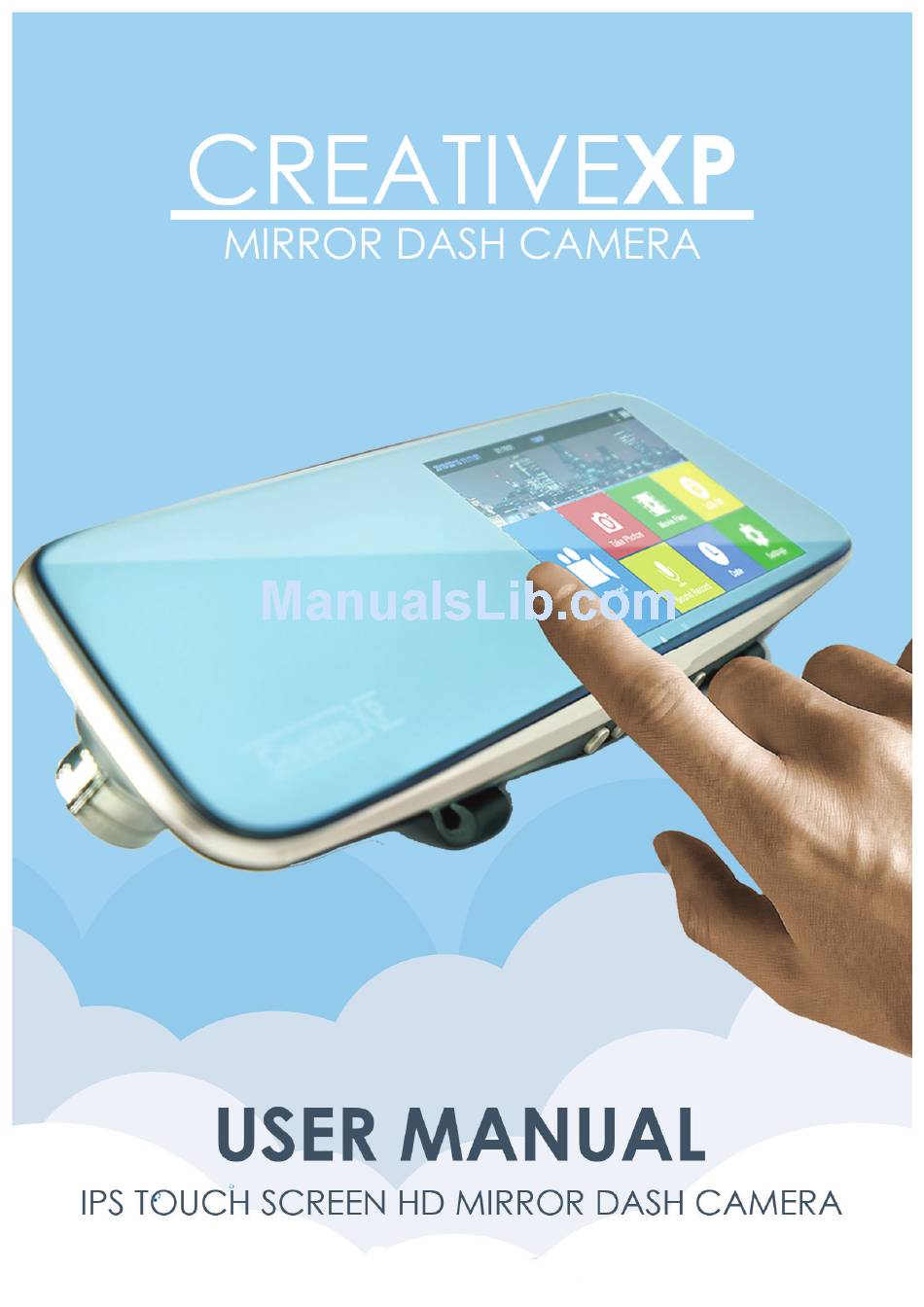

CreativeXP XP PRO1 User Manual

Ips touch screen hd mirror dash camera
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the XP PRO1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CreativeXP XP PRO1

Summary of Contents for CreativeXP XP PRO1

  • Page 10 1. For Our Loyal Users Hello! Thanks for using CretiveXP products, it is our greatest pleasure to serve you and your recognition & support is our motivation! Before using the rearview mirror CAR DVR, please read this guide carefully. In addition, due to production date, different batches, instructions may differ from the actual use of the product.

  • Page 11: Product Specification

    2. Product specification Support multilingual Model XP PRO1 language languages Active Picture Photo pixel 12 million Element 5 million Picture format JPEG Video format Front and back double Screen size 5.0 inch Camera lens lens Shooting First 170 degrees and 140...
  • Page 12 3. Pictures Power supply button Mode switching button Confirmation button Upper direction button Lower direction button Power USB interface Rear view camera jack MicroSD Card Slot GPS Jack (selection) IPS 5” Display Front view lens Horn Reset Button...

  • Page 13: Button Functions

    4. Button functions 1. Power supply button (1) Hold the power button to turn ON/OFF (2) When connected to charger - automatic start (3) Disconnect the charger - 8 seconds automatic shutdown 2. Mode switching button It is used to switch between the available mirror dash cam main functions of the recorder: the video interface, the photo interface, and the file view interface.
  • Page 14 12. Horn An external device for the sound of a recorder, including tone, music, and voice in the video. 13. Reset Button When the recorder needs resetting or crash case, you can press this key with a needle to reset all selected functions. ** In addition, the touchscreen menu shows most of the important features, functions or settings to navigate the menu without pressing buttons.

  • Page 15: Installation Guide

    Enter the settings after the first default adjustment: 1. the red line by the next key to adjust the good red horizontal position and press “OK”; 2. enter the green line set and then press “OK” to enter the height setting (the location of the installation height from the ground) 1.
  • Page 16 【Note】Charger extension line can lay along the edge of the windscreen when wiring or be tucked in. 6. The backup camera is installed in the rear of the vehicle, pay attention to the direction of installation. Wiring can be laid along the vehicle roof or through the car and trunk (probably easier).
