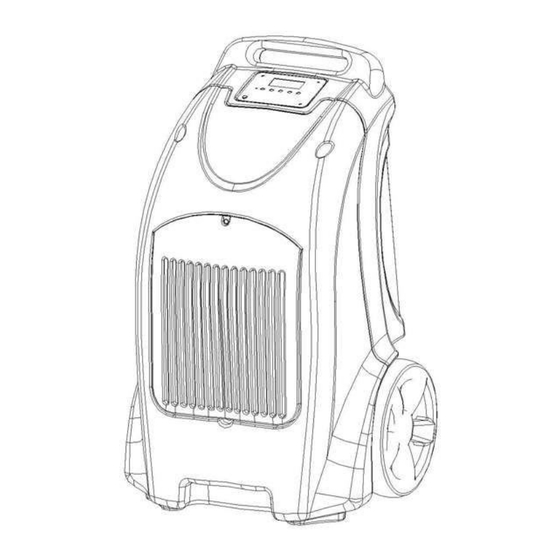

- Page 1 ® QU TR P LGR Dehumidifier Model T250R O ERA TING MANUAL READ AND STUDY MANUAL BEFORE USE...
-
Page 2: Safety Instructions
batement Dehumidifiers are used by professionals for the drying out of wet materials such as carpets, carpet cushions, floors, walls, building contents and more. They reduce the water in enclosed structural environments like buildings or parts of a building by removing water vapor from the air. Safety Instructions Do not allow children to play with or around the operating unit. - Page 3 Create a closed drying chamber The dehumidifier should be operated in an enclosed space in order to create a drying chamber. Close all doors, windows or areas that open to the outside to maximize the unit’s water removal efficiency. Inside the drying chamber, air should circulate freely.
- Page 4 Operating Your Dehumidifier lace the dehumidifier in upright position If the dehumidifier has been laid down in a horizontal position for any time over a few minutes, you must set it upright (vertical) for 30 minutes before starting. Connect the drainage system You can find the hose wrapped around the back of the machine.
- Page 5 How to Use the Touch ad Control anel Touch pad control panel Includes: one LCD Display, one Indicator Light (Red/Green) and five touch pad keys for dehumidifier operations. LCD Display: DEHUMIDIFIER ON. URGE ON. The pump is on and pumping water out of the condensate reservoir.
- Page 6 Touch ad Keys: ON/OFF. Press the ON/OFF key to turn the machine on or off. When the machine is turned on, it comes on in ST NDBY MODE. The red indicator light and LCD light up. LCD displays the “TIMER” CLOCK icon. Four time digits flash, which prompts the operator to either set the “TIMER”...
- Page 7 Touch ad Keys (Cont.): URGE. Press the PURGE key to empty water from the pump reservoir. During normal operation, the pump purges automatically whenever the reservoir is full. The display will show the PURGE ON icon. PURGE PUMP M NU LLY BEFORE TR NSPORT TION: Stop dehumidification using the ST RT/STOP key,...
-
Page 8: Maintenance
Error Messages Message Icon Description Er01 “ UM Problem with pump or the drain tube is ON” kinked. flashing Er02 Check coil temperature sensor at the side of coil and the sensor cable. Check ambient temperature sensor in Er03 the front of the coil and the sensor cable. Note:. -
Page 9: Warranty
eriodic Inspections (as needed) Make sure the unit is unplugged. Remove housing, in order to locate the coil, pump and drain hose. Check coil and clean visible dirty Vacuum both sides of the coils until clean. Check pump Inspect and clean the pump system regularly to maintain effective operation. -
Page 10: Declaration Of Conformity
Electromagnetic Compatibility: emission requirement. LVD : EN 60335 - 1: 2002+A1:2004+A11:2004+A12:2006+A2:2006 Safety of household and similar electrical appliance General requirements. EN 60335 - 2-40: 2003+A11:2004+A12:2005+A1:2006 Particular requirements for electric heat pumps, air conditioners and dehumidifiers. Abatement Technologies Design and Development... -
Page 11: Specifications
21.65 in / 550mm Depth 17.91 in / 455mm Use Weight 100 lbs / 45.5kg Specifications are subject to change without notice. Some values are approximate. Abatement Technologies Tel: 800 – 634 – 9091 Fax: 800 – 358 – 2394 iaqinfo@abatement.com...
