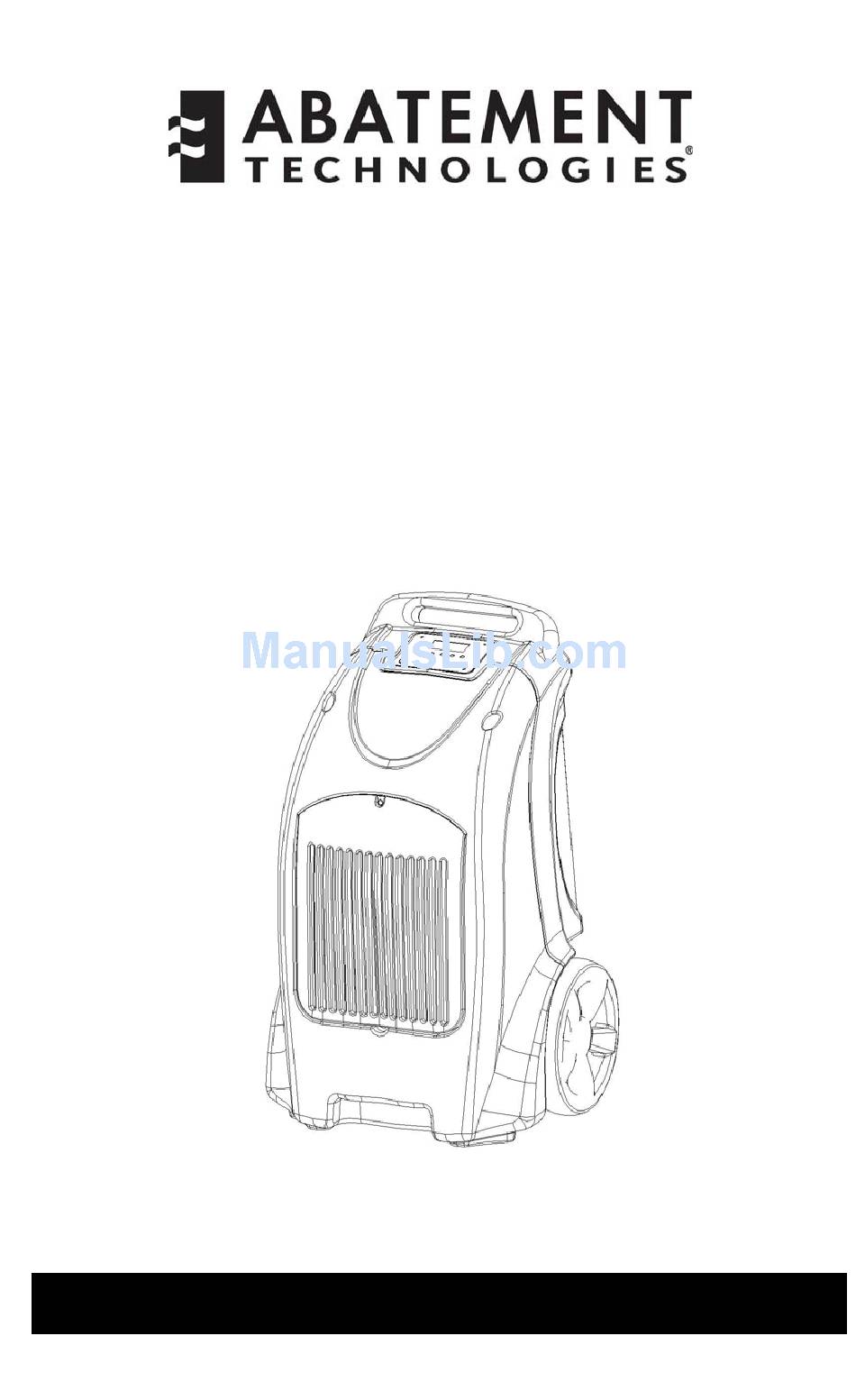

- Page 1 ® AQUATRAP LGR Dehumidifier Model AT250R OPERA TING MANUAL READ AND STUDY MANUAL BEFORE USE...
-
Page 2: Safety Instructions
Abatement Dehumidifiers are used by professionals for the drying out of wet materials such as carpets, carpet cushions, floors, walls, building contents and more. They reduce the water in enclosed structural environments like buildings or parts of a building by removing water vapor from the air. - Page 3 Create a closed drying chamber The dehumidifier should be operated in an enclosed space in order to create a drying chamber. Close all doors, windows or areas that open to the outside to maximize the unit’s water removal efficiency. Inside the drying chamber, air should circulate freely.
-
Page 4: Operating Your Dehumidifier
Operating Your Dehumidifier Place the dehumidifier in upright position If the dehumidifier has been laid down in a horizontal position for any time over a few minutes, you must set it upright (vertical) for 30 minutes before starting. Connect the drainage system You can find the hose wrapped around the back of the machine. -
Page 5: Lcd Display
How to Use the Touch Pad Control Panel Touch pad control panel Includes: • one LCD Display, • one Indicator Light (Red/Green) and • five touch pad keys for dehumidifier operations. LCD Display: DEHUMIDIFIER ON. PURGE ON. The pump is on and pumping water out of the condensate reservoir. - Page 6 Touch Pad Keys: ON/OFF. Press the ON/OFF key to turn the machine on or off. When the machine is turned on, it comes on in STANDBY MODE. The red indicator light and LCD light up. LCD displays the “TIMER” CLOCK icon. Four time digits flash, which prompts the operator to either set the “TIMER”...
- Page 7 Touch Pad Keys (Cont.): PURGE. Press the PURGE key to empty water from the pump reservoir. During normal operation, the pump purges automatically whenever the reservoir is full. The display will show the PURGE ON icon. PURGE PUMP MANUALLY BEFORE TRANSPORTATION: ...
-
Page 8: Maintenance
The machine will revert to STANDBY MODE but will still be on unless manually turned off. Contact Abatement Technologies for service. When Er03 error message displays, the dehumidification cycle is still on. Contact Abatement Technologies for service. Indication Light: Status Colors Description Machine is off. -
Page 9: Warranty
Look for obstructions. Disconnect and clear any debris present. Warranty Abatement warrants to the original purchaser that if, within a period of 12 months from the date of purchase, this equipment is found to be defective either in original materials or... -
Page 10: Declaration Of Conformity
Electromagnetic Compatibility: emission requirement. LVD : EN 60335 - 1: 2002+A1:2004+A11:2004+A12:2006+A2:2006 Safety of household and similar electrical appliance General requirements. EN 60335 - 2-40: 2003+A11:2004+A12:2005+A1:2006 Particular requirements for electric heat pumps, air conditioners and dehumidifiers. Abatement Technologies Design and Development... -
Page 11: Specifications
21.65 in / 550mm Depth 17.91 in / 455mm Use Weight 100 lbs / 45.5kg Specifications are subject to change without notice. Some values are approximate. Abatement Technologies Tel: 800 – 634 – 9091 Fax: 800 – 358 – 2394 iaqinfo@abatement.com...
