Troubleshooting

General
Radio
The power does not
The audio is weak or
come on.
has poor quality.
• Connect the AC power adaptor
• Replace all the batteries with new
securely.
ones if they are weak.
• Make sure the batteries are inserted
• Move the player away from the
correctly.
TV.
• Replace all the batteries with new
The picture of your TV
ones if they are weak.
becomes unstable.
There is no audio.
• If you are listening to an FM
• Unplug the headphones when
program near the TV with an
listening through speakers.
indoor antenna, move the player
Noise is heard.
away from the TV.
• Someone is using a portable
After trying the above remedies, if
telephone or other equipment that
you still have problems, unplug the
emits radio waves near the player.
tMove the portable telephone,
AC power adaptor and remove all
the batteries. After all the
etc., away from the player.
indications in the display
disappear, plug the AC power
CD Player
adaptor and insert the batteries
The CD does not play
again. If the problem persists,
please consult your nearest Sony
or "– –" lights in the
dealer.
display even when a
CD is in place.
• Place the CD with the label surface
facing you.
• Clean the CD.
• Take out the CD and leave the CD
compartment open for about an
hour to dry moisture condensation.
• The CD-R/CD-RW was not
finalized. Finalize the CD-R/CD-
RW with the recording device.
• There is a problem with the quality
of the CD-R/CD-RW, recording
device or application software.
The sound drops out.
• Reduce the volume.
• Clean the CD, or replace it if the
CD is badly damaged.
• Place the player in a location free
from vibration.
• Clean the lens with a commercially
available blower.
• The sound may drop out or noise
may be heard when using poor
quality CD-Rs/CD-RWs or if there
is a problem with the recording
device or application software.
Lens
Location of controls
i (headphones)
TUNING
MEGA BASS
FUNCTION
VOL*
OPERATE
PLAY MODE
OPR/BATT
PUSH CLOSE
Display
**
DC IN 6V
* There is a tactile dot beside VOL to show the direction
to turn up the volume.
** The u button has a tactile dot.
To listen through headphones
Connect the headphones to the i (headphones) jack.
To reinforce the bass sound
Set MEGA BASS to "ON".
To return to normal sound, set the switch to "OFF".
Precautions
On safety
On operation
• As the laser beam used in the CD
• If the player is brought directly
player section is harmful to the
from a cold to a warm location, or
eyes, do not attempt to disassemble
is placed in a very damp room,
the casing. Refer servicing to
moisture may condense on the
qualified personnel only.
lenses inside the CD player section.
• Should any solid object or liquid
Should this occur, the player will
fall into the player, unplug the
not operate properly. In this case,
player, and have it checked by
remove the CD and wait about an
qualified personnel before
hour for the moisture to evaporate.
operating it any further.
• Discs with non-standard shapes
If you have any questions or
(e.g., heart, square, star) cannot be
problems concerning your player,
played on this player. Attempting
please consult your nearest Sony
to do so may damage the player.
dealer.
Do not use such discs.
Notes on CDs
Cleaning the cabinet
• Before playing,
• Clean the cabinet, panel and
clean the CD
controls with a soft cloth slightly
with a cleaning
moistened with a mild detergent
cloth. Wipe the
solution. Do not use any type of
CD from the
abrasive pad, scouring powder, or
center out.
solvent, such as alcohol or benzine.
• Do not use solvents such as
On power sources
benzine, thinner, commercially
available cleaners or anti-static
• For AC
spray intended for vinyl LPs.
operation, use
• Do not expose the CD to direct
the supplied
sunlight or heat sources such as hot
AC power
Polarity of
air ducts, nor leave it in a car
adaptor; do not
the plug
parked in direct sunlight as there
use any other type.
can be a considerable rise in
• The player is not disconnected
temperature inside the car.
from the AC power source (mains)
• Do not stick paper or sticker on the
as long as it is connected to the
CD, nor scratch the surface of the
wall outlet, even if the player itself
CD.
has been turned off.
• After playing, store the CD in its
• For battery operation, use four R6
case.
(size AA) batteries.
If there is a scratch, dirt or
• When the batteries are not to be
fingerprints on the CD, it may
used, remove them to avoid
cause tracking error.
damage that can be caused by
battery leakage or corrosion.
• The nameplate indicating operating
voltage, power consumption, etc. is
located at the bottom.
On placement
• Do not leave the player in a
location near heat sources, or in a
place subject to direct sunlight,
excessive dust or mechanical
shock.
• Do not place the player on an
inclined or unstable place.
• Do not place anything within 10
mm of the side of the cabinet. The
ventilation holes must be
unobstructed for the player to
operate properly and prolong the
life of its components.
• If the player is left in a car parked
in the sun, be sure to choose a
location in the car where the player
will not be subjected to the direct
rays of the sun.
• Since a strong magnet is used for
the speakers, keep personal credit
cards using magnetic coding or
spring-wound watches away from
the player to prevent possible
damage from the magnet.
Choosing Power
Sources
Connecting the AC power
adaptor
1
2
to DC IN
to the
6V
mains
AC power
adaptor
(supplied)
To adjust the voltage (Tourist model
only)
Before using the AC power adaptor, set it to the
voltage of the local AC power supply, "110 V - 120 V"
or "220 V - 240 V".
Use a screw driver to
turn the rotary switch.
Using the player on batteries
Insert four R6 (size AA) batteries (not supplied) into
the battery compartment.
To release the battery
Press the # side of the battery and then take out the
battery.
If the battery compartment lid comes
off
Insert the right corner of the lid and then insert the left
corner aligning it to the groove of the battery
compartment.
Tip (Tourist model only)
Use the supplied AC plug adaptor if the plug of the AC
power adaptor does not match your outlet.
Notes
• To use the player on batteries, disconnect the AC power
adaptor from the player. The player does not operate on
batteries as long as the AC power adaptor is connected.
• Replace the batteries when the OPR/BATT indicator
dims or when the player stops operating. Replace all
batteries with new ones.
• The voltage selector of the AC power adaptor is not the
switch to turn on/off the power (Tourist model only).

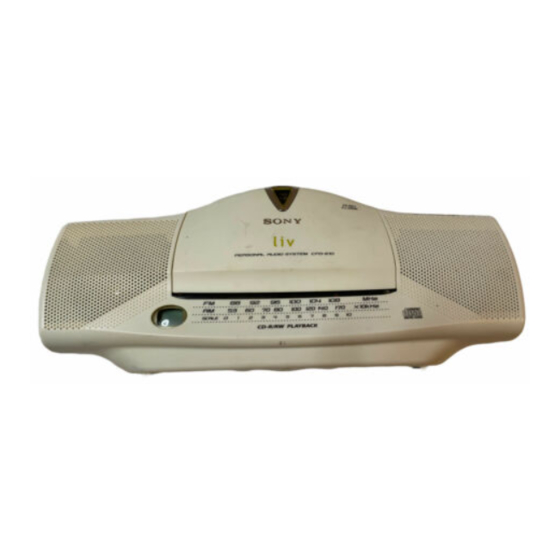

Personal
Audio
System
Operating Instructions
Manual de instrucciones
(en la cara inversa)
CFD-E10
Sony Corporation ©2002
3-234-994-24(1)

Specifications

CD player section
System
Compact disc digital audio system
Laser diode properties
Material: GaAlAs
Wave length: 780 nm
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a
distance of about 200 mm from the
objective lens surface on the optical
pick-up block with 7 mm aperture.)
Spindle speed
200 r/min (rpm) to 500 r/min (rpm)
(CLV)
Number of channels
2
Frequency response
20 - 20 000 Hz +1/–2 dB
Wow and flutter
Below measurable limit

Playing a CD

1
Turn on the player.
2
Press Z to open the CD compartment.
,
3
Place a CD in the CD compartment.
12 cm CD
8 cm CD
Push down until it
Insert aligning the
clicks into place.
center part.
With the label side facing you
4
Press PUSH CLOSE to close the the lid
of the CD compartment.
5
Set FUNCTION to "CD".
Display
Total track number
6
Press u.
The player plays all the tracks once.
Track number
WARNING
English
Do not install the appliance in a
confined space, such as a
WARNING
bookcase or built-in cabinet.
To prevent fire or
To prevent fire or shock hazard,
do not place objects filled with
shock hazard, do not
liquids, such as vases, on the
expose the player to
appliance.
rain or moisture.
To avoid electrical
shock, do not open
the cabinet. Refer
servicing to qualified
personnel only.
Radio section
General
Frequency range
Speaker
Full range: 5.7 cm dia., 2.7 Ω, cone
FM: Italy and tourist model:
87.5 - 108 MHz/Other countries:
type (2)
87.5 - 107 MHz
Outputs
AM: Italy: 526.5 - 1 606.5 kHz/
Headphones jack (stereo minijack)
Tourist model: 530 - 1 710 kHz/
For 8 - 32 Ω impedance
Other countries: 530 - 1 611 kHz
headphones
IF
Maximum power output
FM: 10.7 MHz
2 W
AM: 455 kHz
Power requirements
Aerials
DC IN 6 V jack accepts: Supplied AC
FM: Telescopic aerial
power adaptor for use with:
AM: Built-in ferrite bar aerial
– 110 - 120 V, 220 - 240 V AC
selectable, 50/60 Hz (Tourist model)
– 230 V AC, 50 Hz (Other models)
6 V DC, 4 R6 (size AA) batteries
Power consumption
DC 13 W
Battery life
When playing a CD:
Sony R6P: approx. 2 hours
Sony alkaline LR6: approx 4 hours
Dimensions
Approx. 315 × 131 × 70 mm (w/h/d)
× 5
× 2
5
1
(12
8
4
projecting parts)
Mass
Approx. 920 g (2 lb.) (incl. batteries)
Supplied accessory
AC power adaptor (1)
Design and specifications are subject to
change without notice.
To
Do this
adjust the volume
Slide VOL.
stop playback
Press x.
pause playback
Press u.
Press the button again to resume
play after pause.
go to the next track
Press >.
go back to the
Press ..
previous track
locate a point while
Press > (forward) or .
listening to the sound
(backward) while playing until
you find the point.
remove the CD
Press x, then Z.
turn off the player
Set OPERATE to "OFF".
To remove the CD
Be careful not to touch the
playing side (the side with
no label).
Selecting play mode
1
Set FUNCTION to "CD".
2
Press PLAY MODE until the play mode you want
appears in the display. Then proceed as follows:
To
Selected play mode and
operation you need
repeat a single track
"REP 1": Select the track you
want to repeat by pressing >
or . and then press u.
repeat all tracks
"REP ": Press u.
shuffle play
"SHUF ": Press u.
repeat tracks in
"SHUF REP ": Press u.
random order
To cancel selected play mode
Press PLAY MODE until the selected play mode
disappears from the display.
About CD-Rs/CD-RWs
This CD player can play CD-Rs/CD-RWs recorded in
the CD-DA format*, but playback capability may vary
depending on the quality of the disc and the condition
of the recording device.
* CD-DA is the abbreviation for Compact Disc Digital
Audio. It is a recording standard used for Audio CDs.
Optional accessories
Sony MDR headphone series
7
inches) (incl.
8

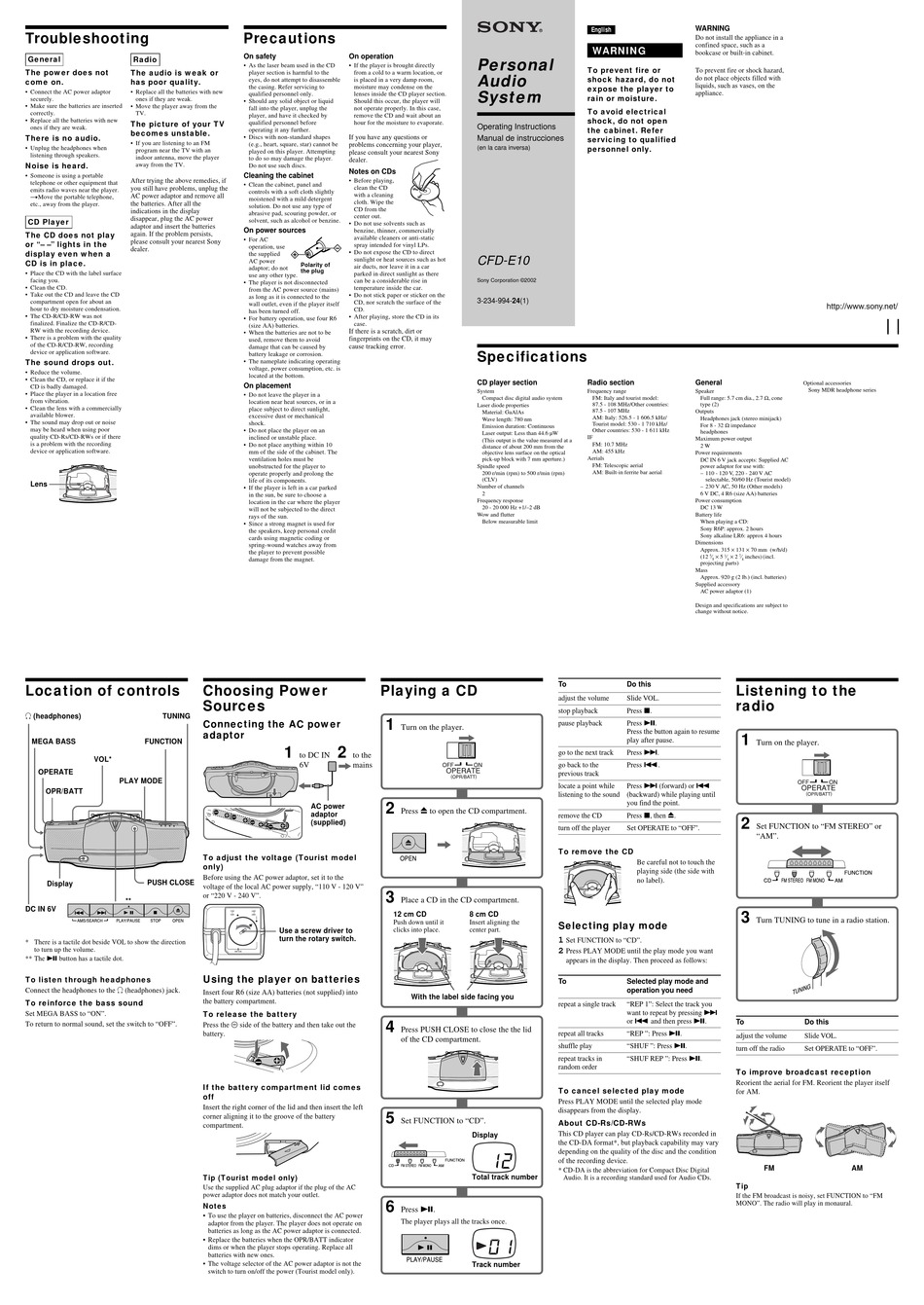

Listening to the
radio
1
Turn on the player.
2
Set FUNCTION to "FM STEREO" or
"AM".
3
Turn TUNING to tune in a radio station.
To
Do this
adjust the volume
Slide VOL.
turn off the radio
Set OPERATE to "OFF".
To improve broadcast reception
Reorient the aerial for FM. Reorient the player itself
for AM.
FM
AM
Tip
If the FM broadcast is noisy, set FUNCTION to "FM
MONO". The radio will play in monaural.

Advertisement

Table of Contents

   Related Manuals for Sony CFD-E10

   Summary of Contents for Sony CFD-E10

  • Page 1: Troubleshooting

    When playing a CD: • Since a strong magnet is used for Sony R6P: approx. 2 hours the speakers, keep personal credit Sony alkaline LR6: approx 4 hours cards using magnetic coding or Dimensions spring-wound watches away from Approx. 315 × 131 × 70 mm (w/h/d) the player to prevent possible ×...
  • Page 2 MHz/Otros países: 87,5 - 107 MHz pistas. muy dañado. Serie de auriculares MDR de Sony • La placa donde se indica el voltaje Propiedades del diodo láser AM: Italia: 526,5 - 1 606,5 kHz/ Salidas • Coloque el reproductor en un lugar...

Comments to this Manuals

Symbols: 0
Latest comments:
