N-GXE-POE-EPS-KIT
PoE NIC External Power Supply Kit

Quick Start Guide

Custom power solution
•
Powers the N-GXE-POE-xx-01
•
™
Fits in the HP t730 Thin Client
•

Introduction

The Transition Networks N-GXE-POE-EPS-KIT is a custom power solution for powering the PoE NIC externally in
™
situations where an HP
requires 32W for PoE load, 42W for PoE+ and fits in the HP

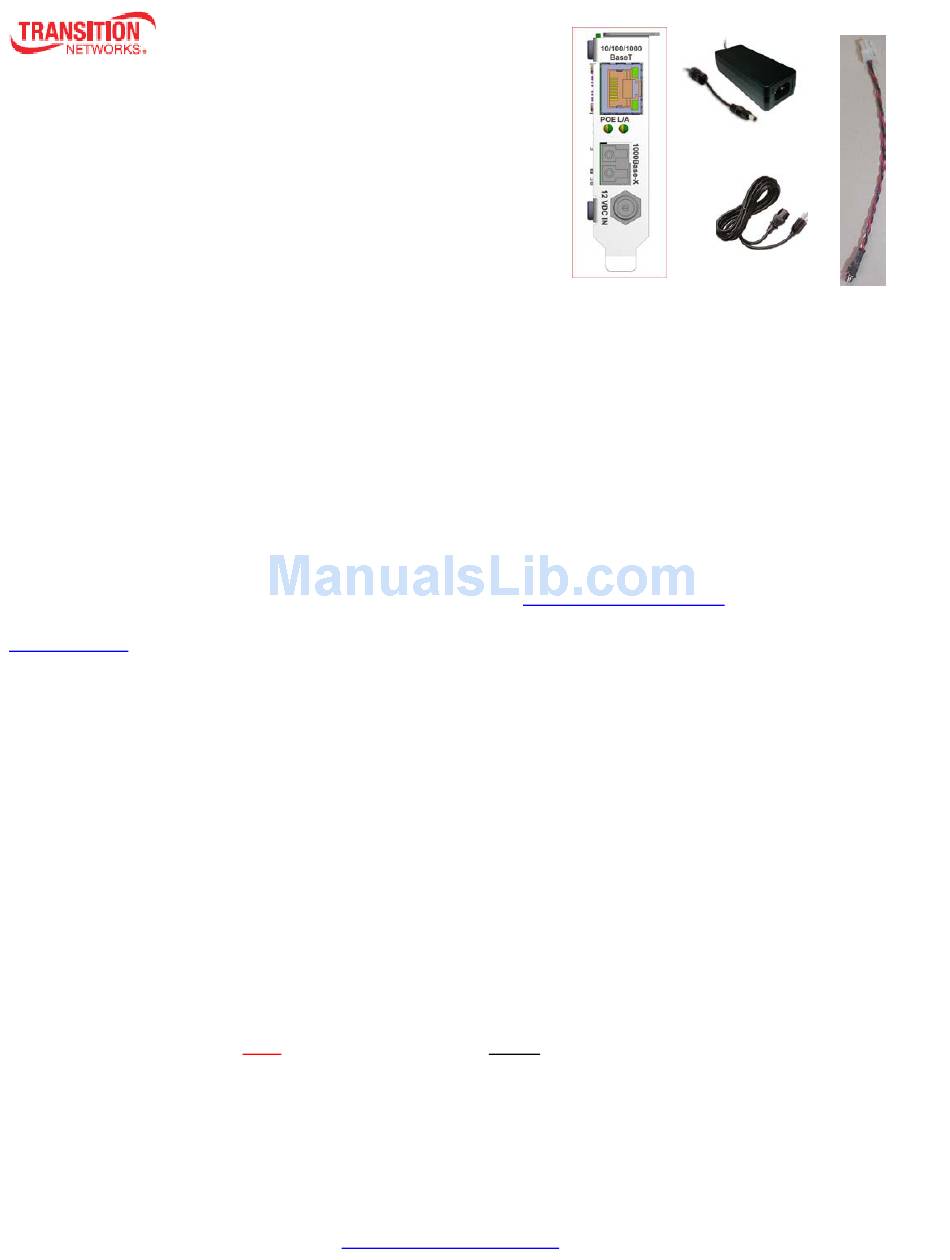

The N-GXE-POE-EPS-KIT includes one 40W Power Adapter, one Low-profile NIC Mounting Bracket for Power Cable
Connector Access, one Cable Assembly, and one Power Cord.
See the N-GXE-POE-EPS-KIT Install Guide for Kit Contents, Thin Client description, Power Supply specs and notes,
Mounting bracket, Cable assembly, installation instructions, pre-installation checklist, installation procedure, operation,
status LEDs, troubleshooting, Compliance information, and all related Warnings, Cautions, and Notes.

Related Information

A full N-GXE-POE-EPS-KIT Install Guide is available on line.
For Transition Networks Drivers, Firmware, and Manuals go to the
For Transition Networks Application Notes, Brochures, Case Studies, Data Sheets, Specifications, Webinars, etc. go to the
Support Library (no registration required).
Before performing upgrades be sure to carefully read all of the applicable instructions, cautions, and warnings in the HP
t730 Thin Client Troubleshooting Guide.

40W Power Supply

The external switching power supply is a highly reliable 40W desktop style single-output green adapter. It is a class I
power unit with FG, equipped with a standard IEC320-C14 AC inlet, and adopting the input range from 90 VAC to 264
VAC. The design allows the power supply to save the energy when it is either under operating mode or standby mode.
It comes in a flame retardant plastic case and is certified for the international safety regulations.

Low-profile NIC Mounting Bracket for Power Connector Access

The Low-profile NIC Mounting Bracket for Power Connector Access is designed to replace the original low profile NIC
bracket on the N-GXE-POE-xx-01. It allows power to be provided to the NIC.

Cable Assembly

The Cable Assembly is used to power the PoE NIC externally in situations where an HP t730 Thin Client cannot supply
adequate PoE or PoE+ power. Note: the NIC must be installed before the power connector is connected.

Power Cord

The supplied Power Cord is a NEMA 5-15P to IEC320 C13. It provides AC power to the NIC at the 12VDC IN connector.
33695 Rev. A
t730 Thin Client cannot supply adequate PoE or PoE+ power. The PoE NIC (N-GXE-POE-xx-01)
https://www.transition.com
™
t730 Thin Client.
Product Support webpage (no logon required).
