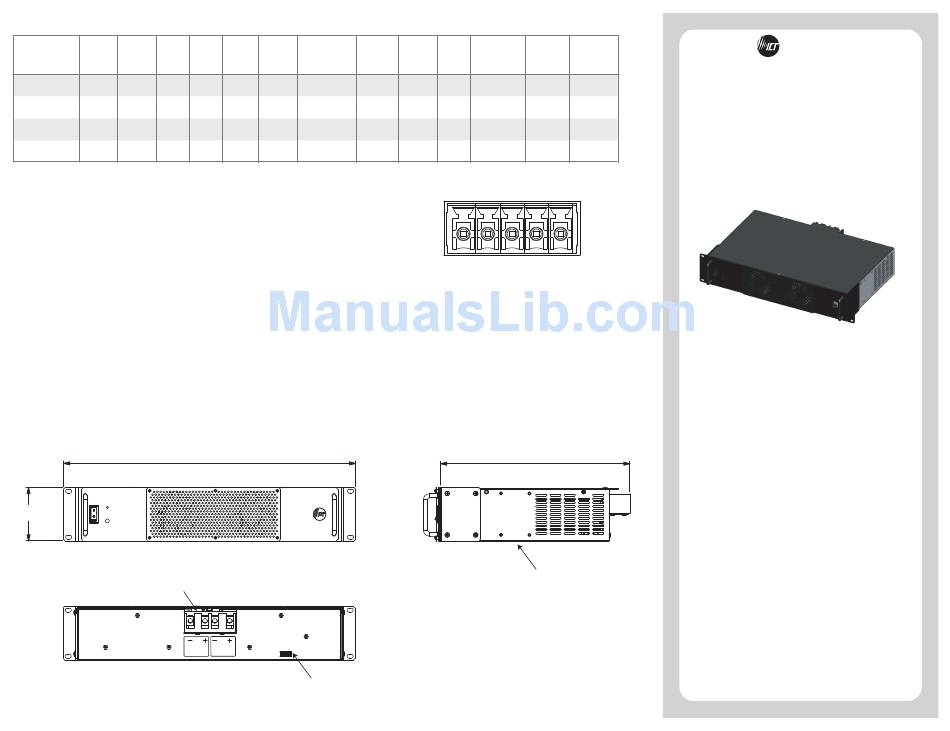

ICT ICT206012-70AI2 Instruction Manual

SPECIFICATIONS
Model Input Output Output
Number Voltage Voltage Adjust
Range (Typ)
13.8 VDC 12.5 -
ICT206012-70AI2
20-60 VDC 64.0 Amps 70.0 Amps
+/- 300 mV 14.5 VDC
13.8 VDC 12.5 -
ICT206012-100AI2
20-60 VDC 96.0 Amps 105.0 Amps
+/- 300 mV 14.5 VDC
27.6 VDC 25.0 -
ICT206024-35AI2
20-60 VDC 32.0 Amps 35.0 Amps
+/- 300 mV 29.0 VDC
27.6 VDC 25.0 -
ICT206024-50AI2
20-60 VDC 48.0 Amps 50.0 Amps
+/- 300 mV 29.0 VDC
REMOTE / STATUS CONNECTOR
REMOTE STATUS (COMMON, NC, NO)
The Common, NC, and NO contacts of a small Form C relay are
provided for alarm monitoring. A voltage comparator monitors the
output voltage of the system and drives the relay. When the output
voltage is good the NO pin is connected to the COMMON pin. The
relay is rated 1A / 30VDC.
REMOTE SHUTDOWN (SD+, SD-)
When 5-15Vdc is applied between these two pins, the
output of the unit is disabled. Please observe polarity.
OUTLINE DRAWING
DIMENSIONS IN INCHES
19.00
3.47
DC CONNECTOR
WIRE SIZES: #2 - #14 CU/ #8 AL
OUTPUT
Output Output Current Under / Over Line
Current Current Limiting Voltage Shutdown Regulation
(Cont.) (Peak)
74.0 Amps < 20 VDC /
0.5%
+/- 5% > 60 VDC
110.0 Amps < 20 VDC /
0.5%
+/- 5% > 60 VDC
37.0 Amps < 20 VDC /
0.5%
+/- 5% > 60 VDC
52.0 Amps < 20 VDC /
0.5%
+/- 5% > 60 VDC
INPUT
REMOTE / STATUS CONNECTOR
Load Output Efficiency Input Operating
Regulation Ripple (Typ @ 48V In) Current Temperature
(Max) @ Vin(min)
3.0% 20mV RMS 90% 55 Amps -20°C to +40°C
3.0% 20mV RMS 90% 78 Amps -20°C to +40°C
3.0% 20mV RMS 90% 55 Amps -20°C to +40°C
3.0% 20mV RMS 90% 78 Amps -20°C to +40°C
1 2 3 4 5
PIN 1: COMMON
PIN 2: NC
PIN 3: NO
PIN 4: SD +
PIN 5: SD -
12.33
ALTERNATE RACK EAR POSITION
Range
DC SITE CONVERTERS
INSTRUCTION MANUAL
INNOVATIVE CIRCUIT TECHNOLOGY LTD.
855-334-001
THEPOWEROFRELIABILITY
ICT
